Pass Iso 9001 Metal Fine Mesh Screen High Durable Mining Mineral Separeting
Mamba Mining Screen Mesh
Mamba Screen Mesh MFG Company, which is founded in 1989, has been devoted into wire cloth and screen media production for 33 years. The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.
Mamba Screen Mesh MFG Company has a set of strict procedures to control the quality from materials to final products shipping. Our woven wire cloth has been widely accepted by clients from North America, Australia, Europe and Middle East for its high durability, precision and impact resistance. 90% of our
products are used in international markets because they can be perfectly matched with various kinds of vibrating screens including international brands. For all of mining, aggregate, asphalt mixing and road construction industries, every cent saved from high quality production, fast parts changes and a longer part wear life will be eventually converted into hard profits and real cost reduction of companies. As the most important part of vibrating screens, a set of high-quality wire cloth with high accuracy, long wear life and high anti-impact is the foundation of production quality assurance in all industries above.
Mining Screen Mesh Material:
highly abrasion-resistant spring steel wire or stainless spring steel wire.
| No | Grade | Chemical Composition | ||
| C | Si | Mn | ||
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 | ||
| 3 | 55 | 0.52-0.60 | ||
| 4 | 60 | 0.57-0.65 | ||
| 5 | 65 | 0.62-0.70 | ||
| 6 | 70 | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition | |||
| C | Ni | Mn | Cr | ||
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Mining Screen Mesh Parameters:
| Steel Wire Cloth | |
| Wire Diameter | 0.50mm-19.05mm |
| Weaving Type | Double Crimp,Lock Crimp,Flat Top,Inter Crimp |
| Aperture | 1.00mm-152.00mm |
| Opening Type | Square or Slot |
| Max width | 2500.00mm |

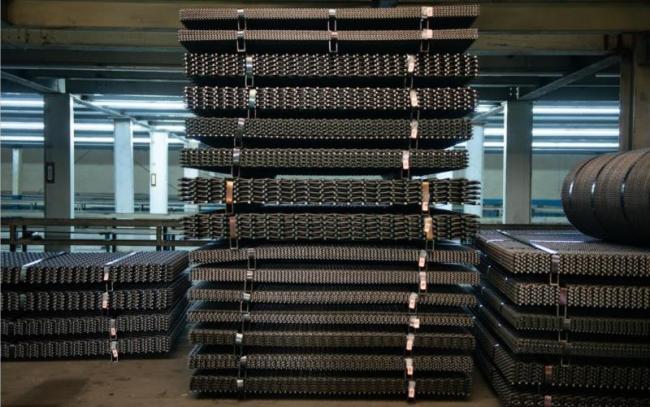

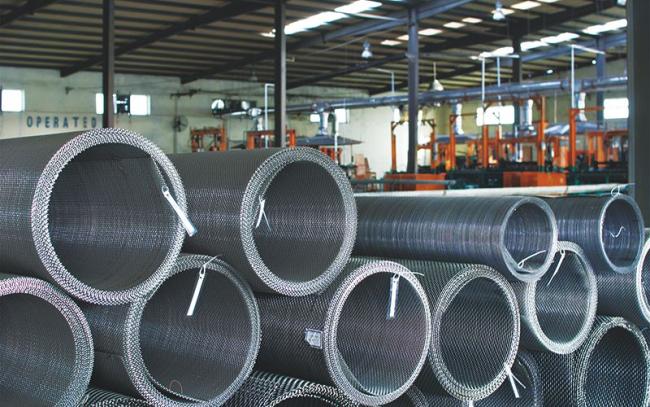

| Products Type | Flat Plates,Rolls, Folding Hook |
| Material |
High Carbon Steel Wire or Stainless Steel Wire. |
Mining Screen MeshOpoening:
| Opening (Aperture) | Wire Diameter | Open Area % |
Approx. Weight kg/m2 |
||
| mm | inch | mm | inch | ||
| 25.4 | 1 | 5.72 | 0.225 | 66.62% | 13.3 |
| 28.58 | 1 1/8 | 5.72 | 0.225 | 69.43% | 12.2 |
| 31.75 | 1 1/4 | 5.72 | 0.225 | 71.80% | 10.9 |
| 19.05 | 3/4 | 6.17 | 0.243 | 57.06% | 19.1 |
| 20 | 48/61 | 6.17 | 0.243 | 58.41% | 18.6 |
| 22.23 | 7/8 | 6.17 | 0.243 | 61.27% | 17.3 |
| 25.4 | 1 | 6.17 | 0.243 | 64.73% | 15.4 |
| 26.99 | 1 1/16 | 6.17 | 0.243 | 66.25% | 14.6 |
| 28.58 | 1 1/8 | 6.17 | 0.243 | 67.64% | 13.8 |
| 31.75 | 1 1/4 | 6.17 | 0.243 | 70.11% | 12.6 |
| 25.4 | 1 | 7.19 | 0.283 | 60.74% | 19.8 |
| 28.58 | 1 1/8 | 7.19 | 0.283 | 63.84% | 18.2 |
| 31.75 | 1 1/4 | 7.19 | 0.283 | 66.48% | 16.7 |
| 38.1 | 1 1/2 | 7.19 | 0.283 | 70.77% | 14.5 |
| 25.4 | 1 | 7.92 | 0.312 | 58.11% | 24 |
| 28.58 | 1 1/8 | 7.92 | 0.312 | 61.31% | 22 |
| 31.75 | 1 1/4 | 7.92 | 0.312 | 64.06% | 20.25 |
| 38.1 | 1 1/2 | 7.92 | 0.312 | 68.54% | 17.5 |
| 41.28 | 1 5/8 | 7.92 | 0.312 | 70.40% | 16 |
| 44.45 | 1 3/4 | 7.92 | 0.312 | 72.04% | 15 |
| 50.8 | 2 | 7.92 | 0.312 | 74.84% | 13.5 |
| 25.4 | 1 | 9.19 | 0.362 | 53.92% | 30.9 |
| 31.75 | 1 1/4 | 9.19 | 0.362 | 60.14% | 26 |
| 38.1 | 1 1/2 | 9.19 | 0.362 | 64.91% | 21.4 |
| 41.28 | 1 5/8 | 9.19 | 0.362 | 66.90% | 22.4 |
| 44.45 | 1 3/4 | 9.19 | 0.362 | 68.67% | 20 |
| 50.8 | 2 | 9.19 | 0.362 | 71.71% | 18.1 |
| 57.15 | 2 1/4 | 9.19 | 0.362 | 74.21% | 16.2 |
| 63.5 | 2 1/2 | 9.19 | 0.362 | 76.31% | 14.85 |
| 50.8 | 2 | 11.1 | 0.437 | 67.35% | 25.3 |
| 50.8 | 2 | 12.7 | 0.5 | 64.00% | 32.3 |
| 57.15 | 2 1/4 | 12.7 | 0.5 | 66.94% | 29.53 |
| 63.5 | 2 1/2 | 12.7 | 0.5 | 69.44% | 26.5 |
| 76.2 | 3 | 12.7 | 0.5 | 73.47% | 22.7 |
| 88.9 | 3 1/2 | 12.7 | 0.5 | 76.56% | 20.2 |
| 101.6 | 4 | 12.7 | 0.5 | 79.01% | 17.9 |
Mining Screen Mesh Application:
Mining Screen Mesh applies to vibrating screens for primary sieving of mine and aggregates, as well as asphalt mixer plant in road building.
