50 Cubic 3 Axles Oil Tank Trailer Truckman Brand With 50 Tons Loading Capacity

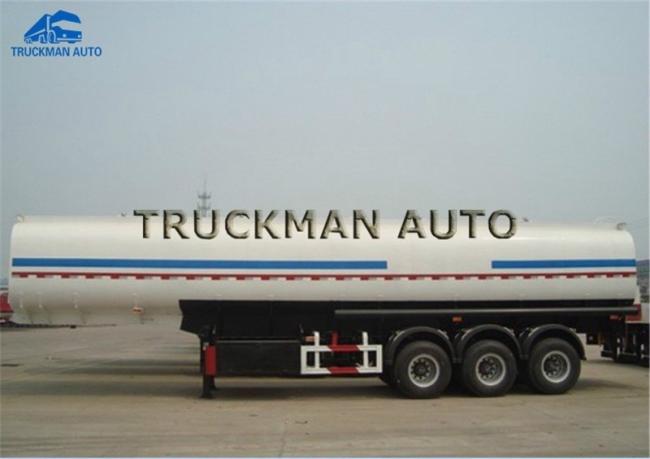

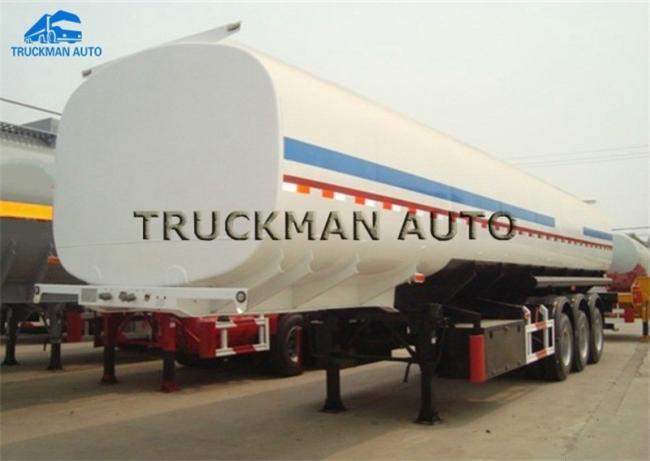

TRUCKMAN Brand 3 Axles 50 Cubic 50000 Liter Fuel Tank Trailer
Main Specification For The Fuel Tank.
-. With safety equipment and seal valve, fire extinguisher.
-. 3 axles with 50 tons loading capacity.
-. LINGLONG brand durable 12.00R20, 315/80R22.5, etc tire.
-. 3-8 pcs comdepartment for loading different liquid.
-. Good brand axles, FUWA 3x13 loading tons.
| Chassis | |
|
Main Beam |
-1. “I” structure design.Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged - Arc processes -2. Main beam height: 500mm -3. Main beam upper plate: 14mm -4. Main beam middle plate: 8mm -5. Main beam lower plate: 16mm -6. Platform thickness: 4mm |
| Landing Gear | JOST E100 one side Operation, 28 tons |
| King Pin | One unit of 90# standard bolt type king pin JOST brand |
| Running Gear | |
| Suspension | American type mechanical suspension; |
| Leaf Spring | 120mmx16mmx10 pcs, 6 sets; |
| Axle | FUWA brand, 3x13T axles; |
| Wheel Rim | 9.0x12 units, 18mm thickness; |
| Tire | 12R22.5 LINGLONG brand 12pcs; |
| ABS System | WABCO brand brake system; |
| Electric System | |
| Electric | 24v, 7 core socket; |
| Lights | LED lights standard; with protect cover; |
| Electric Wire | Factory Standard; |
| Others | |
| Spare Tire Carrier | 1 pcs |
| Mud Guard | Steel material, one whole; |
| Tool Box | Standard; |
| Others | One repair tool box; fire extinguisher |

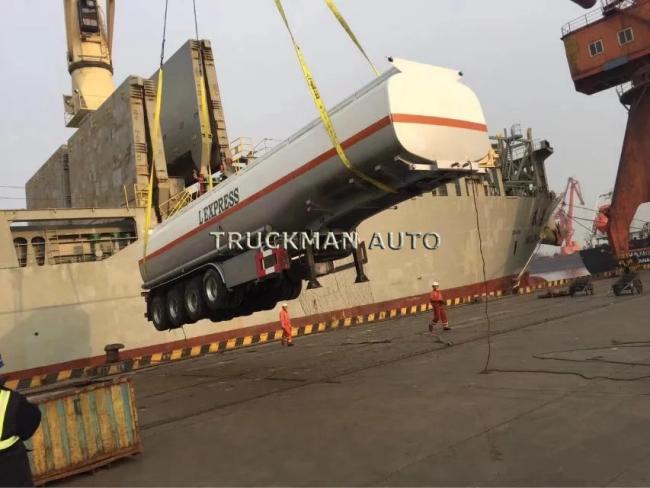

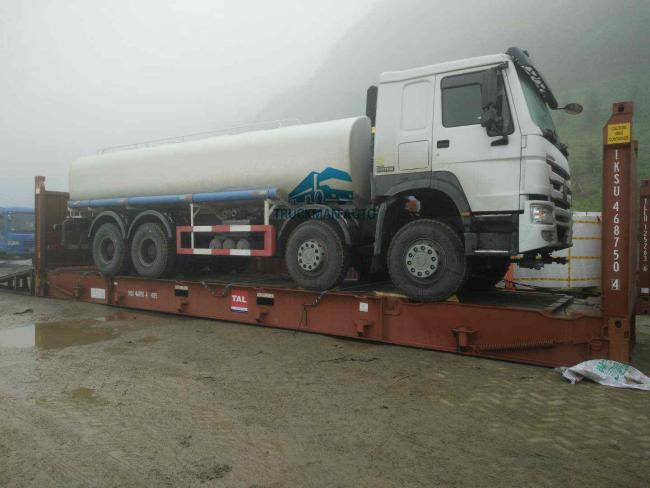

-2. Shipment Details.
We could choose the fast vessel with the suitable cost for the trucks and all truck will safety arrived at the
destination port. without the rusty and damage risky.
