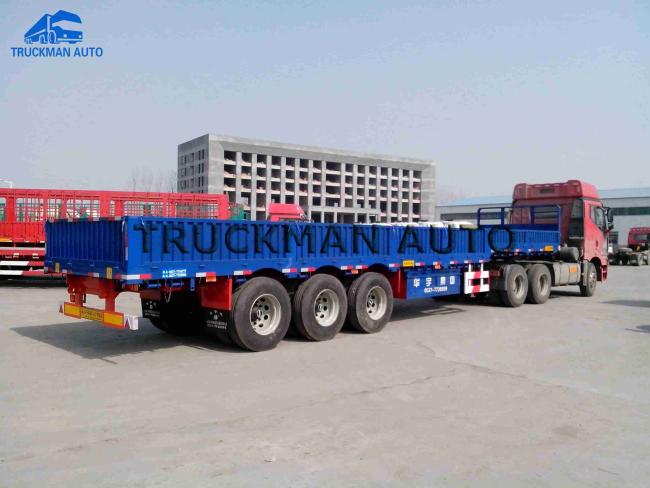

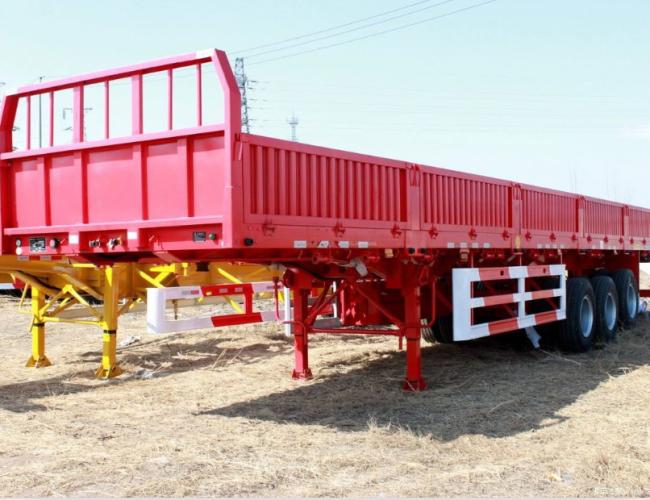

Side Wall 12.5m Cargo Semi Trailer Q345 Steel With Jost Brand Support Leg
China Side Wall 12.5m 50 Tons Cargo Trailer With JOST Brand Support Leg
. Main Feature Of The Side Wall Trailer.
1. The vehicle body is made of high-quality steel, advanced technology and strict production.
The vehicle structure is reasonable, the performance is reliable, the operation is simple, and the appearance is beautiful.
2. The series of semi-trailer frames are through-beam structure, and the longitudinal beam is straight or gooseneck.
The web height is welded from 400mm to 550mm manganese plate. The longitudinal beam is welded by automatic
submerged welding. The frame is shot blasted. The beam penetrates the longitudinal beam and is welded as a whole.
3. The suspension adopts non-independent steel plate stamped rigid suspension, which is made of tandem leaf springs
and suspension bearings; the structure is reasonable, and it has strong rigidity and strength,
which is used to support the load to reduce shock.
| Chassis | |
|
Main Beam |
-1. “I” structure design.Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged - Arc processes -2. Main beam height: 500mm -3. Main beam upper plate: 14mm -4. Main beam middle plate: 8mm -5. Main beam lower plate: 16mm -6. Platform thickness: 4mm |
|
Cargo Box |
-1. Fence could remove; -2. Side 1.5mm, bottom 3mm; checkered plate -3. Upright column: 4mm; -4. Edge beam: 6mm; -5. With stronger hooks, container lock; |
| Landing Gear | JOST E100 one side Operation, 28 tons |
| King Pin | One unit of 90# standard bolt type king pin JOST brand |
| Running Gear | |
| Suspension | American type mechanical suspension; |
| Leaf Spring | 120mmx16mmx10 pcs, 6 sets; |
| Axle | FUWA brand, 3x13T axles; |
| Wheel Rim | 9.0x12 units, 18mm thickness; |
| Tire | 12R22.5 LINGLONG brand 12pcs; |
| ABS System | WABCO brand brake system; |
| Electric System | |
| Electric | 24v, 7 core socket; |
| Lights | LED lights standard; with protect cover; |
| Electric Wire | Factory Standard; |
| Others | |
| Spare Tire Carrier | 1 pcs |
| Mud Guard | Steel material, one whole; |
| Tool Box | Standard; |
| Others | One repair tool box; |
