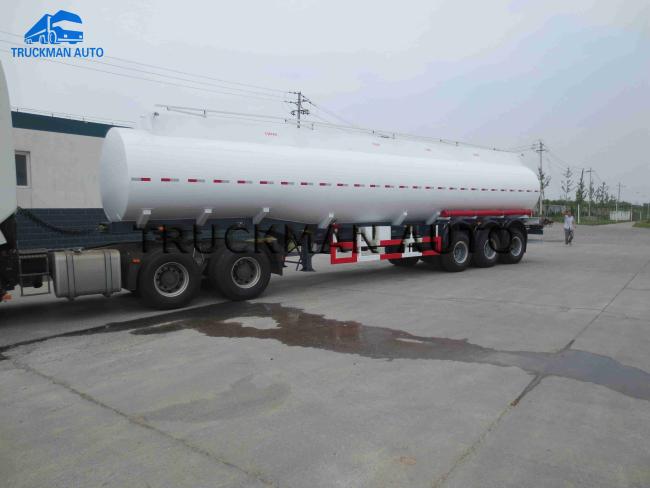

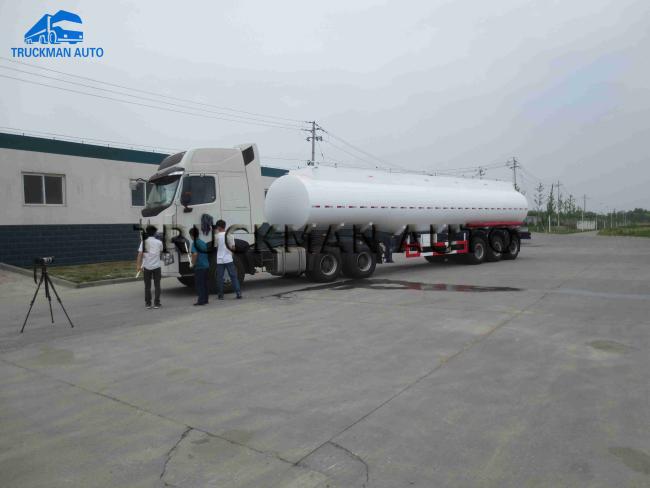

50000 Liter 50m3 Tank Semi Trailer High Capacity With 3-8 Comdepartment
50000 Liter 50m3 Oil Tank Trailer High Capacity With 3-8 Comdepartment
. 50m3 Fuel Tank Semi Trailer Specification.
-. With 3-8 comdepartments
-. With sea valve, fire extinguisher
-. 1 discharge pipe which is 6,000mm in length x 2 pvc discharge pipe carries
-. Material: Q345 carbon or aluminum
| Product | Tri-axle 45,000 liters aluminum fuel tanker trailer |
| Weight & Size: | |
| Loading capacity: | 45,000 Liters |
| Overall L*W*H: | 11,600*2,500*3,800 mm |
| Frame: | |
| Material of main beam: | CIMC specified aluminum alloy |
| Tanker Body: | |
| Tanker body: | Material :Aluminumalloy 5182, thickness:6mm, end plate:6mm |
| Manhole: | 6 pcs, aluminum alloy manhole |
| Compartment: | 6 pcs (the volume of each compartment is customized) |
| Discharge hole: | 3 inch discharge hole with API valve, 6 pcs |
| Bottom valve: | Equipped |
| Handrail: | Collapsible type |
| Top walking way: | Anti-skidding type |
| Running Gear: | |
| Axle: | 3x13 tons axles , fuwa brand |
| Tire: | 12R22.5 tubeless tires with rim , 12 sets ,linglong brand |
| Suspension: | Heavy duty mechanical suspension |
| Landing gear: | Fuwa landing gear |
| Kingpin: | JOST 2 inch bolted type |
| Brake system: | |
| Emergency relay valve | Wabco |
| Air tanker: | 2*46L |
| Brake chamber: | Six-double structure brake chamber |
| ABS: | Equipped |
| Electrical System: | |
| Receptacle: | 7-way socket standard |
| Voltage: | 24 Volt |
| Lights: | LED |
| Accessories: | 1 pcs tool box + 1 spare tire carrier+ 1 discharge pipe which is 6,000mm in length+ 2 pvc discharge pipe carries +6 joints& dust covers + 2 fire extinguishers+ one rear ladder+ one ladder for the inner side inspection +1 shaft sleeve, 1 spare tire shake handle, 1 tire wrench |
-2. About The TRUCKMAN.

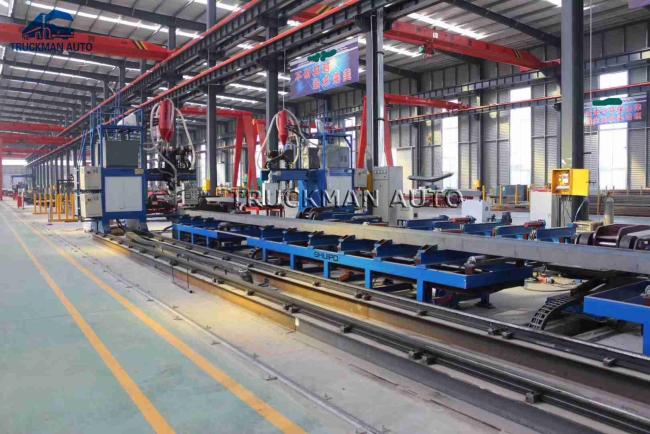

JINAN TRUCKMAN AUTOMOBILE CO.,LTD. was established in year 2010,that mainly focus on
TRUCKMAN brand All series new semi trailers, Full Trailers such as Container trailer, Lowbed trailer, Dump trailer,
Tank trailer, Fence Trailer And some China Brand Tractor truck head, export business. The goods can meet all certificates
and different work requirements, such as BV, SGS, CO, CIQ, GCC, SONCAP, SASO, CCC, FORM E, ADR certificate etc,
also with reasonable price. With years development, our business extended to more than 80 more countries and regions
in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia,
Laos, Myanmar even Latin America countries like Chile, Peru and Australia, America, Europe etc.
We take “Quality, Honesty, Responsibility” as our enterprise core value to make you best cooperation experience.
TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission
with professional services, and are committed to becoming a world-class enterprise with international characteristics.
