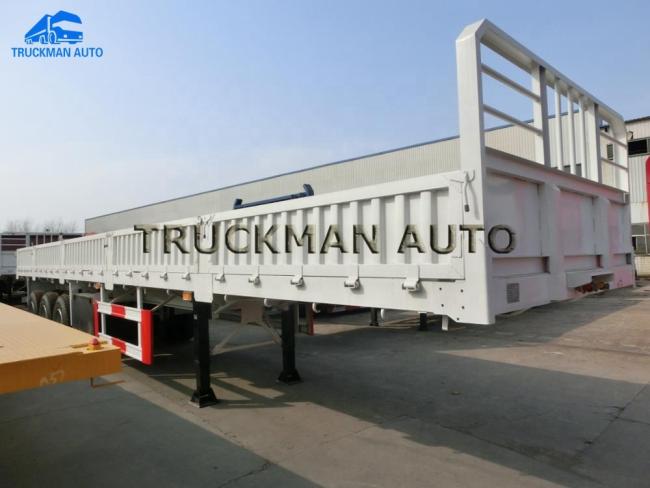

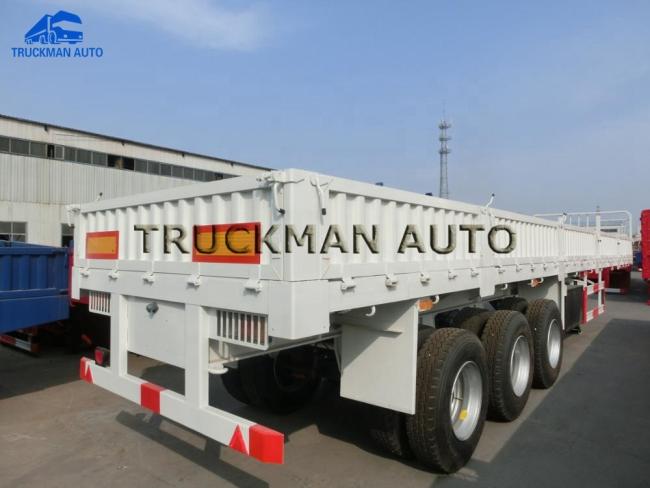

Leaf Spring Suspension Side Wall Truck Semi Trailer With Fuwa/Bpw Brand Axles
-1. Main Function Of Side Wall Cargo Trailer.
It is mainly suitable for medium and heavy products, agricultural and sideline products, and other
light and long-distance freight transportation. It has strong applicability and has become the first
choice for medium and long distance freight vehicles.
| Chassis | |
|
Main Beam |
-1. “I” structure design.Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged - Arc processes -2. Main beam height: 500mm -3. Main beam upper plate: 14mm -4. Main beam middle plate: 8mm -5. Main beam lower plate: 16mm -6. Platform thickness: 4mm |
|
Cargo Box |
-1. Fence could remove; -2. Side 1.5mm, bottom 3mm; checkered plate -3. Upright column: 4mm; -4. Edge beam: 6mm; -5. With stronger hooks, container lock; |
| Landing Gear | JOST E100 one side Operation, 28 tons |
| King Pin | One unit of 90# standard bolt type king pin JOST brand |
| Running Gear | |
| Suspension | American type mechanical suspension; |
| Leaf Spring | 120mmx16mmx10 pcs, 6 sets; |
| Axle | FUWA brand, 3x13T axles; |
| Wheel Rim | 9.0x12 units, 18mm thickness; |
| Tire | 12R22.5 LINGLONG brand 12pcs; |
| ABS System | WABCO brand brake system; |
| Electric System | |
| Electric | 24v, 7 core socket; |
| Lights | LED lights standard; with protect cover; |
| Electric Wire | Factory Standard; |
| Others | |
| Spare Tire Carrier | 1 pcs |
| Mud Guard | Steel material, one whole; |
| Tool Box | Standard; |
| Others | One repair tool box; |
-2. Video Of The Side Wall Semi Trailer.
