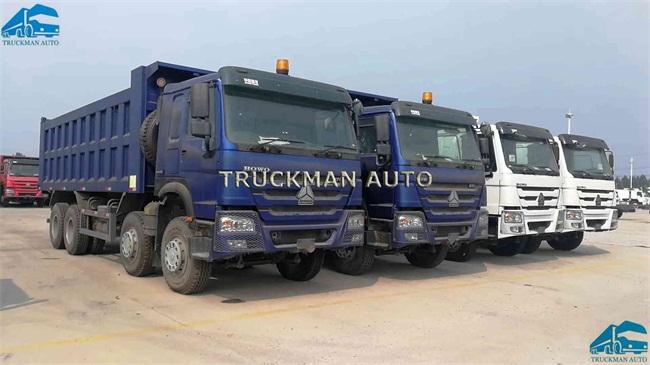

12 Wheelers Sinotruck Howo 8x4 Heavy Duty Dum Truck Tipper 40-50tons Loading

What is Dump Truck?

Dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as a dump truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device.

There are two types of dump trucks: rear dumping and side dumping. The piston rod movement is controlled by the operating system. Backward dumping is more common. Pushing the piston rod causes the truck to tip over, and a few two-way dumping.

What is Dump Truck Tipper Truck Applications?

Dump trucks often work in conjunction with excavators, loaders, belt conveyors and other construction machinery in civil engineering to form loading, transporting, and unloading production lines for loading, unloading, and transportation of earth, sand, and bulk materials.

What is Dump Truck Advantanges?

Because the loading compartment can automatically tip over to unload at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. It is a commonly used transport vehicle.

Maintenance tips
New dump trucks or overhauled vehicles must be commissioned to make the lifting process stable and free of movement.

When using, all parts should be properly selected according to the regulations, which greatly saves the unloading time and labor, and the lifting mechanism exchanges the oil strictly on schedule.

Ship according to rated load. Overload is strictly prohibited.

Operation Tips

Operating procedures
1. Do not suddenly push the lifting handle to the "lowering position" during the full-load lifting.

If this operation error occurs, the carriage suddenly rushes down, which will bring a lot of impact to the frame and even an accident. Therefore, the above operations should be avoided as much as possible, and if there are special circumstances, they must be operated carefully, and the landing speed should be slowed down as much as possible. Don't suddenly drop the carriage to the end.

2. Don't use junk car-junk brake to unload.

Due to the large inertial force of the car (usually 5-20 times the rated lifting force), it is easy to cause damage to the permanent deformation of the frame, welding of the compartment and the sub-frame, burning of the oil pump or damage to the seal ring, and damage to the hydraulic cylinder , The service life of the vehicle is reduced, and in serious cases, a rollover accident may occur. Therefore, it is generally forbidden to drive a dump truck while it is being lifted.

3. After the dump truck is unloaded, the power take-off must be disengaged to make the vehicle feasible.
