Safety Transport Flatbed Container Trailer Transport 40 Ft With Linglong Tire
Price:
Price is negotiable
MOQ:
1 Unit
Delivery Time:
20-25 days
Brand:
TRUCKMAN AUTO
Product Description

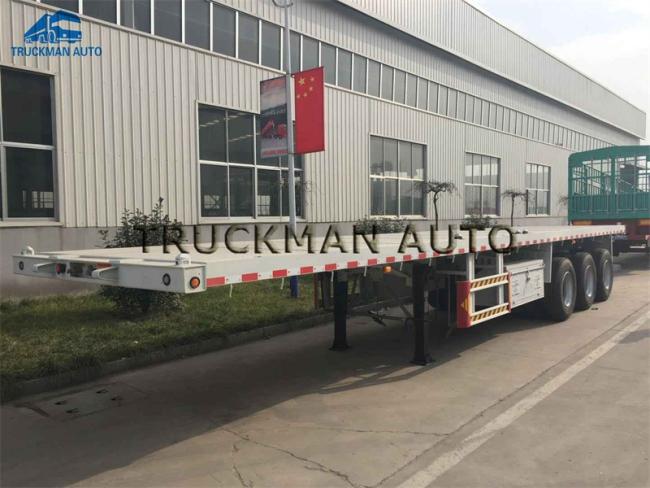

-1. 40FT Container Flatbed Semi Trailer.
-. With double container lock, guarantee the safety transport.
-. WABCO brand brake system and 6 pcs brake chamber.
-. The axles have FUWA, HJ, BPW brand could optional.
-. Thickness: bottom 14mm, upper plate is 12mm, middle 8mm.
| Overall dimension | 12500 *2500 * 1550mm | |
| Loading capacity | 40T | |
| Axle brand and number | 13T Fuwa Brand, 3 axles | |
| Wheel base(mm) | 6880+1310+1310 | |
| Kingpin | 50# or 90# | |
| Steel Spring | 10/10/10 leaf spring suspension | |
| The material of Main beam | The height of the beam is 500 mm, upper plate is12mm, down plate is 14mm, | |
| middle plate is 8mm. | ||
| Tyre and quantity | 12R22.5 12pieces | |
| Landing gear | 28T, double speed operation | |
| Platform plate | 3mm Checkered steel plate | |
| Brake system | Dual Line braking system ,none ABS. | |
| Brake air chamber | Four double and two single chamber | |
| 24V,7 pin socket,One set 6-core standard Cable | ||
| Electrical system | ||
| Light | Tail lamp with turn signal, brake light & reflector, side lamp etc | |
| Tool box | 1 set | |
| Spare tire carrier | 2 sets | |

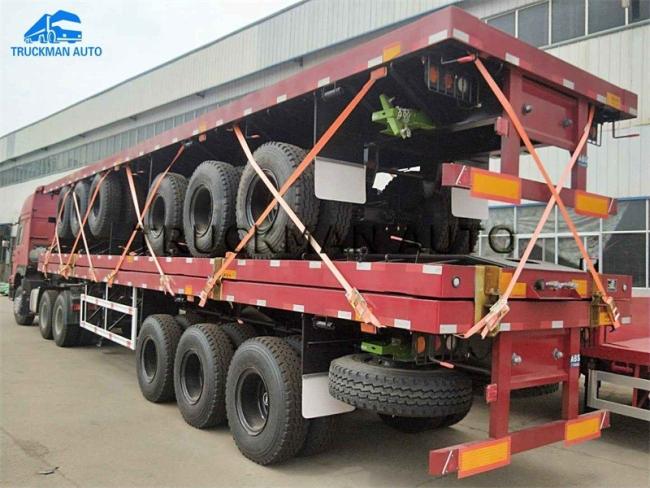

-2. Shipment Detail.
We put 3 pcs or 2 pcs container flatbed trailer together, and try to reduce the shipment height avoid the high
freight cost, and also could put 2 pcs container semi trailer in one 40FT container also.
