High Tensile Dump Semi Trailer With Q345b Material With Rear Lamp Protect Cover
Price:
Price is negotiable
MOQ:
1 Unit
Delivery Time:
20-25 days
Brand:
TRUCKMAN AUTO
Product Description
3 Axles 70 Tons Dump Tipping Semi Trailer With Q345B Material
1. Main Specification For The Dump Semi Trailer.
-. 11.00R20, 12.00R20,12R22.5, 315/80R22.5 model tire could optional.
-. HYVA brand hydraulic front lifting system.
-. Thickness of bottom from 6mm to 20mm, thickness of side from 4mm to 18mm.
-. With rear lamp protect cover.
| Dimensions | 10900mm*2500mm*3600mm |
| Loading | 30T, 40T, 45T, 50T, 60T, 24m3,25m3,30m3,40m3,45m3 |
| Tire | 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle, Linglong |
| Material | Main beams Q345B, upper flange:16mm, middle:10mm, down:18mm |
| Axles | 13T/16/20T BPW or FUWA brand |
| King Pin | 2 inch or 3.5 inch JOST Brand |
| Brake System | WABCO Valve with big chamber |
| LandingGears | JOST brand two-speed, Manual operating heavy duty 28ton |
| Suspension | Bogie suspension, spring suspension, Air suspension |
| Hydraulic system | HYVA brand |
| ElectricalSystem | 24v, 7core socket, lights according to European standards (suitable for all market) |
| Floor | 8mm plate, side wall 6mm |
| Other parts | 1 tool boxs, 1 spare tire carrier |
| Functions | Transport sand,earth work, stone,etc |

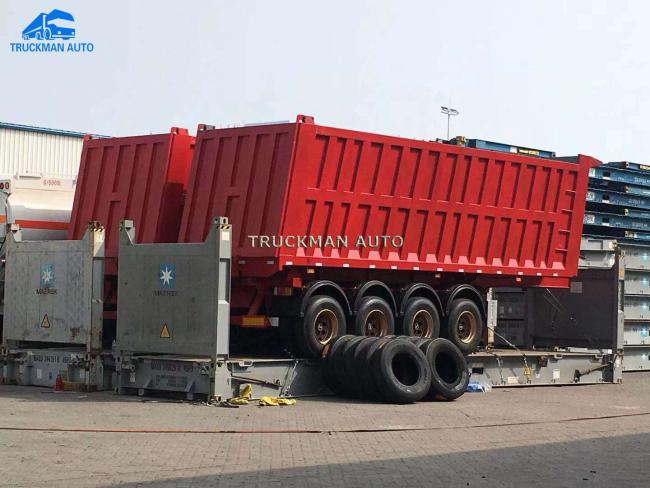

-2. Shipment Picture For Reference.
Shipment by the container flat rack vessel.

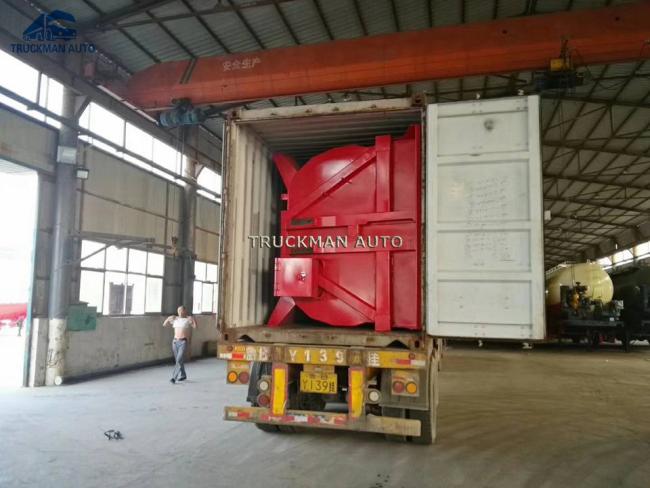

Shipment by the container vessel.
