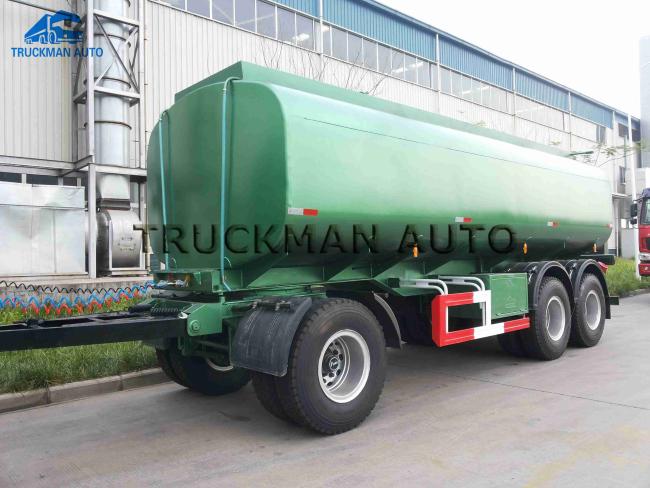

Carbon Steel Full Oil Tank Trailer , Fuel Tanker Trailer With 12.00r20 Tire
-1. Main feature Of Full Tanker Trailer Trucks.
-. With drawbar connect with the fuel tank trucks.
-. Linglong, triangle etc famous brand tire, model could choose the 315/80R22.5, 12R22.5, 12.00R20 etc.
-. 3 axles FUWA and BPW 13 tons axles.
-. Material use Q345B and thickness is head 5mm.
| Body dimension(L*W*H:mm) | 7500×2480×1820(mm) |
| King pin setting(mm) | 50# or 90# |
| Axle space(mm) | 6130+1310+1310(mm) |
| Tare weight(kg) | 7320(Kg) |
| Loading capacity | 22680(Kg) |
| Landing gear | Two speed manual operation type with sand shoe |
| Kingpin | JOST others |
| Brake system | China famous brand brake valve or Wabco |
| ABS | 4s/2M |
| Brake chamber | Type 30/30 spring brake system on all axles |
| Insulation layer | 75mm glass fiber cotton |
| Suspension | Mechanical suspension leaf spring or air suspension |
| Axle | FUWA axle, 13 ton capacity/set, 3sets |
| Tire | 12.00R22.5 12PR China famous brand |
| Bottom valves | one pcs of aluminum alloy material |
| Wheel Rim | 9.0-22.5 12 pcs |
| Compartment | One |
| Tank material | Carbon steel |
| Bulkhead and Bafflr | Thickness is 6mm |
| Tank Shell | Thickness is 5mm |
| Shape of tank | circular shape |
| Manhole | 2 pcs of aluminum alloy material |
-2. FAQ
-. Terms of paymemt
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Whats your delivery time
20-25 working days after received the deposit.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
