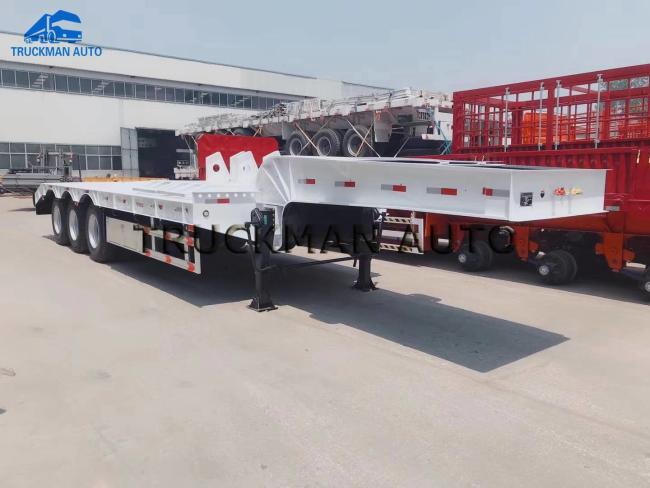

60 Ton Low Bed Semi Trailer With 12.00r20 Tire For Long Haul Freight Transport
60 Tons Lowbed Low Bed Flat Bed Semi Trailer With 12.00R20 Tire
1. Low Bed Trailer Specification.
-. The series of semi-trailers are of the beam-type structure, and the stringers are straight or gooseneck.
The web height is welded from 400mm to 550mm manganese plate, the longitudinal beam is automatically
buried and welded, the frame is shot peened, the beam is inserted into the stringer and welded.
-. Widely used in different areas, mainly used in long-haul freight transport.
-. Reasonable structure, strong rigidity and strength, can be used to impact the bearing the strike.
-. Customized design to meet different customer needs.
-. Advanced Manufacturing Technology, Laser cutting, robot automatic welding, reliable quality
| Assembly Name | Composition | Specifications |
| Chassis | Main beam | Q345B Steel; The height of the beam is 500mm; |
| Upper plate;18mm; Middle plate is 12mm; Down plate is 20mm. | ||
| Cross beam | 14# channel steel | |
| Side beam | 25# channel steel | |
| King Pin | 2”(50mm)or 3.5”(90mm)traction pin | |
| Dimensions(L*W*H) | 13000*3000*1550mm | |
| Floor | 5mm diamond steel plate | |
| Ladder | 60T Heavy duty Mechanical ladder | |
| Suspension | Suspension type | Common mechanical |
| Steel Spring | 2010/10/10 | |
| Running system | Axle | 3 Axle ,Fuwa Brand |
| Wheel Rim | 9.0-22.5 steel wheel rim | |
| Tire | Spe:12R22.5; Number of Tire:12 pieces | |
| Brake system | Brake Chamber | 6 big chamber |
| Brake Valve | KTL Brand/WABCO | |
| Brake system | Dual Line Brake system | |
| Other | Tool box | 2 set standard tool box |
| Light | Tail lamp with turn signal ,brake light & reflector, side lamp etc. | |
| Painting | 1 coat of anticorrosive prime, twice coats of final paint. | |
| Spare Tire Carriers | 2 pieces | |
| Leading gear | 28T Manual operating, Heavy duty landing gear | |
| Weight | Tare Weight | 12000Kg |
| Loading Capacity | 60T | |
| Axle weight load | 13T |
-2. FAQ
-. Terms of paymemt.
30% as the deposit by T/T, 70% balance before delivery.
-. What’s your MOQ?
One unit trailer or truck. But suggest two trailers one time to save the freight.
-. Whats your delivery time.
20-25 working days after received the deposit.
-. Can you accept the custom made?
Definitely! We could design the trailer according to your request.
-. What’s your warranty?
All of our trailers meet the CIQ, SGS, BV, ADR, FORM E quality certificate, and we will supply one year warranty for the trailers.
