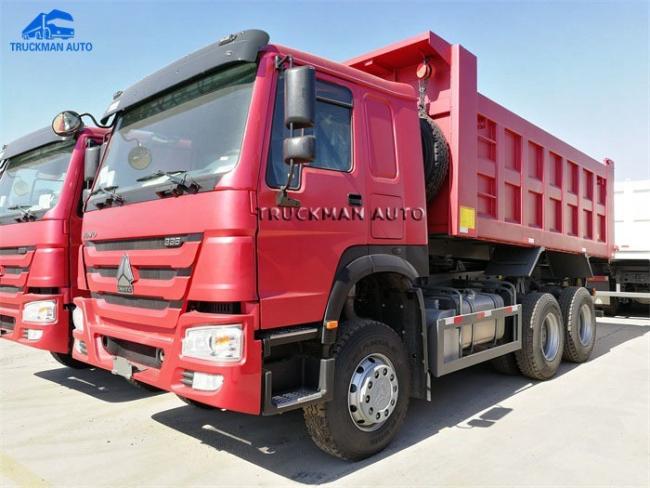

12.00R20 Model Tire 25 Tons 20m3 SINO Dump Truck
-1. Main Information For SINO Dump Truck.
25 tons SINO truck 6x4 dump truck, all truck material adopt the manganese plate, especially the cargo box thickness bottom is 8mm, side is 6mm (also could accept the customize). Some fast moving parts also use famous brand, such as the PARKER brand filter, help improve the using time.
-2. Main Specification For SINO Dump Truck.
| Model | SINO Dump Truck |
| Engine | WD615.47, 371HP |
| Cabin | HW76 cabin, one bed, A/C. |
| Gearbox | HW19710, 10 forward and 2 reverse gear |
| Tire | 12.00R20, 10+1 spare tire, TRIANGLE brand |
| Cargo Box | 5800x2300x1500mm, 20m3 |
| Loading Tons | 25-30 Tons |
| Fuel Tank Capacity | 300L |
| Max Speed | 75km/h |
| Warranty | 1 year |

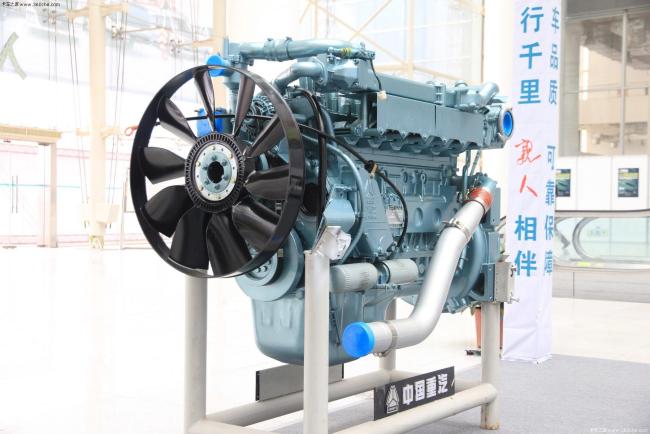

-3. SINO Dump Truck Engine Information.
-. Engine Details:
| Type | 4-stroke direct injection diesel engine |
| Model |
WD615.47, Euro II emission standard; 6-cylinder in-line with water cooling, turbo-charging, and intercooling, 4 strokes; |
| Maximum Output | 371hp (273Kw) at 2200rpm |
| Maximum Torque | 1470Nm at 1300-1600rpm |
| Displacement | 9.726L |
| Bore/Stroke | 126/130mm |
-. How To Maintain A SINO Dump Truck Engine.
Change the engine oil and oil filter, when mileage reach to 7500 kilometers
To clean the air filter element regularly, the method that can be used is to blow high-pressure air from the inside out to blow out the dust in the filter element. As the air filter element is paper, pay attention to the air pressure not to be too high when blowing, so as not to damage the filter element. The air filter element should generally be replaced after cleaning 3 times. The cleaning cycle can be determined by the air quality in the daily driving area.
Pay attention to cleaning the air intake pipe to ensure the smooth flow of air intake.
