Automatic Welding FUWA Axle 50T Low Bed Semi Trailer
FUWA Brand Axle 50 Tons Low Bed Semi Trailer

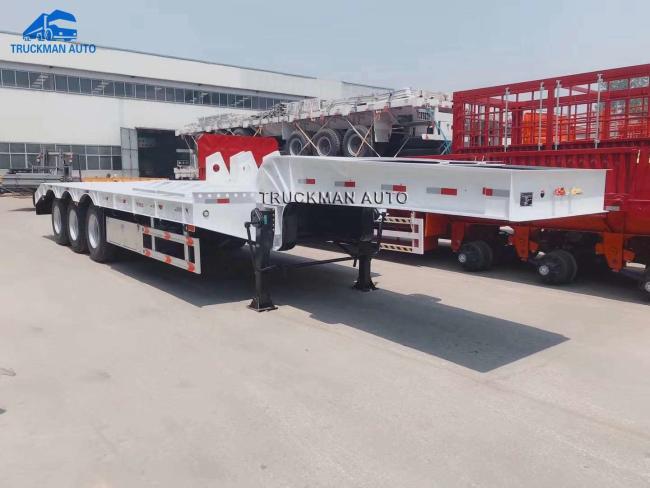

-1. 3 Axle Low Bed Semi Trailer Main Detail.
Now all our low bed trailer material adopt the T700 high strength steel, and suspension, rim, leaf spring
thickness also increased. Meet the bad road condition work demand and heavy duty loading. The ladder
width also reach to 800mm, for easier loading machinery.
-2. 3 Axle Low Bed Semi Trailer Main Specification.
| Description | Parameter value |
| Loading Weight | 70000kg |
| Tare Weight | 11000kg |
| Axle | 3 axle, 3x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Rim | 18mm thickness |
| Tire | 12.00R20 or 315/80R22.5, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
| Material | T700, high strength steel |
| Loading Area Size (LxWxH) | 9000x3000x1300mm |
| Dimension | 13000x3000x1300mm |
-3. Other Model Of 3 Axle Low Bed Semi Trailer.
Beside of normal type low bed semi trailer, we also have the concave beam low bed semi trailer and gooseneck
could remove low bed semi trailer, the picture as follow:

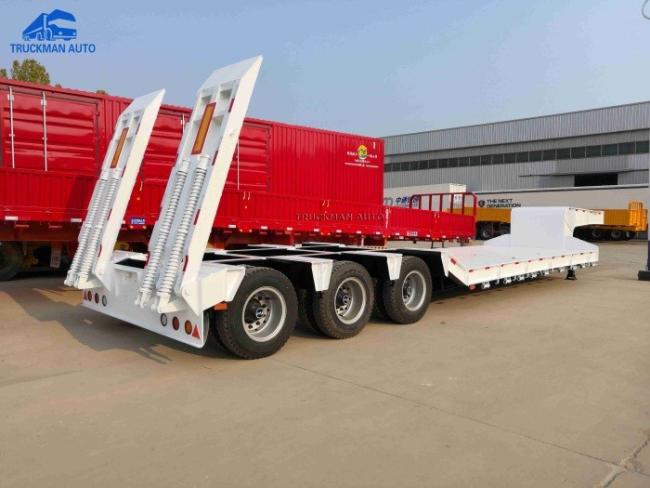

concave beam low bed semi trailer

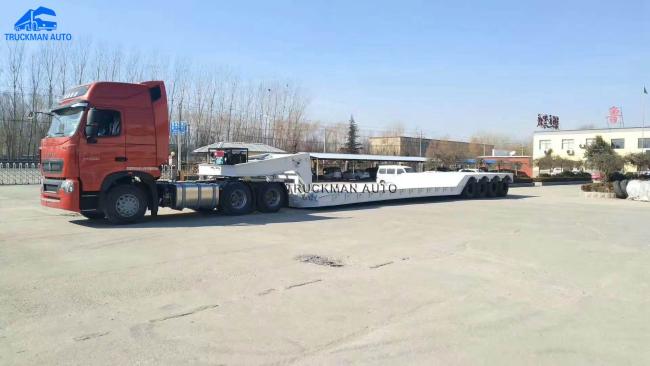

gooseneck low bed semi trailer
