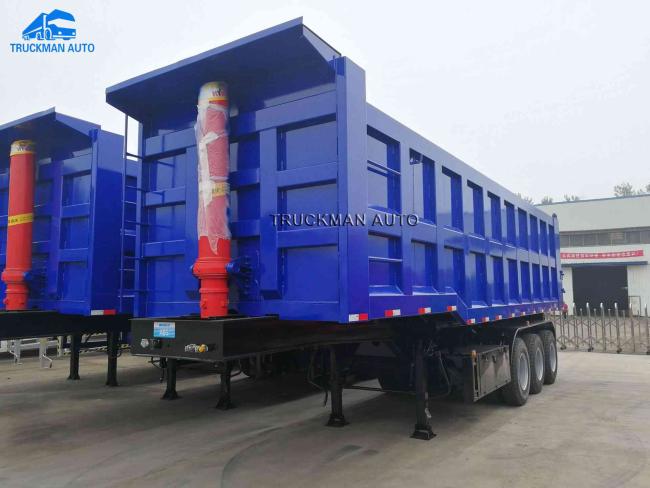

60000kg 3 Axle Dump Trailer For Bauxite Coal Gravel Transport
3 Axle Dumping Trailer For Bauxite Coal Gravel Transport
-1. 3 Axle Dumping Trailer Main Detail.
Transport the coal, gravel, bauxite etc mining and construction material need dumping trailer, the 3 axle dumping trailer max loading tons is 60 tons. Lifting system is very important for the dumping trailer, our TRUCKMAN AUTO brand dumping trailer have the HYVA brand and Chinese brand lifting system could optional, the cylinder diameter more bigger than others.
-2. 3 Axle Dumping Trailer Main Specification.
| Description | Parameter value |
| Product Name | Dumping trailer |
| Loading Weight | 60,000kg |
| Tare Weight | 13,000kg |
| Axle | 3 axle, 3x16 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 120x16mmx10pcsx6sets |
| Rim | 16mm thickness |
| Tire | 12.00R20 or 315/80R22.5, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
| Material | Q345, high strength steel |
| Cargo Box | 10000x2300x1500mm, bottom 8mm, side 6mm. |
| Dimension | 11000x2500x3750mm |

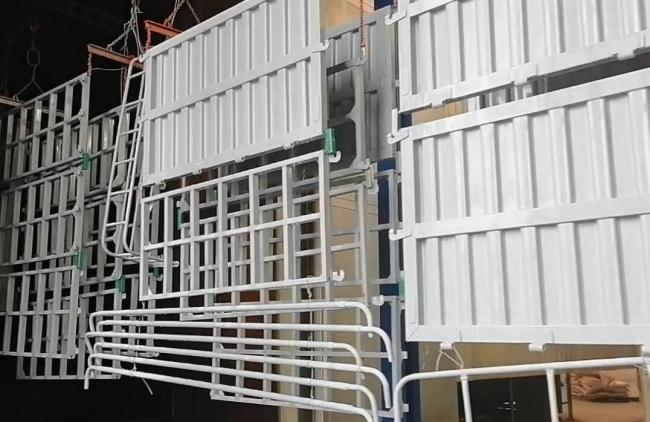

-3. 3 Axle Dumping Trailer Paint Details.
The dumping trailer paint with 3 level, one primer and two baffle paint. effectively avoid the problem of peeling and rust. And dumping trailer paint adopt the electrophoretic-coated tech.
