1600mm Flat Bed Trailer For 20FT 40FT Container Transport

Price Negotiable

Price: negotiable

MOQ: 1 Unit

Delivery Time: 20 working days

Brand: TRUCKMAN AUTO

Product Description

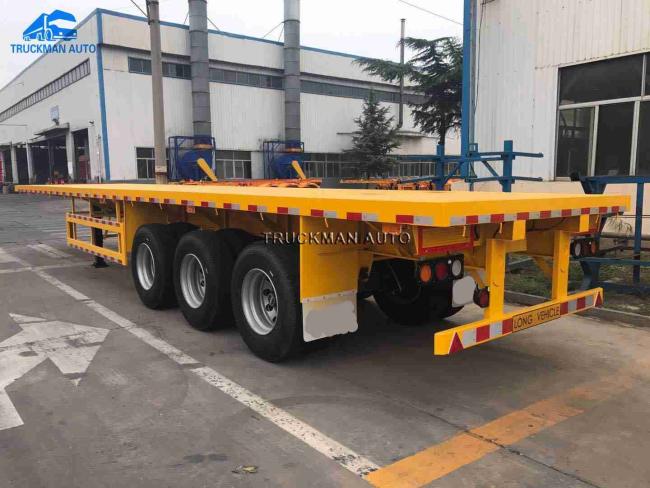

Container Flatbed Trailer For 20FT & 40FT Container Transport

-1. Container Flatbed Trailer Main Detail.

Container Flatbed Trailer with 12 pcs twist lock and 36 pcs stronger hooks. The saddle could optional the 90# (3.5inch) size, also make the trailer total height to lower than 1600mm, confirm the transport safety.

-2. Container Flatbed Trailer Main Specification.

Description	Parameter value
Product Name	Container Flatbed Trailer
Loading Weight	50,000kg
Tare Weight	8,000kg
Axle	3 axle, 3x13 tons
Suspension	America type, 8mm thickness
Leaf Spring	90x13mmx10pcsx6sets
Rim	16mm thickness
Tire	12.00R20 or 315/80R22.5, 12 pcs
Brake System	WABCO brand, ABS and 6 pcs brake chamber
Thickness Of Frame	Upper plate 14mm, middle 8mm, lower plate 16mm, “I” type main beam
Material	Q345, high strength steel
Dimension	12500x2500x1550mm

The Container Flatbed Trailer could design according to your request.

-3. Container Flatbed Trailer Working Picture.

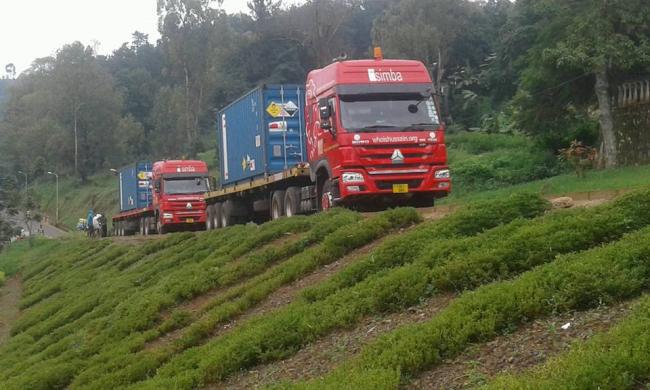

Our TRUCKMAN AUTO Container Flatbed Trailer is very popular in Tanzania, the customers use it transport the 20FT, 40FT, 45FT container from Dar Es Salaam port to Zambia, Congo, Rwanda etc countries.
