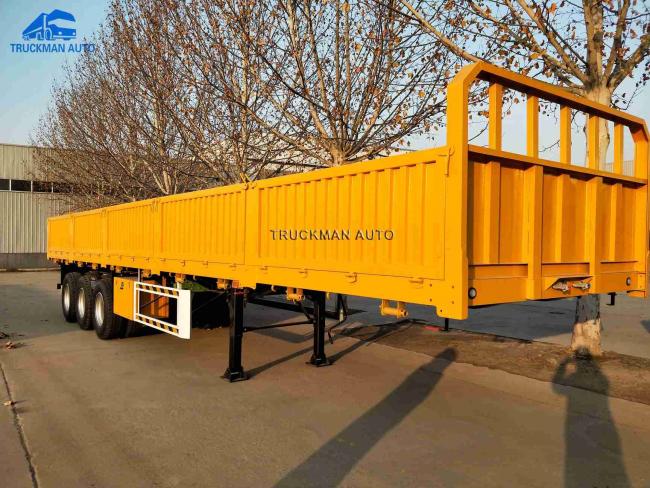

ABCO Brake Q345 Steel Cargo Semi Trailer With 12pcs Tire
High Strength Steel Material Side Wall Cargo Trailer Used For Heavy Loading
-1. Side Wall Cargo Trailer Main Advantage.
-. Design for livestock transport.
-. With 800+600mm height side wall for convenient for unloading.
-. Tire choose the tubeless model, for long distance transport need.
-. Adopt the advance tech for trailer welding.
-2. Side Wall Cargo Trailer Main Specification.
| Description | Parameter value |
| Product Name | Side Wall Cargo Trailer |
| Loading Weight | 60,000kg |
| Tare Weight | 10,500kg |
| Axle | 3 axle, 3x13 tons |
| Suspension | America type, 8mm thickness |
| Leaf Spring | 90x16mmx10pcsx6sets |
| Rim | 16mm thickness |
| Tire | 12.00R20 or 315/80R22.5, 12 pcs |
| Brake System | WABCO brand, ABS and 6 pcs brake chamber |
| Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
| Material | Q345, high strength steel |
| Dimension | 12500x2500x3200mm |
The specification is only for reference, we could design the Side Wall Cargo Trailer according to your request.
-3. SINOTRUCK HOWO Truck Head With Side Wall Cargo Trailer.

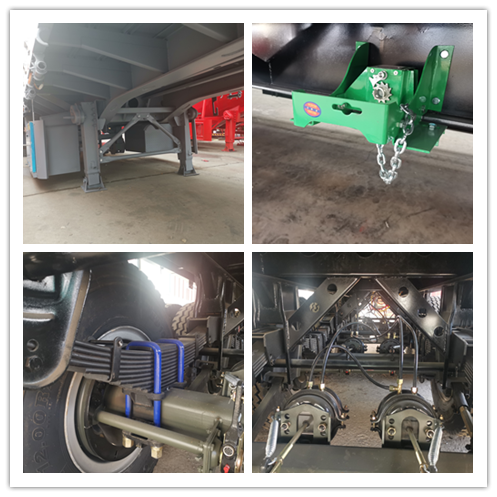

The chassis picture of side wall cargo trailer, with heavy duty design, such as 12 piece of leaf spring with thickness 90x16mm
and rim also use 18mm thickness.
