371HP SINOTRUCK HOWO Heavy Duty Dump Truck U Shape Cargo Box
-1. SINOTRUCK HOWO Heavy Duty Dump Truck Detail.

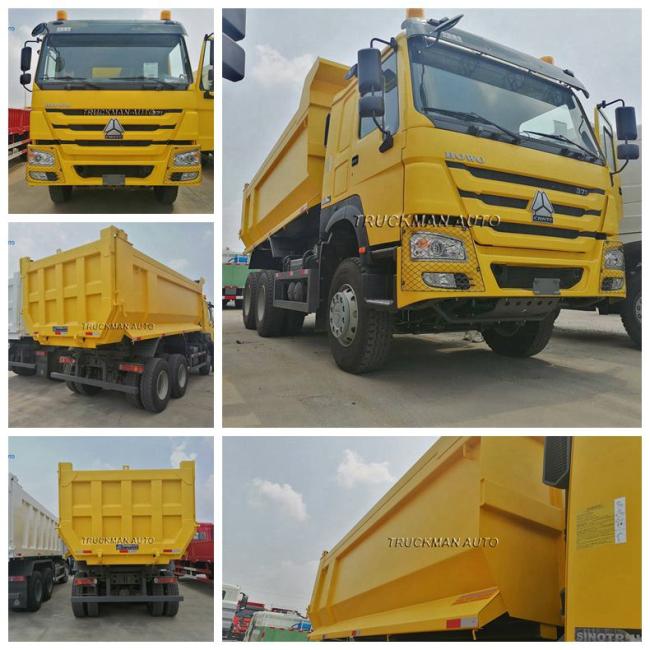

The SINOTRUCK HOWO heavy duty dump truck bucket have normal shape, mining shape and U shape model.
The U shape bucket with lower center of gravity, more safety when off loading goods, not easy rollover. And also
the goods will not stay in the cargo box, very clean.
-2. SINOTRUCK HOWO Heavy Duty Dump Truck Main Specification.
| Description | Parameter value |
| Product Name | SINOTRUCK HOWO Heavy Duty Dump Truck |
| Application | For transport construction and mining material |
| Engine | WD615.47, 371HP |
| Cabin | HW76, with one bed, A/C |
| Gearbox | HW19710, 10 forward and 2 reverse gear |
| Driving Axle | HC16, 2x16000kg |
| Tire | 12.00R20 / 13R22.5 10+1 pcs |
| Bucket | 5400x2300x1500mm, U shape |
| Fuel Tank | 300L |
| Loading Tons | 25-30 Tons |
| Dimension | 8600x2580x3250mm |
The SINOTRUCK HOWO heavy duty dump truck specification is only for reference, we could recommend
the other model SINOTRUCK HOWO dump truck according to your request.
-3. SINOTRUCK HOWO Heavy Duty Dump Truck Working Notes.

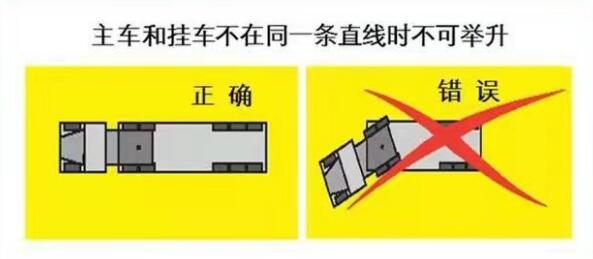

The dump truck and the semi-trailer need to be at one level 180° and on the same horizontal line.
Otherwise if lifting cargo box will easier to rollover, like picture.

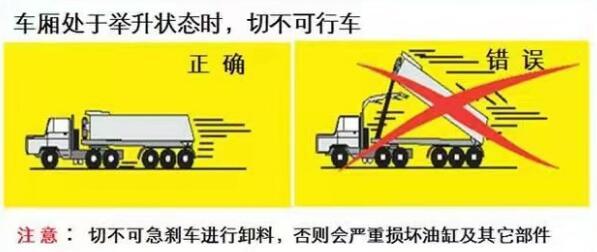

The dump truck cargo box needs to be completely down, then could start to driving.

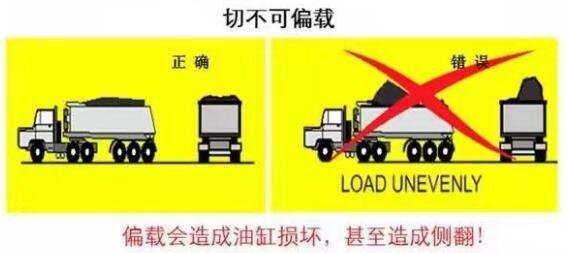

Loading unevenly also could let the dump truck rollover
