6x4 385HP 10 Wheel SHACMAN F3000 Mining Dump Truck Cummins Engine
6x4 385HP Cummins Engine 10 Wheel SHACMAN F3000 Mining Dump Truck

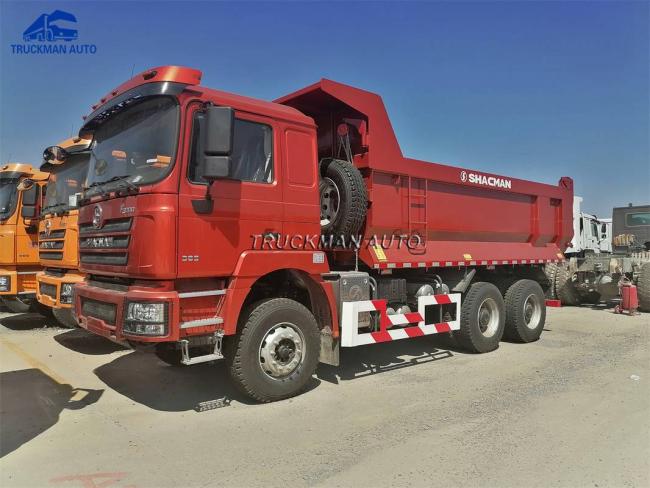

-1. SHACMAN F3000 Mining Dump Truck Detail.
10 wheel SHACMAN F3000 mining dump truck main design for mining work request, and the engine
adopt the CUMMINS brand 385HP engine, with EURO 3 emission standard. And the cabin also with
one sleeper for driver rest. Most important is cargo box design model is U shape for bauxite offloading.
-2. SHACMAN F3000 Mining Dump Truck Main Specification.
| Description | Parameter value |
| Product Name | SHACMAN F3000 Mining Dump Truck |
| Application | For construction and mining work |
| Engine | CUMMINS ISME385-30, 385HP. Euro 3 |
| Cabin | F3000 middle long cabin,with one bed, A/C |
| Gearbox | 12JSD200T, 12F & 2R, with PTO, Manual Gearbox |
| Front Axle | 1x9500kg, MAN tech steering axle |
| Driving Axle | 2x16000kg, MAN |
| Tire | 12.00R20, 10+1 pcs, TRIANGLE brand |
| Bucket | 5600x2300x1500mm, U shape box |
| Fuel Tank | 400L |
| Loading Tons | 25-30 tons |
| Other | Intercooler protect cover, reverse buzzer optional |
| Dimension | 8600x2580x3400mm |
The SHACMAN F3000 mining dump truck specification is only for reference, we could recommend the
other model SHACMAN dump truck according to your request.

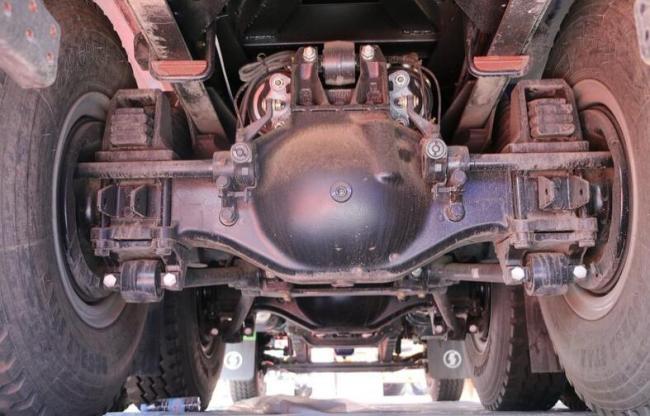

-3. SHACMAN F3000 Mining Dump Truck Axle Picture.
SHACMAN F3000 dump truck front axle loading capacity is 9.5 tons, rear axle loading tons is 2x16 tons,
and driving axle model is belt differential lock, differential house become small, improve the truck pass
ability driving at bad road condition
