Ethernet Network Extender MPL80-F-2 Ethernet on AC or DC Powerline long range 500m high speed 95Mbps

• MPL80-F-2 network extender is a high-speed cable network transmission equipment. Based on OFDM modulation and demodulation technology, it can be transmitted by any AC or DC power line. The maximum transmission distance can reach 500 meters (1 mm diameter Coaxial cable), and the maximum physical layer rate can reach 240 Mbps.
• Electric power and data are transmitted on the same cable.
• Power supply, signal common cable transmission, easy construct, cost savings;
• Support point to point and point to multi-point data transmission.
• The power consumption of the whole machine is less than 2W.
• Compliance with EU EN-50561 Standard and Specification.

Typical application:

Industrial video surveillance

Elevator swipe control management system

Ethernet Extender on Power line

MPL80-F-2 can support point-to-point communication and can also support point to multi-point communication of bus structures.

Point to point.

Point to multi-point

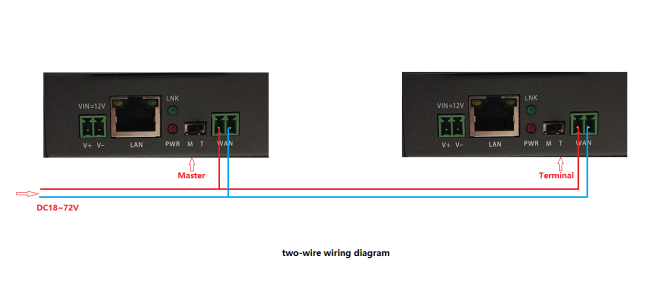

MPL80-F-2 Wiring diagram

Electrical Characteristics:

Order Information

P/N:  MPL80-F-2
