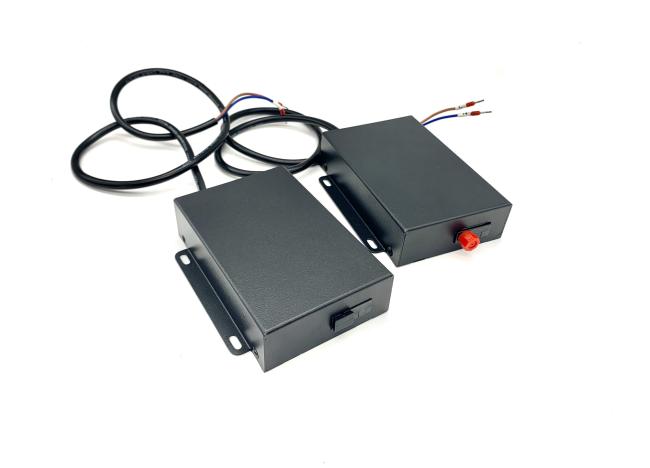

IPF-R08 industrial outdoor broadband power line communication to fiber converter 220v AC input ethernet to fiber


IPF-R08 is an industrial optical to carrier repeater, the upper interface is 100 megabytes single-mode single-fiber FC fiber interface, and a broadband power line carrier interface + 100 megabytes Ethernet port is provided to realize the power line carrier signal Ethernet and optical port signal conversion, long-distance data and video signal transmission through optical fiber.
IPF-R08 upload uses WDM technology, sending wavelength is 1550nm, receiving wavelength is 1310nm, simultaneously transmitting and sending data through a single-mode optical fiber, the longest transmission distance is 20km.
IPF-R08 uses industrial design, wide working temperature range, good reliability, outstanding quality, superior performance, suitable for residential areas, enterprises, roads, factories, mines, buildings and other monitoring scenarios.

Feature


• one 100-megabit FC fiber uplink interface;
• one PLC power line carrier interface (multiplexing 220V power supply interface);
• one RJ45 Ethernet port;
• Based on WDM technology, single-mode single-fiber transmission, the longest transmission distance is 20km,
• working wavelength: 1550nm (send), 1310nm (receive)
• Operating temperature: -40℃ ~ 70℃


Specification


Operating environment
Operating temperature	-40℃～70℃
Operating humidity	10 ～ 90RH non-condensing
Storage temperature	-40～85℃
Storage humidity	5 ～ 90RH non-condensing
Average transmitted power	-14 ～ 7dBm
Receive sensitivity	-32dBm
Data transfer rate per port	100Mbps full duplex




Order Information

Product Description                                                                  Order Code
Industrial outdoor broadband PLC fiber converter                    IPF-R08
