MDS5006 6 ports ADSL VDSL2 Communication concentrator Long range High Uptream

MDS5008 is a DSL communication concentrator equipment launched by our company based on long-distance copper wire transmission (video big data application scenario). It adopts our company's unique HUDSL (high uptream DSL) technology and makes full use of ADSL high downlink bandwidth channel for HD video monitoring. Its main features are as follows:

1) Special ADSL reverse bandwidth technology makes full use of high bandwidth channel to transmit big data and low bandwidth channel to transmit control signals

2) The maximum bandwidth of single channel is 24m, and the longest distance is 6.5km

3) Use together with mds1000 of hudsl terminal equipment of our company

4) It supports multi-channel convergence, star networking, dual network interface connection, and cascade (expansion port)

5) Each DSL adopts independent channel and bandwidth, Ethernet convergence and uplink

6) Built in hardware watchdog to improve transmission reliability

7) Industrial operating temperature range - 40 ℃ ~  70 ℃

Typical applications

Railway, coal, port and other high-definition video monitoring

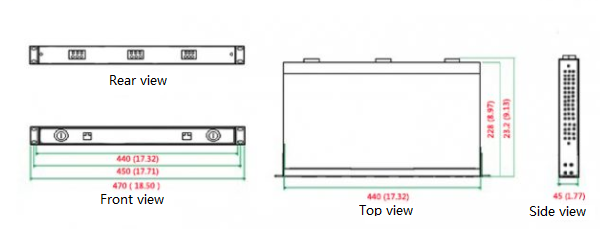

Shape and dimension

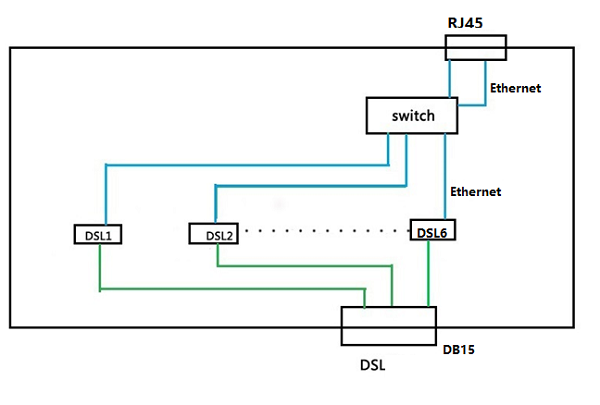

Internal block diagram


Electrical characteristics

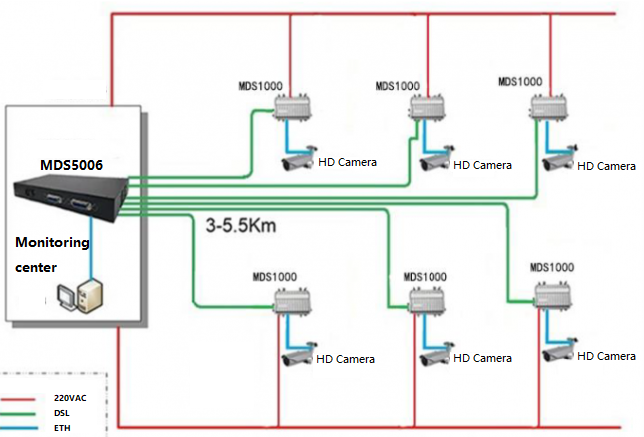

Application block diagram






Order Information

Product Description                                                       Order Code
6 ports ADSL VDSL2 Communication concentrator      ​MDS5006
