Standard Heater Hot Air Blower Industrial Drying Equipments
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
Yan Yang Tian
Product Description

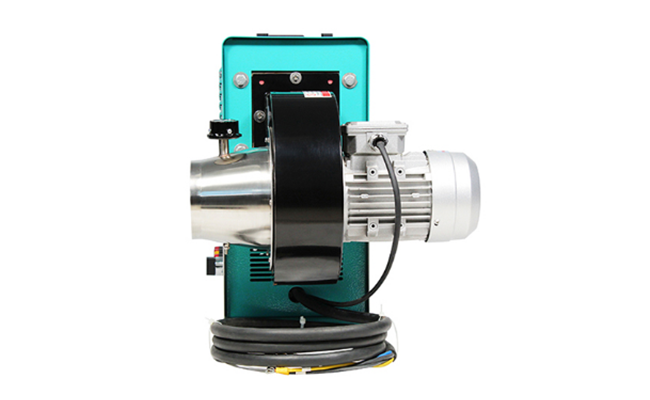

Electric Heating Standard Hot Air Blower Belongs To Drying Equipment
1, Product Overview
Drying equipment: standard electric heater.
Standard type hot air blower is the first choice for modern industrial heat source upgrade and replacement. It is widely used in electronics, food, pharmaceutical, printing, packaging, cleaning, heat treatment... Various industries have very good application prospects. It is an automatic machine for hot air drying industry. The best hot air source configuration.
2, Parameter attribute table
| Model | HAG-P/R3A | HAG-P/R5-7.5A | HAG-P/R10-15A | ||||||
| Specifications | P1220-3C-018Y | P3380-7.5C-025Y | P3380-10C-055Y | ||||||
| Power system | 2/220V±10% | 3/380V±10% | 3/380V±10% | ||||||
| Heater power | 3KW | 5KW | 5KW | 6KW | 7.5KW | 10KW | 12.5KW | 15KW | |
| Outlet temperature | Normal temperature ~ 350 ° C | ||||||||
| Temperature control method | PID control (SSR drive) | ||||||||
| Air outlet caliber | 063mm (Can be customized) | 063mm (Can be customized) | 076mm (Can be customized) | ||||||
| Blower | Power | 120/180W | 250/370W | 550/750W | |||||
| Maximum air volume (50Hz) | 305/405m3/h | 504/660m3h | 860/1200m3/h | ||||||
| Maximum wind pressure (50Hz) | 412/450Pa | 850/860Pa | 1020/1210Pa | ||||||
| Inlet diameter | 89mm (Can be customized) | 102mm (Can be customized) | 133mm (Can be customized) | ||||||
| Air volume adjustment method | Manual adjustment of conventional air inlet (adjustable by installing inverter) | ||||||||
| Air inlet temperature range | Normal temperature (circulating type is normal temperature ~ 230 ° C) | ||||||||
| Noise (at a maximum air volume of 50Hz) | 70db | 70db | 76db | ||||||
| Total cable | 3 core x4m2x3m | 5 core x4m2x3m | 5 core x6m2><3m | ||||||
| Installation and fixing method | Machine angle (can be equipped with wheels or L angle mounting bar) | Machine angle (can be equipped with wheels or L angle mounting bar) | Wheel (can be equipped with mounting holes or L-corner mounting bars) | ||||||
| Weight | 20kg | 25/32kg | 45/50kg | ||||||
| Work environment | Ambient temperature: 0 ~ 40 ° C Relative humidity: RH80% or less (no frost allowed) | ||||||||
3, Product purpose
Drying and heat treatment of Copper foil industry, casting, shipbuilding, textile, ultrasound equipment, packaging machinery, food processing, medical equipment, printing industry, chemical industry and other materials.
4. Characteristics of standard hot air blower
1. Continuous use temperature can reach 350℃/450℃/500℃, the widely used range.
2. The multi-fiber thermal insulation cotton has heat insulation and a sturdy chassis. It is safe and reliable to use and can maintain high temperature for a long time.
3. K-type thermocouple is installed at the air outlet to directly detect and control, and the temperature of the air outlet is constant.
4. Multiple overheating and overload protection devices are provided to fully ensure the safety of the equipment, and it can work 365 days a year.
5. Ingenious wind tunnel design, air passes uniformly from inside/outside of spiral heating wire, heat exchange is nearly 100%, less wind pressure loss and less flow.
6. Hot air can pass uniformly from both sides of the heating wire with large air volume, less wind resistance, and lower heating wire temperature.
