Pre - Burning Debinding Industrial Ceramic Furnace
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
Yan Yang Tian
Product Description

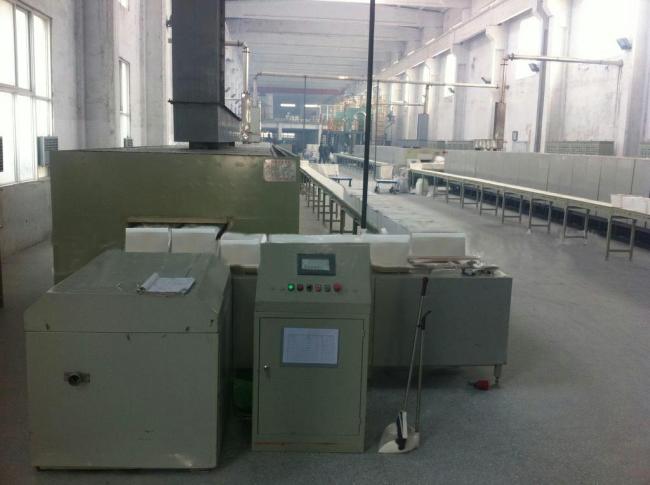

Electronic Ceramic Debinding ( Pre - Burning ) Electric Heating Push Plate Furnace
1, Product Overview
Industrial ceramics, electronic ceramics
2, Parameter attribute table
| The main technical parameters | |
| Chamber length |
9-12m |
| Common temperature | 800-1000℃ |
| Temperature uniformity | ± 5 ℃ (constant temperature area) |
| Maximum operating temperature | 1100℃ |
| Product into furnace mode | Single push plate, double push plate |
| Supporting push plate conventional size | 250mm×250mm；320mm×320mm |
| Heating temperature zone | Zones 6-9, 10-15 temperature control points, up and down temperature control |
| Control mode | SCR control, intelligent instrument PID continuous adjustment, PLC + touch screen automatic monitoring |
| Furnace structure | Modular assembly |
| Furnace atmosphere | Design multichannel gas inlet and outlet mechanism |
| Propulsion mode | Fully automatic hydraulic propulsion external circulation system |
| Electric heating element | High temperature electric heating alloy wire / silicon carbon rod |
3, Product Usage
Mainly used for debinding or pre-burning of various electronic ceramic products such as piezoelectric ceramic buzzer, piezoelectric ceramic transducer, piezoelectric ceramic atomized transducer and electronic ceramic ignition structure porcelain, sliding porcelain, 95 porcelain and so on. Suitable for continuous production.
If you have a special sintering process, please contact us, we will tailor it for you!
4, FAQ
Q: Are you trading or manufacturer ?
A: We are a company, and we have our own factory
Q: How long is your delivery time?
A: Negotiable
A: We are a company, and we have our own factory
Q: How long is your delivery time?
A: Negotiable
Please contact us for details, we will tailor-made for you!
