Roller Type 850℃ Glass Annealing Electric Industrial Furnace
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
Negotiable
Brand:
Yan Yang Tian
Product Description
Glass Annealing Furnace Commonly Used Temperature ≤800 ℃ Glass Annealing Furnace
1, Product Overview
Roller-type electric heating rolled glass continuous annealing furnace, Non-standard customized equipment.
Roller material: according to the needs, cast heat-resistant steel, quartz ceramics, ceramics are used in different parts of the furnace
Tube and other materials
Control mode: PID intelligent control system, multipoint control
2, Parameter attribute table
| The main technical parameters | |
| Furnace length |
26-60m |
| Chamber width |
800-2500mm |
| Roller diameter |
Ø60-120mm |
| Temperature control precision |
±1℃ |
| Maximum operating temperature |
850℃ |
| Transfer method |
Helical gear + roller rod transmission |
|
Common temperature |
≤800℃ |
| Starting power |
120-350Kw/380V |
| Roller speed | Frequency control |
| Furnace structure | Modular; on-site assembly |
3, Product Usage

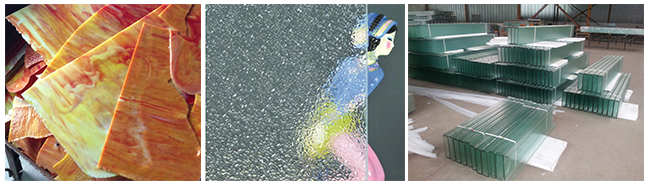

- Non-standard customized equipment, mainly used for thermal annealing of colored glazed glass, embossed glass, microcrystalline glass, jade glass.
- It can also be used for the hot bending and hot-melting functions of instrument glass, lighting glass and functional glass.
Please contact us for details, we will tailor-made for you!
