Flame Retardant PVC Tape For Electric Insulation Heat Transfer Insulation Tape For Electrical Products
Flame Retardant PVC Tape For Electric Insulation Heat Transfer Insulation Tape For Electrical Products
10 rolls / shrink , 500 rolls / carton Please inquiry us
Bagplastics@vip.163.com
| Code | Thicknes(MM) | Adhesion(N/CM) | Tensile Strength(N/CM) | Elongation | Voltage(V) |
| HP-T11 | 0.11 | 1.4 | 14 | 160 | 600 |
| HP-T12 | 0.12 | 1.4 | 15 | 160 | 600 |
| HP-T13 | 0.13 | 1.4 | 17 | 160 | 600 |
| HP-T15 | 0.15 | 1.4 | 19 | 160 | 600 |
| HP-T16 | 0.165 | 1.4 | 18 | 160 | 600 |
| HP-T18 | 0.18 | 1.5 | 19 | 165 | 600 |
| HP-T20 | 0.2 | 1.6 | 20 | 170 | 600 |
| HP-T25 | 0.25 | 1.6 | 23 | 180 | 600 |
| Material description Please inquiry us Bagplastics@vip.163.com |
General physical characteristics | |||
| The type of glue | Synthetic rubber | Adhesion (stripping) N/25mm to steel plate ASTMD1000 |
≥4.5 | |
| Tensile strength N/cm | 32 | |||
| Substrate | PVC | Elongation (retention) ASTMD1000 |
≥280% | |
| Thickness | Synthetic rubber | 0.075 mm (75μm) | ||
| PVC | 0.105 mm(105μm) | Withstand voltage Ul510 |
600 | |
| Amount to | 0.18 mm(180μm) | |||
| Flame resistance S (ASTMD1000) |
15 | |||
| Color | Red,yellow,blue,black,white,gray | Heat resistance level | 80℃ | |
| Expiration date | The original packaging, since the right to hold the delivery within 12months, in 21 ℃ (70 ℉), and 50% relative humidity environmentpreservation |
|||
Material: Please inquiry us
Bagplastics@vip.163.com
with soft polyvinyl chloride (PVC) film as the backing material, then coated rubber is solvent rubber pressure sensitive glue.
Specification:
1. Thickness:0.1mm-0.2mm
2. Peeling strength: ≥ 3.5(N/in)
3. Tensile strength: 16-28N/cm
4. Percentage elongation: ≥ 150%
5. Voltage breakdown: ≥6.5KV.
Please inquiry us
Bagplastics@vip.163.com
Features: color diversity, durable, high intensity, sticky tape take the gender is good.
Application: apply to electric wire, cable winding, transformer, power distribution equipment, automobile circuit, electrical engineering, household electrical, motor, capacitor, regulators etc all kinds of motor, electronic parts of the insulation fixed use.
Width:10mm,19mm or as your needs
Length: 10ydne
Thickness: 0.11mm-0.19mm

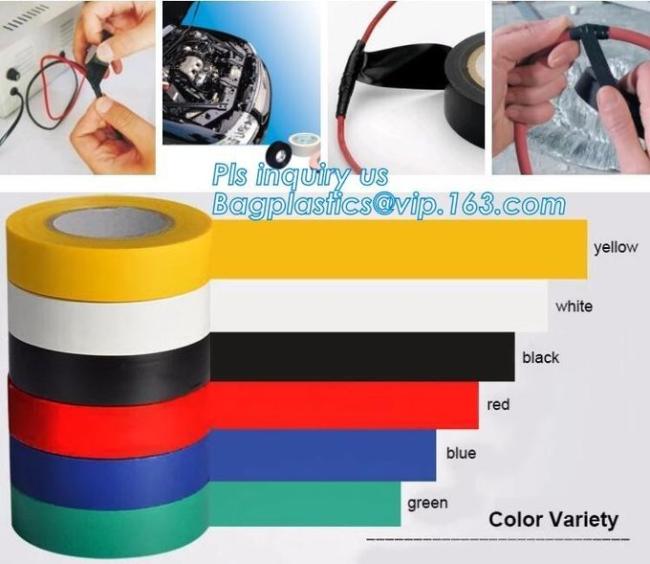

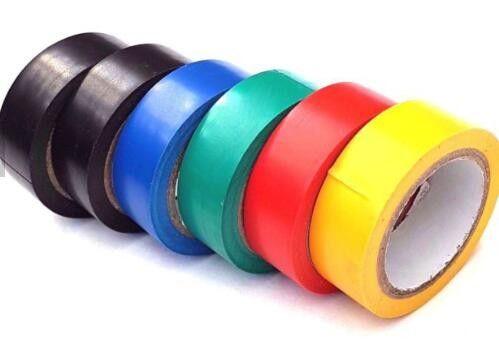

Color: Black, Grey, Red, Yellow, White, Green, Blue, Light blue etc.
Bagplastics@vip.163.com
1rolls/shrink wrap , 10 rolls/shrink wrap 200rolls/carton
Any other packing According to clients requirement
