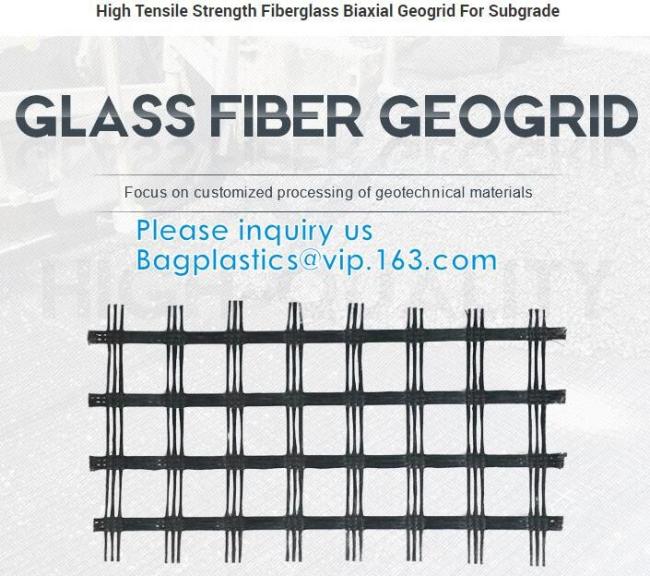

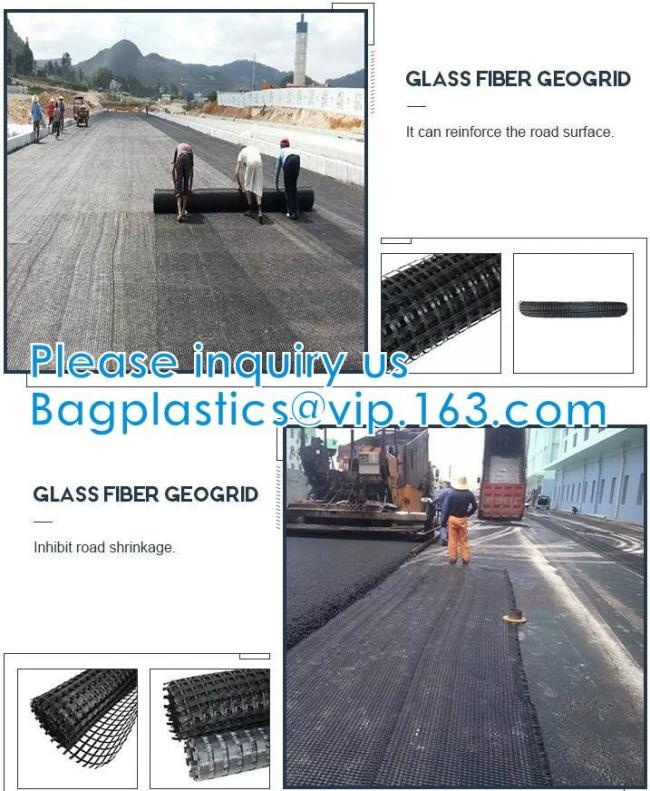

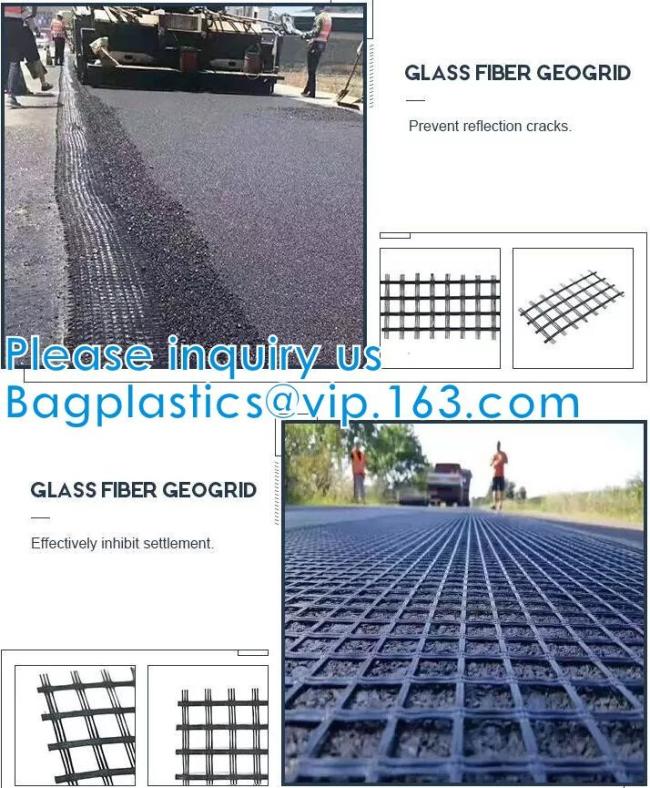

Fiber Geogrid For Road Building Construction Fiberglass Biaxial Geogrid With Nonwoven Geotextile Soil Stabilization
Fiber Geogrid For Road Building Construction Fiberglass Biaxial Geogrid With Nonwoven Geotextile Soil Stabilization
Please inquiry us
Bagplastics@vip.163.com
Polyethylene plastic uniaxial geogrid
one kind of high strength reinforced composite material ,it is made of high density polyethylene (HDPE) as raw material, which is produced by extrusion, punching and longitudinal drawing. Laying in the soil, through the mesh grille and soil interlock and interlock function, constitute an efficient stress transfer mechanism, so that local load can be quickly and effectively spread to a larger area of soil to reduce local failure stress, improve the service life of engineering.
Please inquiry us
Bagplastics@vip.163.com
Bagplastics@vip.163.com
Mesh size: 25.4*25.4mm
Elongation: ≤15%
Covering rate: ≥20%
Roll width: 1-6m
Roll length: 30-100m

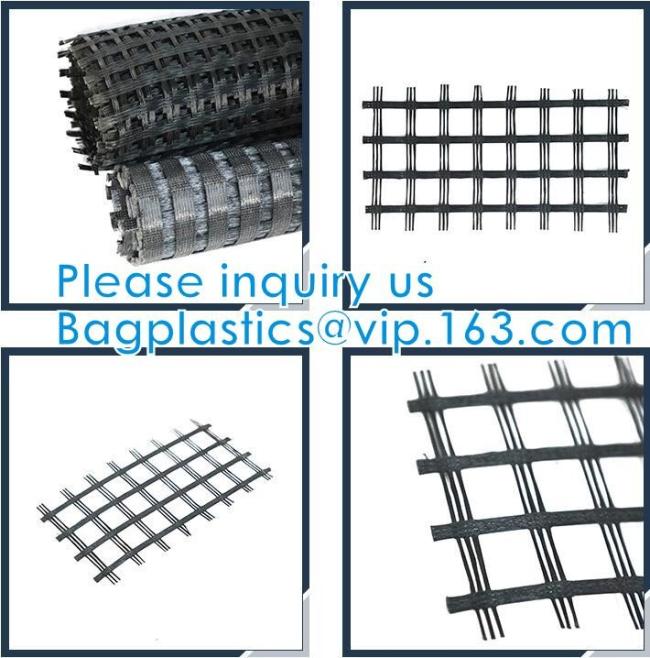

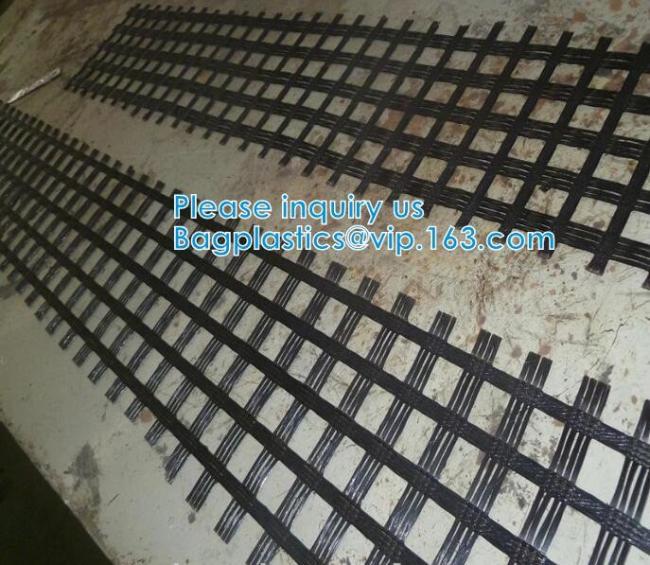

Polyester warp knitted geogrid technical datas
| Specs | Tensile strength (kN/m) | Mesh size (mm) | Elongation (%) | Covering rate (%) | |
| MD | CD | ||||
| TGSG30×30 | ≥30 | ≥30 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG50×50 | ≥50 | ≥50 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG80×80 | ≥80 | ≥80 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG100×100 | ≥100 | ≥100 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG120×120 | ≥120 | ≥120 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG150×150 | ≥150 | ≥150 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG180×180 | ≥180 | ≥180 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG200×200 | ≥200 | ≥200 | 25. 4×25.4 | ≤15 | ≥20 |
| TGSG260×260 | ≥260 | ≥260 | 25.4×25.4 | ≤15 | ≥20 |
| TGSG300×300 | ≥300 | ≥300 | 25.4×25.4 | ≤15 | ≥20 |
Packaging & Delivery
Bagplastics@vip.163.com

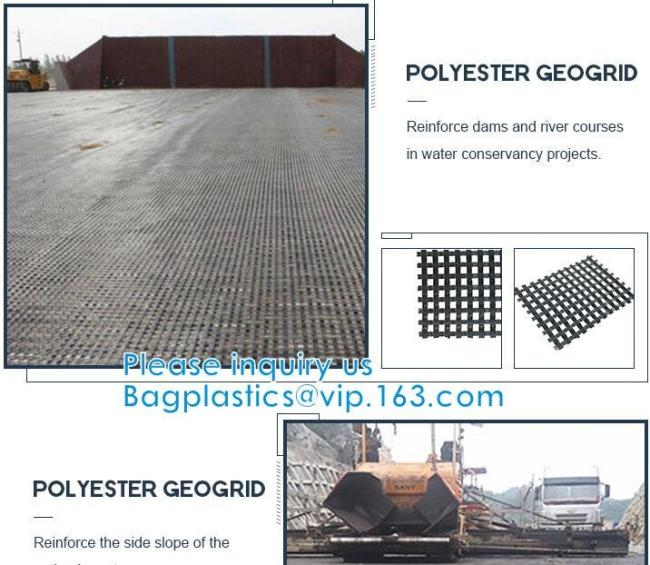

Polyester Biaxial Geogrid
Polyester uniaxial geogrid
5mmx5mm 12K T700 carbon fiber mesh carbon fiber geogrid for road building Please inquiry us
Bagplastics@vip.163.com
Material: 100% real carbon fiber
Tow size: 12k T700
Grade: A
tensile strength: more than 4900MPa
tensile modulus: more than 240GPa
Width: 1 meter
Length: 10 meters
Grid size: 5mmx5mm ,10mmx10mm or Customized
Thickness: about0.25mm/0.28mm
Packing: roll on tube and packed with carton.
If you want 20m , 30m..., it will come in one piece.
- Strong permeable pavers are structured with 19.7 in. x 19.7 in.x 1.9 in. height (500x500x48 mm), cover 11 sf.(1 sm)
- Applicable to residential and commercial areas where you have vehicle, pedestrian and bike traffic
- Can be filled with gravel, seeded or sodded with grass or just laid to protect yard and prevent rutting and mud
- Robust compression strength equal to concrete, while having natural, paving strong enough for cars and trucks, durable under 200 ton/sqm.
- Environment-friendly, better than concrete or blacktop, 100% permeable, help reduce flooding and runoff, and keep water away from your front door Please inquiry us
Bagplastics@vip.163.com
Plastic grass paving grid is made from PP or HDPE (high-molecular polyethylene) with fiber and age resistor, using high pressure to inject plastic to form bee nest-like shaped shell, with stereo space and support level. It’s widely used in the parking lot, fire exit, fire climbing surface, pavement etc. Since it can protect the grass, it is also known as the green grass protection mat.
- Perfect Greening: Grass grids cover more than 95% grass area with complete green effect, it can absorb noise, dust, heat and reduce the glare produced by the ground reflection. Please inquiry us
Bagplastics@vip.163.com - Save investment: Grass grids combined parking garage and greening, saving the land.
- Formation integrity: a unique and strong grass grid snap-lap the whole pavement together into a flat overall, to avoid local depression, suitable for exercise, entertainment, and leisure.
- High strength and durability: Grass grid using patented technology, the maximum compression capacity is 200 tons/sqm, greater than regulatory requirements of the saving fire plane 32 tons/sqm. Its stable performance, anti-UV, anti-acid corrosion, and anti-wear pressure make the fire exits, fire climb surface into a green surface.
- Permeability: the load-bearing layer of gravel to provide a good permeability function, the excess water into the ground and increase underground water storage to prevent subsidence. It’s not only could oxygen permeability also can purify the air.
- Protection of grass: the load-bearing layer of gravel to provide a certain amount of water features, enabling the growth of grass, grass can grow to the gravel layer. Please inquiry us
Bagplastics@vip.163.com - Water conservation: Grass has water conservation functions, which can reduce urban inland inundation.
- Good weather resistance: can be used for snow riding channel for -40-90 C.
Technical Parameters;

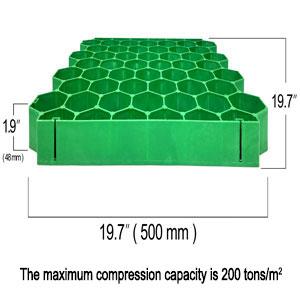

- Size: 500*500*48mmH
- Material: UV resistant PP / HDPE
- Color: Green or Black
- Carrying capacity: ≤ 200tons/m2
- Quantity: 4pcs/sqm
- Weight: 4.77kgs/sqm

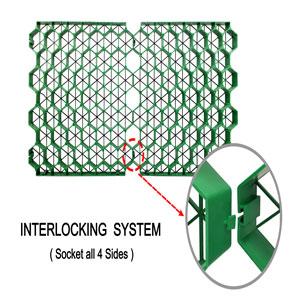

How to install:
- Start in corner of the project area with male tabs of first grid facing towards the center of the area
- Line up female slots of next grid over male tabs of the first grid.
- Lock grind into its place.
- Repeat until the area is covered with a connected grid.
- Gravel fill; Fill the grid with the desired aggregate to top of the grid. Lightly compact to settle.
- Grass fill; Fill the grid with soil and seed.
Applications
|
|
|
|
|
|---|---|---|---|
|
* Emergency grass access roads. |
* Residantial access and parking spaces. |
* Grass Parking Lots. |
Please inquiry us
Bagplastics@vip.163.com |
Plastic Hdpe Cellular Textured Gravel Stabilizer Typar Geocell Recycled Plastic Pavers Textured Perforated Driveway
Please inquiry us
Bagplastics@vip.163.com

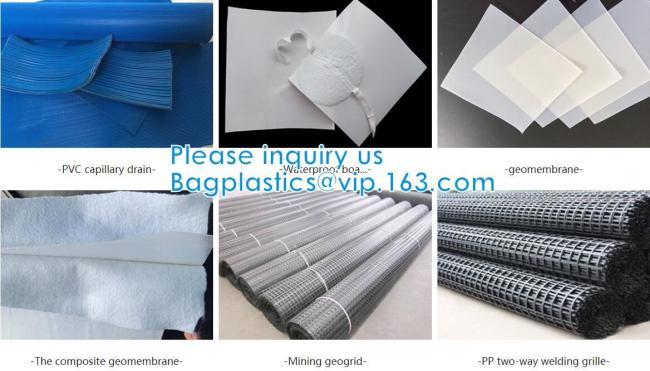

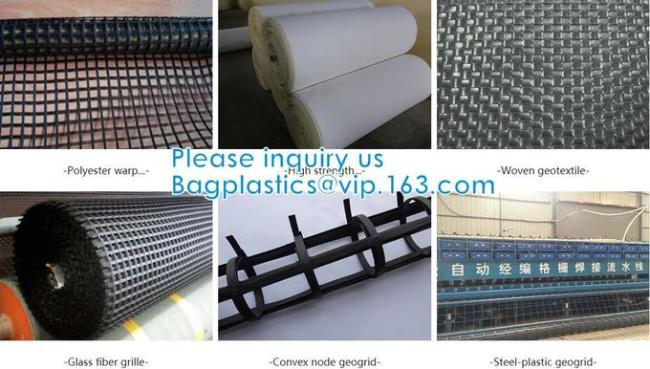

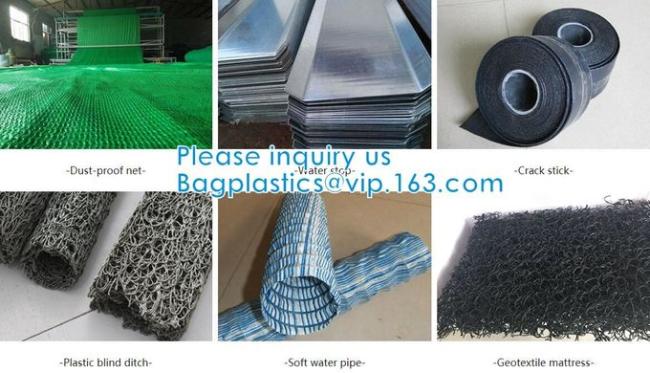

Waterproof or drainage material
Drainage Geonet
Plastic drainage board
Geocell
geogrid
Fiberglass Geogrid
uniaxial geogrid
Polyester mining geogrid
PP/PET welded geogrid

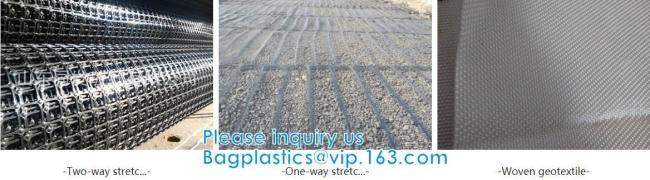

Biaxial Stretch Plastic Geogrid
Geomembrane
PVC Geomembrane
Composite geomembrane
Rough surface geomembrane
Smooth surface geomembrane
Geotextile

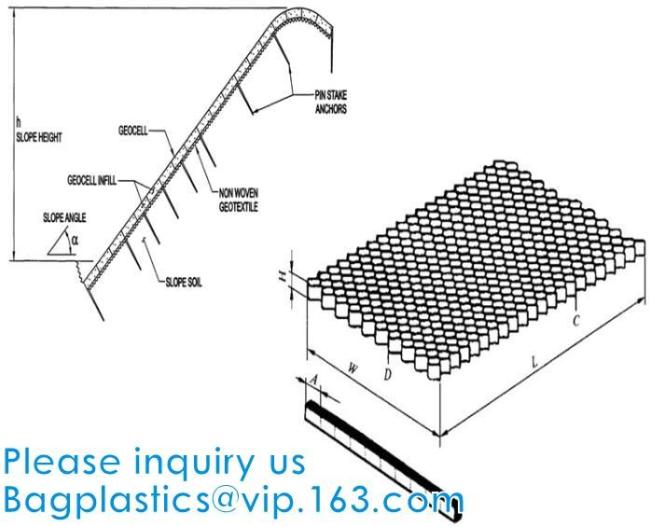

Geocell is made of a new type of high-strength geosynthetics, which is popular with both domestic and abroad, which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of three-dimensional reticular formation. Please inquiry us
Bagplastics@vip.163.com
Easily folding and convenient for transportation.
When be in construction, the geocell can be pull into a network and launched into a three-dimensional honeycomb grid. As it filled in soil, macadam, concrete or other granular materials, constituted to be a construction, which has strong sidewise restraint and high rate of stiffness.
Please inquiry us
Bagplastics@vip.163.com
Product Function
1.To stable the roadbed of railway.
2.To stable the roadbed of highroad.
3.To bear the load of dike or retaining wall.
4.To the improvement of shallow riverway.
5.To support the pipeline and sewer.
6.For the prevention of landslide by useing geocell as a heavy-duty hybrid force retaining wall.
7.To be used as independent wall, wharf and breakwater, etc.
8.For the desert, beaches and the riverbed, the river bank`s regulation.
| Material Properties | Unit | Test Method | |||||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||||
| Enviromental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||||
| Enviromental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||||
| Carbon Black Content | % | >1.5 | ASTM D 1603 | ||||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||||
| Strip Puncture Resistance | N | 450 Please inquiry us Bagplastics@vip.163.com |
ASTM D 4833 | ||||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |||
| Seam Efficiency | % | 100 | GRI-GS13 | ||||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | Please inquiry us Bagplastics@vip.163.com |
||||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | Please inquiry us Bagplastics@vip.163.com |
||||||
gravel stabilizer gravel grids hdpe geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technics .It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils,granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides. Please inquiry us
Bagplastics@vip.163.com
1, retractable and transport can be shrunk and stacked, the construction can be mesh, fill in the dirt, gravel, concrete and other loose material, with strong lateral restrictions and the stiffness of the structure.
2, light material, abrasion resistance, stable chemical properties, photooxidation aging, acid and alkali, applicable to different soil and desert soil conditions.
3, high lateral limit and non slip, anti deformation, effectively enhance the bearing capacity of the subgrade and dispersion load.
4, change the geocell height, welding geometric size can meet the needs of different projects.
5, flexible, small volume, convenient connection, fast construction speed.
Please inquiry us
Bagplastics@vip.163.com
1, for the stability of highway, railway subgrade.
2, used to bear the gravity of the embankment and shallow river management.
3, to prevent the landslide and the gravity of the mixed retaining wall.
4, in the face of soft foundation. The use of geotechnical grid can greatly reduce the labor intensity of construction, reduce the construction speed of subgrade thickness, good performance, greatly reduce the cost of the project.
ngravel stabilizer gravel grids HDPE geocell recycled plastic pavers Specification
|
Height (mm) |
Welding distance (mm) |
Sheet thickness(mm) | Tensile yielding strength of the cell≥(MPa) | Seam peel strength≥(N) | ||
| smooth | textured | |||||
| TGLG-50-400 | 50 | 400 | 1-1.1 | 1.4-1.5 | 20 | 500 |
| TGLG-100-400 | 100 | 400 | 1-1.1 | 1.4-1.5 | 20 | 1000 |
| TGLG-150-400 | 150 | 400 | 1-1.1 | 1.4-1.5 | 20 | 1500 |
| TGLG-200-400 | 200 | 400 | 1-1.1 | 1.4-1.5 | 20 | 2000 |
| TGLG-75-330 | 75 | 330 | 1-1.1 | 1.4-1.5 | 20 | 750 |
| TGLG-100-330 | 100 | 330 | 1-1.1 | 1.4-1.5 | 20 | 1000 |
| TGLG-150-330 | 150 | 330 | 1-1.1 | 1.4-1.5 | 20 | 1500 |
| TGLG-200-330 | 200 | 300 | 1-1.1 | 1.4-1.5 | 20 | 2000 |
Please inquiry us
Bagplastics@vip.163.com
Q:Can you send samples?
Bagplastics@vip.163.com
Bagplastics@vip.163.com
Q:How long is the delivery time?
Please inquiry us
Bagplastics@vip.163.com
