Opening Ton Bags 0.1um Automatic Slitting Machine

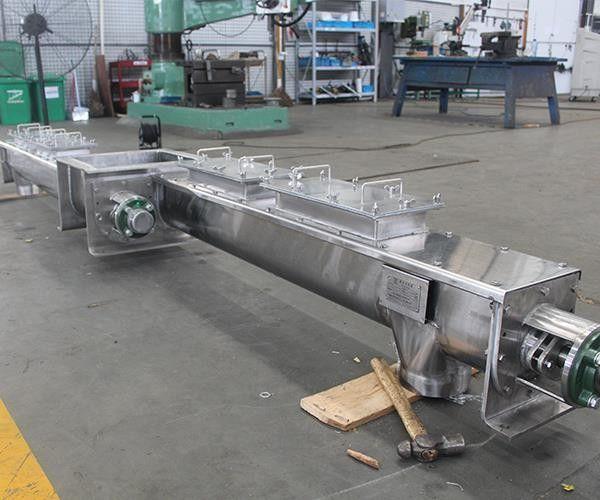

Slitter with hopper and screw feeder for opening ton bags

Automatic unpacking system is mainly used to unpack sacked raw material (such as plastics and additives, mixture, auxiliaries, dry powder, granule material in the trade of chemical industry, coating. medicine, food, electronic, paper making, military industry and other industries.

Function and characteristics

◆ Reduce the amount of workers as well as the labor intensity.

◆ No dust leakage and improve the operating environment.

◆ Never pollutes the material and low material loss.

◆ Can satisfy the food level, explosion- proof, toxic materials and other special conditions.

◆ Automatic and intelligent operation: system automatic monitoring and real time display of running state, automatic counting and measurement, interlock, alarm signal output and feedback can interlock with the customer s central DSC control system.

◆ Other functions like automatic de-palltizing from stacking pallet, unpacking, automatic waste bag collecting and packing, pallet automatic recycling, material handling, dust collecting, weighing and dosing can realize the automatic and intelligent production.

Main parameters

◆ Unpacking capacity: 2000 bags/ hour (maximum).

◆ Wide range of unpacking: 0.1kg ~ 70kg/ bags

◆ Packing bags’ material: kraft paper, plastic film, woven bag, jute bag, compound bag etc.

◆ Material loss rate: 1/1000 ~ 1/10000

◆ Dust emission concentration: 1mg/m3~30mg/m3

◆ Dust collection efficiency: 99.9% ~99.999%

◆ Minimum dust particle size: 0.1um
