PVC PE Cable Making Equipment Copper Flxible Cable Copper Cable Extrusion Machine Power Cable Mnufacturing Machine
One Core Wire And Cable Machinery Flxible Copper Wire Extrusion Machine
PVC insulated flexible single copper conductors
1. Construction : Bare Copper Conductor stranded , PVC Insulated ( yellow , black , white etc )
A. bare copper conductor stranded :
Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel,
copper cladding aluminum .
2. PVC insulated --- 70/80 cable extrusion machine
Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire ,
data cable , network cable etc insulation

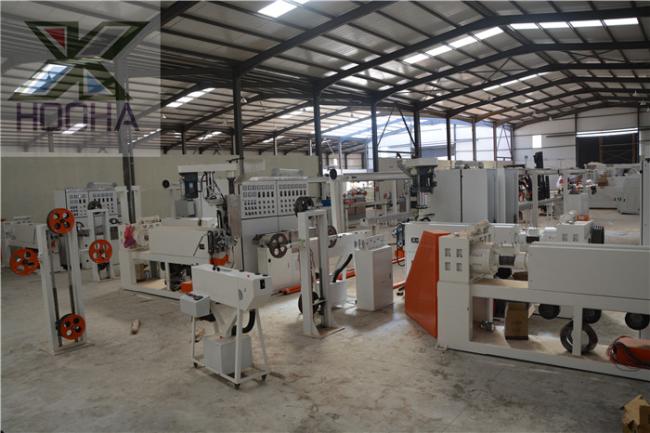

3. machine devices as reference
1. Magnetic Power Tension Pay Off stand
2. Dancer / straigter
3. 70mm Main extruder
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer( selectable )
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. PLC Master control cabinet
| Model: | HOOHA -70 | Consisting Components | |
| Pay off bobbin size: | 400-630 mm | Pay off stand | 1 |
| Screw size: | 70mm | Dancer | 1 |
| Motor control: | 22/30 kw inverter | 70mm extruder | 1 |
| Screw speed: | 110 rpm | loader & dryer | 1 |
| Output capacity: | 210 kg/hr | Crosshead | 1 |
| Max. accumulating length | 200 m | Moving trough | 1 |
| Finished cable diameter | 2.0---12.0 mm | Main cooling trough | 1 |
| Max. line speed: | 450 m/min | Water wiper | 1 |
| Diameter controller | 1 | ||
| Mark printer | 1 | ||
| Accumulator | 1 | ||
| Capstan | 1 | ||
| Spark tester | 1 | ||
| Meter counter | 1 | ||
| Take up | 1 | ||
| Control box | 1 |
||
4. Afetr service
1). Delivery dates: 45 days
2). Payment: TT or L/C
3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
6) Warranty: 12 month
5. Contact information:
Phone: 008613763134250(China)
00447937462340(UK)
Http//:www.hoohahk.com
Add:No. Beice District, Humen Town,
Dongguan City, Guangdong Province,China
6. Where are we:
Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
