Wire And Cable Extrusion Machine, Algeria Building Cable Making Machine

1.multi cores flexible wire

single or 2 cores,3 cores , PVC insulated cords consisting of 20-100 fine copper wires.

1.1.Construction

Bare Copper Conductor stranded , PVC Insulated (yellow , black , white etc)

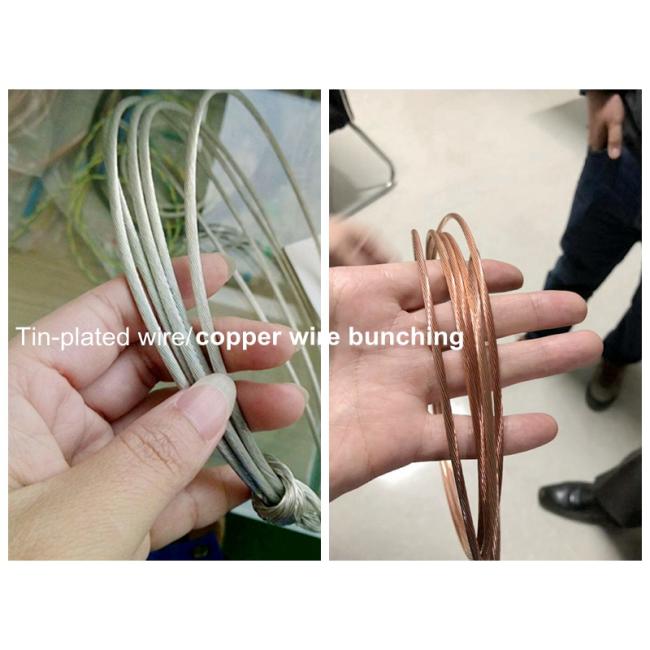

A. bare copper conductor stranded :

Suitable for above 7-100 fine silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .

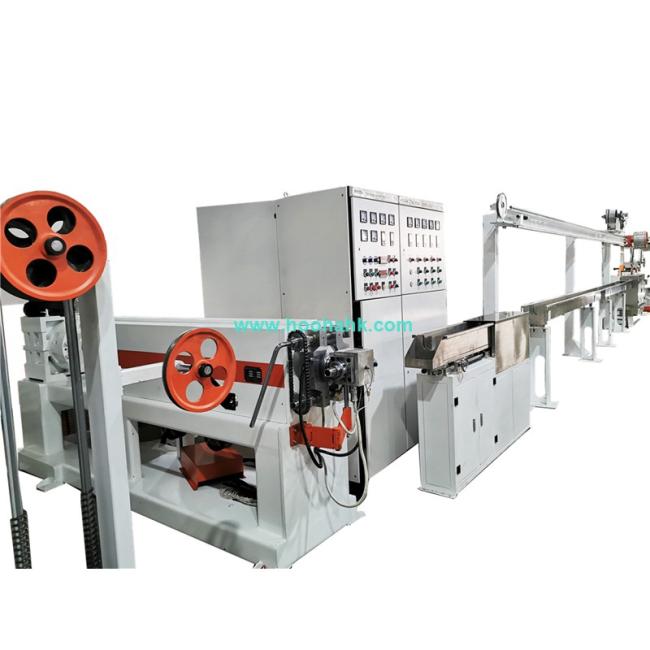

2. PVC insulated --- PLC 80+35 cable extrusion machine

2.1.Application

Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable , building cable etc insulation and sheath

2.2.Related machine devices

1.Double head magnetic power tension pay off stand
2.Dancer / straigter
3.80mm Main extruder
4.Automated loader & dryer
5.Crosshead
6.Single /Double layer Moving trough
7.Main cooling trough
8.Water wiper
9.Digital Diameter controller
10.Mark printer( selectable )
11.Accumulator
12.Capstan
13.15KV Spark tester
14.Meter counter
15.Dual shaft type Take up
16.Master control cabinet

17.35mm strip extruder machine/50 hozirontal extrusion machine

18. 1860 auto coiler and wrapping

3. MAIN PARTS BRAND
1. Motor: Siemens
2. Inverter: Germany-Siemens or YASKAWA Japan
3. Electric equipment: Siemens and Omron
4. Bearing: NSK from Japan
5. Belt: Mitsubishi

The pay off

1.The size can be 500/630/800/1250/1600mm

2.The head can be single and dual, or Tripe and more

4.The manual, motor,magnetic powder control the pay off

The feeding and heating part

1.The speed can follow the machine working speed

2.The Famous brands we use

3.10 years quality guaranteen



The Siemens system PLC control box

1.The Omron/Schneider/RKC/YANGMING can be chose for control table

2.The system SIEMENS

3.The touch screen Siemens

Customer Cases

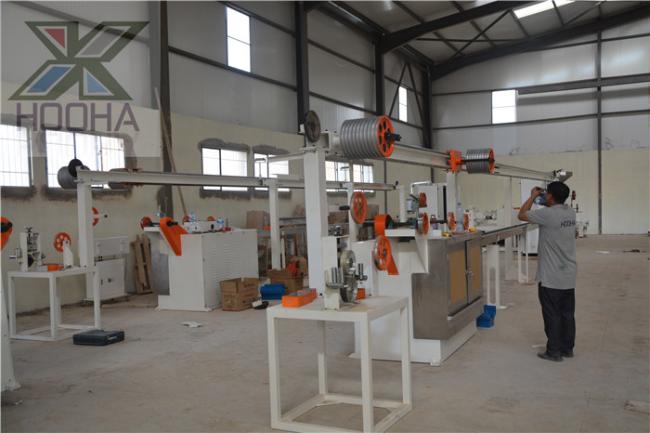

We contracted the Algerian government-level cable project in 2018.

Customers from Egypt come to visit our factory.

Customer from Dubai was testing equipment.

Dinner with customers in the U.S.







Product packaging

The raw material packing

1.The CCA copper will packing anti the oxidation way

2.The PVC/PE/FEP packing will use the paper box and wood packing

3.The tape also use the paper box add wood package

The machine packing

1.usually use the PE foam package

2.The base need wood package

3.The tape will fixed the machine on the container



The machine package arrange

1.The machine will arrange the drawing of each machine on the container before loading

2.save the space for our client

3.ensure the machine delivery 100% safty
