4x95 Mm2 Cable Sheathing Machine,25 Years Senior Engineer Team
4X95 Mm2 Cable Sheathing Machine,25 Years Senior Engineer Team
1.Application

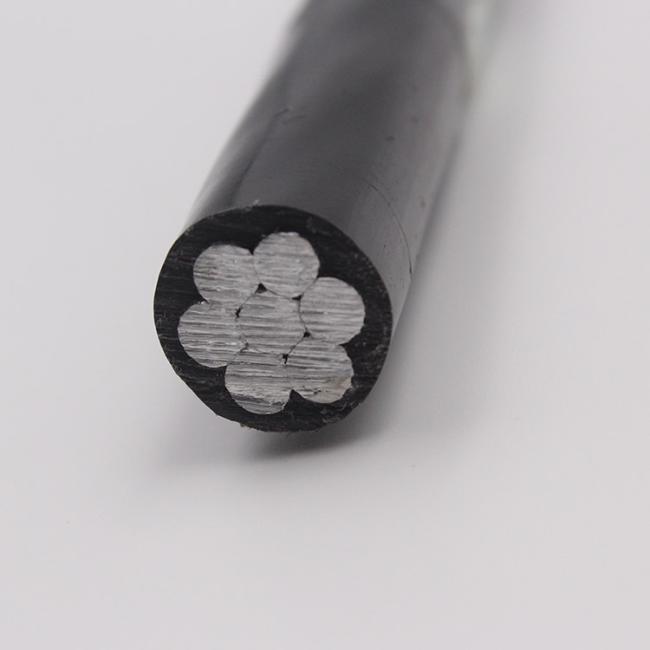

Suit for PVC /XLPE plastic Sheath , used for power cable , building cable , ABC cable ,Control Cable etc .
2.Machine devices as reference
Model NO.:120MM
Certification:CE, ISO
Specialty: High Speed
Motor: Germany-Siemens
Inverter:Japan-Yasikawa
Control System: Master Control
Screw Speed: 95rpm
Max. Line Speed: 90 m/min
Finished Cable Diameter: 10mm-80mm
Electric Element:Siemens and Omron
Maintance:1 Year
Export Markets: Global
3. MAIN PARTS BRAND
1.Motor: Siemens
2.Inverter: Germany-Siemens or YASKAWA Japan
3.Electric equipment: Siemens and Omron
4.Bearing: NSK from Japan
5.Belt: Mitsubishi

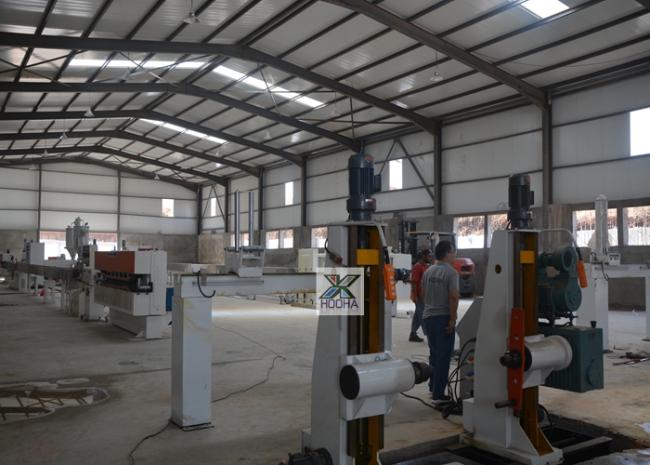

| Description | QTY | Model: | 120 | |
| Pay off stand | 1 | Pay off bobbin size: | 1000--2000 mm | |
| caterpillar | 1 | Screw size: | 120mm | |
| Main extruder | 1 | Screw speed: | 95 rpm | |
| loader & dryer | 1 | Output capacity: | 650 kg/hr | |
| Crosshead | 1 | Temperature control: | 11 zones | |
| Moving trough | 1 | Finished cable diameter: | 8.0---80.0 mm | |
| Main cooling trough | 1 | Caterpillar: | 2500 kg | |
| Water wiper | 1 | Max. line speed: | 90 m/min | |
| Diameter controller | 1 | Take up bobbin size: | 1000--2000 mm | |
| Mark printer | 1 | |||
| Caterpillar | 1 | |||
| Spark tester | 1 | |||
| Meter counter | 1 | |||
| Take up | 1 | |||
| PLC Control box | 1 |
Q: What is your team experience at wire and cable engineer field ?
1.Our equipment engineer has 30 years experience
2.Our cable equipment designer has 25 years experience
3.Our wire and cable production manager has 20 years experience
4.Our CNC auto machine engineer team has 20 years experiences
