80mm Power Cable Wire Manufacturing Machine Electric Cable Jacket Sheath PVC PE LSZH Nylon Xlpe Cable Extruding

Jacket sheath PVC PE LSZH Nylon xlpe 80mm power cable wire extrusion Machine

1. Application:Application:

It is for insulating, coating, stripping single or two layer wire and cable with extruding PVC, XLPE and LDPE compound material. Also it is suit for making power cable, building wire, communication cable.

2. Technical Characteristics

1. Extrusion Wire Gauge: decide by customer

1) Inlet Wire Diameter:Φ1mm-Φ12mm

2) Finished Wire Diameter: Φ3 mm～Φ15 mm

2. Screw Diameter: the screw diameter is 80 mm.

3. Extrusion Capacity (when the head is turned on): Φ80 Machine=max200 kg/h

4. Linear Velocity: 5～250 m/min

5. Length of Production Line: 26 m

6. Installed Capacity: about 60 KW/h

7.Color: sky Blue/ customize

3. Φ80 Extrusion Host

1) Applicable Material: PM—PE,PE

2) Maximum Extrusion Capacity: 100kg/hr.

3) Finished wire diameter:3-15mm

4) Mechanical Center Height: 1000mm

5) Ratio of Length and Diameter: 25:1

6) Compression Ratio: 1:2.8

7) Screw : Diameter:Ø80mm

Rotation Rate of Screw: 0—100RPM

Material of Screw: 38CrMoA1A alloy steel, whole tooth nitrogen treatment, chrome-plated polished surface

8) Material of Screw Cylinder: diameter is Ø80mm, 38CrMoA1A alloy steel, nitrogen treatment and precisely grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than that of the front surface of the screw and the screw thread.

9) Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast steel, oil-bath lubrication, tooth-face high-efficiency quenching and precisely grinding, the bottom of the reduction box cooling the lubricating oil through by circulating cooling water, compact construction, little noise.

10) Electric Heating: gross power is 12 kw , 380V, with even three-phase separated flow.

Screw cylinder electric heating zone 6, the cast aluminum heating ring heating is affixed

with cooling air duct.

Head electric heating zone 1, heating by cast aluminum heating ring.

Eye die electric heating zone 1, heating by the electro-thermal tablets.

11) Cooling: Screw cylinder zone 6, use 6 sets of cooling fans( 180W).

12) Control of Temperature: Use the automatic temperature control gauge made in Yangming, Taiwan.

13) Host Motor: 40HP SIEMENS OF Germany, U.S Emerson inverter is adjustable.

14) clamp machine's head: using the ratchet quick wrench, chain transmission double side clamping.

4. After service

1). Delivery dates: 45 days
2). Payment: TT or L/C
3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

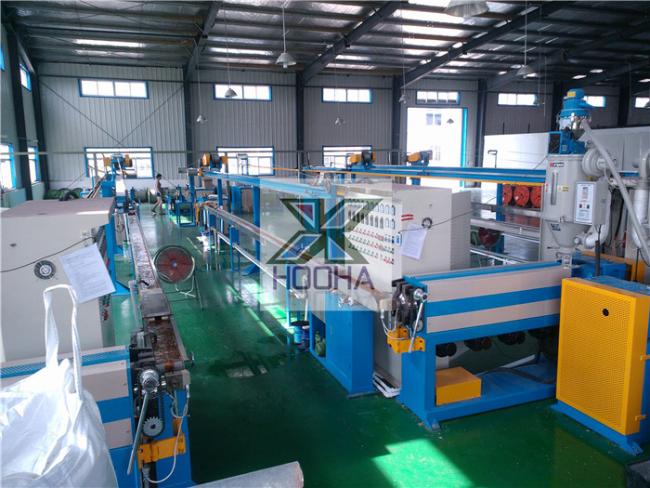

5. Factory & Workshop &Warehouse

Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.

6. Package

Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

Plywood frames and Stretch film are used to avoid breakage in transit.

7. FAQ

8. Why choose us?

1. We are the cable equipment manufacturer.

2. Professional engineer,long-term to research and development for to cable equipment .

3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

4. Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

5. Technical support and spare parts service.

6. Well-experienced in overseas to support customer with technical,training,operating.

7. Responsible and Good communication and customer service skills,and save time and human cost for customers.

8.Complete Foreign Trade Team.

9. Working efficiently,quickly response to customer needs.
