1- 4 Cores Cable Manufacturing Machine PVC Cable Extrusion Line High Capacity Copper Conductor Wire Extruder Equipment
1- 4 Cores Cable Manufacturing Machine , PVC Cable Extrusion Machine
1. Application :
Suit for PVC /PE plastic extrusion maily used in
1. fire alam cable
2. electrical wire , house wire
3. data cable , network cable
4. building cable etc insulation and sheath
2. machine devices as reference
1. pay off stand
2. Dancer / straigter
3. 80mm Main extruder
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer( selectable )
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. Master control cabinet
18.35mm strip extruder machine
3. MAIN PARTS BRAND
1. Motor: Siemens
2. Inverter: Germany-Siemens or YASKAWA Japan
3. Electric equipment: Siemens and Omron
4. Bearing: NSK from Japan
5. Belt: Mitsubishi
| HOOHA-extrusion line | ||||||||||
| NO | Model | Screw | Main Extruder Output | Main extruder Motor Power | Co-Extruder Output | Co -extruder Motor Power |
||||
| Dia | L/D | Rotation | ||||||||
| (mm) | Ratio | Speed | ||||||||
| (r/min) | (kg/h) | (kw) | (kg/h) | (kw) | ||||||
| 1 | 30 | 30 | 25 | 40~100 | 10~12 | 7.5 | 0 | 0 | ||
| 2 | 50 | 50 | 26 | 40~100 | 60~70 | 15 | 0 | 0 | ||
| 3 | 50+ | 50 | 26 | 40~100 | 60~70 | 15 | 10~12 | 3.7 | ||
| 4 | 65 | 65 | 26 | 40~100 | 80~100 | 22 | 0 | 0 | ||
| 5 | 70+35 | 70 | 26 | 40~100 | 110~130 | 30 | 10~12 | 3.7 | ||
| 6 | 70+40 | 70 | 26 | 40~100 | 110~130 | 30 | 30~40 | 11 | ||
| 7 | 80 | 80 | 26 | 40~100 | 180~200 | 37 | 0 | 0 | ||
| 8 | 80+40 | 80 | 26 | 40~100 | 180~200 | 37 | 30~40 | 7.5 | ||
| 9 | 80+50 | 80 | 26 | 40~100 | 180~200 | 37 | 60~70 | 11.25 | ||
| 10 | 90 | 90 | 26 | 30~90 | 240~260 | 55 | 0 | 0 | ||
| 11 | 90+50 | 90 | 26 | 30~90 | 240~260 | 55 | 30~40 | 7.5 | ||
| 12 | 100 | 100 | 26 | 30~90 | 390 | 55 | 0 | 0 | ||
| 13 | 120 | 120 | 26 | 30~90 | 640 | 90 | 0 | 0 | ||
| 14 | 150 | 150 | 26 | 30~90 | 860 | 110 | 0 | 0 | ||
| NO | Product size | Crosshead | Heating Zones of cylinder | |||||||
| Line Speed | ||||||||||
| (mm) | (m/min) | (kw) | ||||||||
| 1 | 0.15~0.80 | 0.2~1.0 | 10~600 | Fixed | Single | 4/6(U7) | 4 zone 2.4kw | |||
| 2 | 0.5~4.0 | 0.8~5.0 | 10~600 | Fixed | Single | 4/6(U7) | 4 z * 2.4kw | |||
| 3 | 0.5~4.0 | 0.8~5.0 | 10~600 | Fixed | Single+ stripe | 4/6(U7) | 4 z * 2.4kw | |||
| 4 | 1.0~10 | 2.0~12 | 10~600 | Fixed /manual | Single | U7~U14 | 4 z * 3.0kw | |||
| 5 | 1.6~12 | 2.0~15 | 10~700 | Fixed /manual | Single+ stripe | U7~U14 | 5 z * 4.0kw | |||
| 6 | 1.6~12 | 2.0~15 | 10~700 | Fixed /manual | Single+ stripe/skin | U7~U14 | 5 z * 4.0kw | |||
| 7 | 2.0~20 | 3.0~25 | 10~700 | Fixed /manual | Single | Manual centering | 5 z * 3.6kw | |||
| 8 | 2.0~20 | 3.0~25 | 10~700 | Fixed /manual | Single+ stripe/skin | Manual centering | 5 z * 3.6kw | |||
| 9 | 2.0~20 | 3.0~25 | 10~700 | Fixed /manual | Single+ stripe/skin | Manual centering | 5 z * 3.6kw | |||
| 10 | 5.0~35 | 9~30 | 10~700 | Fixed /manual | Single | Manual centering | 5 z * 4.5kw | |||
| 11 | 5.0~35 | 10~33 | 10~700 | Fixed /manual | Single+skin | Manual centering | 5 z * 4.5kw | |||
| 12 | 4.0~30 | 5.0~50 | 10~220 | manual | Single | Manual centering | 5 z * 4.5kw | |||
| 13 | 4.0~30 | 10~80 | 10~150 | manual | Single | Manual centering | 5 z * 4.5kw | |||
| 14 | 4.0~30 | 15~120 | 10~100 | manual | Single | Manual centering | 5 z * 4.5kw | |||
5. After service
1). Delivery dates: 45 days
2). Payment: TT or L/C
3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.

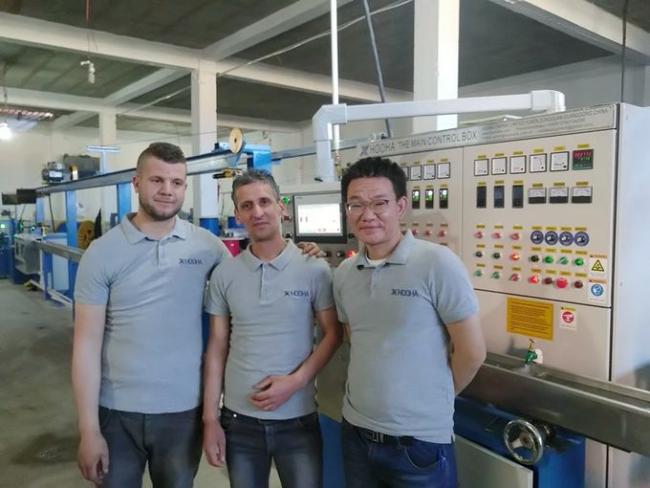

4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online
6. Factory & Workshop &Warehouse
| Company name | HOOHA Co.,Ltd |
| Established | 2003 |
| Main products | upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on. |
| Value added service | Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction. |
| Factory location | Humen Town,Dongguan City,Guangdong province. |
| Manufacturing Center | 4000 sqm |
| Showroom | More than 2000 sqm. |
Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.
7. Package
Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.
Plywood frames and Stretch film are used to avoid breakage in transit.
8. FAQ
| Question | Answer |
| MOQ | 1 set |
| Lead Time | 30~40 working days since starting producing. |
| Warranty Time | 1-year quality guarantee for the machine |
| Payment Terms | 30% T/T in advance for production material, 70% in the period of shipment. |
| Installation (3 choices ) |
a. HOOHA's Chinese installation team. |
| b. HOOHA's overseas installation co-partners in your country. | |
| c. DIY Guide: HOOHA supports online guidance. | |
| How to Start | Contact us and leave your contact email and phone number. |
