HH52029 Single Wire and Cable Vertical Flame Propagation Tester

Product description:

Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 <Test on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for a single insulated wire or cable>. Obtain and determine wire and cable’s capability of prevent the fire from spreading under fire condition

Standards:

• GB/T18380.(11-12)—2008

• GB/T5169.14-2007

Technical parameters:

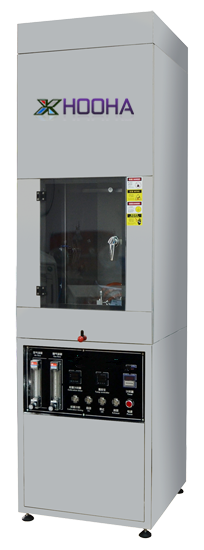

• Stainless steel control cabinet, fume cupboard and metal cover is all-in-one type, which is easy to operate and good looking

• Metal cover: 1200mm (H)×300mm(W)×450mm(D). The front is open, the top and bottom are sealed

• Blowtorch: nominal power: 1kw

• Control mode: When the set burning time reaches the preset time, the

machine stops supplying the fire automatically

• Burning device: automatic high pressure ignition

• Flowmeter: air flowmeter: 1.5~15L/min, gas flowmeter, 0.1~1L/min

• The separately controlled exhaust fan is installed at the top

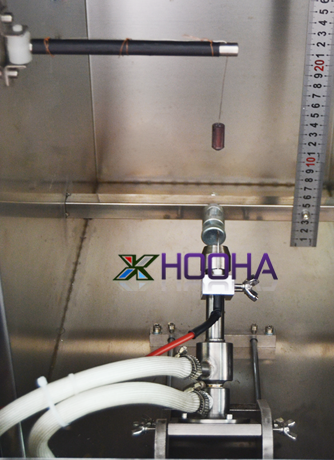

• Flame detection device: one imported thermocouple of φ0.5, K type,

one electrolytic copper billet φ9mm, one each weight is 10g±0.05g, a

suit of temperature and time display device

Specifications:

• Overall dimensions: 630mm(W)×600mm(D)×2170mm(H)

• Power supply: AC 220V, 50/60Hz, 2A

• Air source: propane and air( prepared by users)
