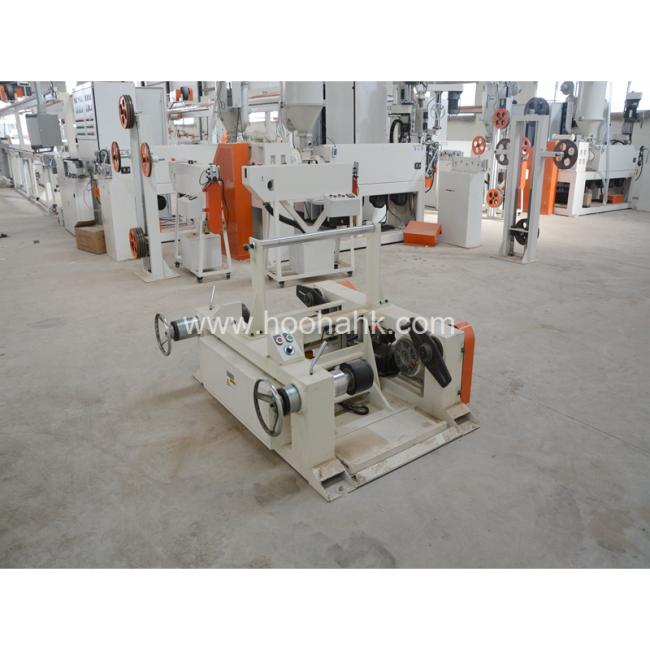

380V 50HZ 25mm Copper Wire and Cable Insulation Production Line of Cable Manufacturing
High Tech Manpower Saving Electrical Wire And Cable Insulation Production Line
Youtube:https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
1. Technical Parameters
| HOOHA wire and cable extrusion machine | |||
| Model | HOOHA 50+30 | HOOHA 70+35 | |
| HOOHA 90+40 | |||
| Pay off bobbin | PN300-500 | PN400-630 | PN500-800 |
| Screw diameter | 50+30(sub-extruder) | 70+35( sub-extruder ) | 90+40( sub-extruder ) |
| Screw L: D | 25:1 | 25:1 | 25:1 |
| Capacity (kg/hr) | 60 | 150 | 280 |
| Main motor | 15 HP | 30 HP | 50HP |
| Wire diameter | Φ0.8-2.5 | Φ3.5-6.0 | Φ4.0-15.0 |
| Temp control | 8 zone | 10 zone | 12 zone |
| Cooling device | U type single layer(18m) | U type single layer(30m) | U type single layer(40m) |
| Pulling power | 3HP | 5HP | 10HP |
| Accumulator | horizontal | horizontal | horizontal |
| Max accumulation | 250m | 200m | 150m |
| Running speed | MAX500 | MAX400 | MAX350 |
| Taking up type | Double bobbin | Double bobbin | Double bobbin |
| Taking up bobbin | PN300-500 | PN400-630 | PN500-1000 |
| Electricity control | Inverter +PLC(for elected) | Inverter +PLC(for elected) | Inverter +PLC(for elected) |
2. Application
Applied to BV,BVV,BVR,RV,Nylon sheath,and halogen-free environment-friendly building wire and power cable.
Wire and cable diameter range could be: 0.5-25 mm. We can provide the most specific equipment solution as per
the wire and cable you will produce, the most saving and profitable solution for your project.
3. Famous Brands Parts:
to ensure reliable quality and performance.
Motor: Dongguan Motor, Teco, ABB, Siemens
Inverter: Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC
Auxiliary Relay: Japan Omron
Ammeter and Voltmeter: Taiwan Risesun
Indicator, Switch and Button: Taiwan TEND
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK
Bearing: NSK, SKF
4. Package and Shipping
Two ways: RTA (Ready to assemble, Flat Pack) and fully assembled.
Well packed with pe film and plywood frame to avoid breakage in transportation.
FOB shengzhen port or CIF are both available.
4. After service
1).Online consultancies service will be available at any time.
2).Overseas on-site installation, pre-production testing, operation instruction and talent training.
3).Long-term maintaining, reconstruction and upgrade services of the overall machines.
4).Extended service, including raw material purchasing, accessory suggestions and technical advice.

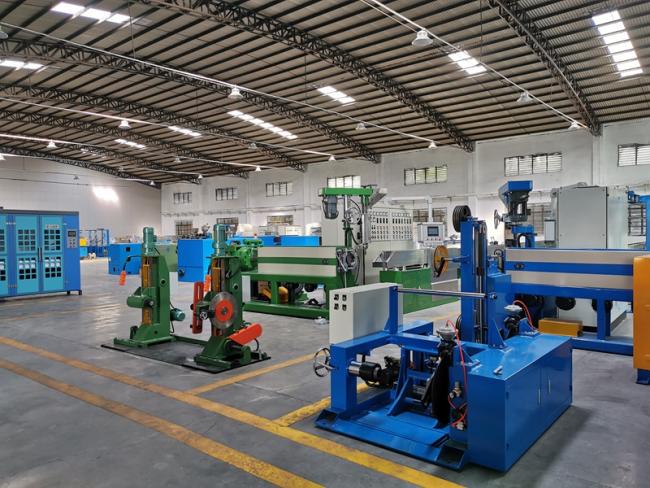

5. Company Profile & Workshop & Warehouse
| Company name | HOOHA Co.,Ltd |
| Established | 2003 |
| Main products | upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine etc. |
| Value added service | factory construction advice, cable raw material supply, cable equipment layout, cable technology support, operation training and cable testing laboratory support. |
| Factory location | Humen Town,Dongguan City,Guangdong province. |
| Manufacturing Center | 4000 sqm |
| Showroom | 2000 sqm |
▶With around 20 years experience in cable machinery field, insisting on deep cooperation
with leading cable equipment factories and cable manufacturers, Hooha has always been
providing beneficial cable production solutions and services to our global customers.
▶Now although effected by CONVID-19, we keep working hard to provide strong support to
our customers' cable and wire project. We do pre-production test for the machines before delivery
and make detailed video for installation and operation guidance, help our customers' project run
smoothly.
