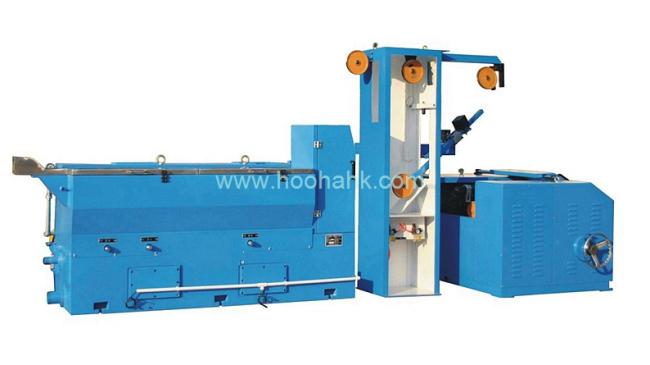

380V 50HZ 0.4mm Intermediate Wire Drawing Machine
Aluminum and Copper Wire High Speed Intermediate Drawing Machine
The production line is applicable for 2.6-3.0mm copper wire, drawn out to 0.4-1.2mm wire.
Youtube Video Reference:
http://www.youtube.com/watch?v=rg227TjsMno

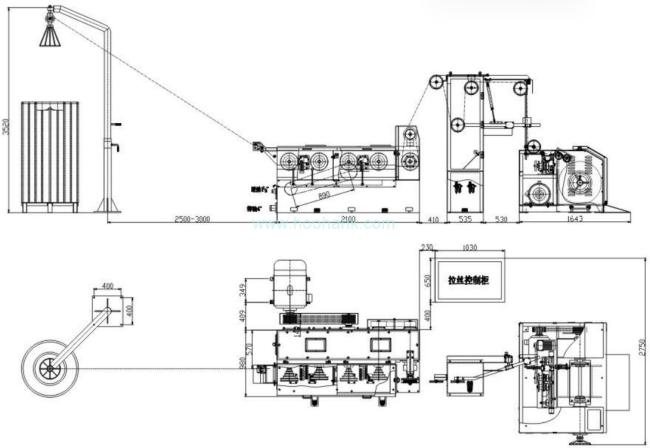

| 1 | Pay-off stand | 1set |
| 2 | Drawing machine | 1set |
| 3 | Tension unit | 1set |
| 4 | Take-up | 1set |
| 5 | Electric control cabinet | 1set |
| 6 | Accessories supplied with the machine | 1set |

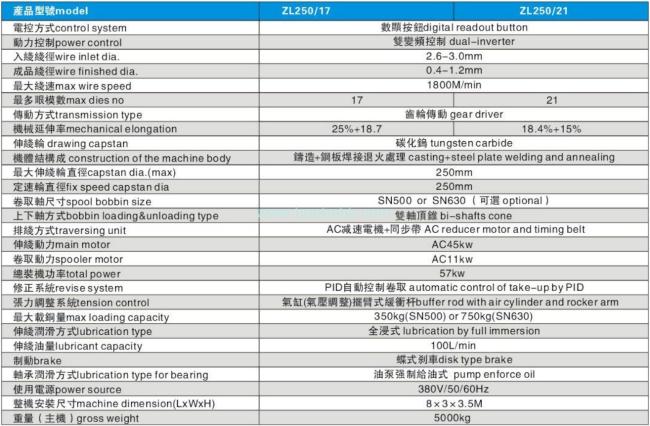

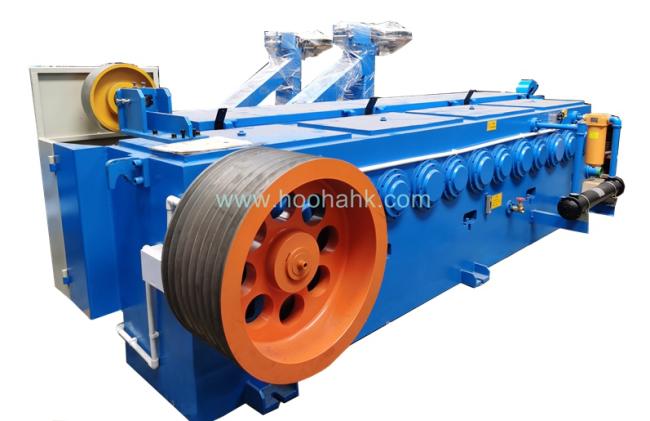

Drawing Machine
| 1 | Inlet Dia.(mm) | 2.6mm |
| 2 | Outlet Dia.(mm) | 1.2~0.4mm |
| 3 | Mechanics Speed(m/min) | Max 1800 |
| 4 | Capstan Dia.(mm) | 250mm |
| 5 | No. of Dies(Channel) | 21 |
| 6 | Dies Outlet Size(mm) | 25mm × 8 - 12mm (thickness) |
| 7 | Mechanics Elongation (%) | By the dies from the 1st to 20th, 18.4% by the 21st die, 15% |
| 8 | Main Motor Power(KW) | AC45 |
| 9 | Constant Speed Capstan Motor (KW) | AC11 |
| 10 | Drawing Coolant Mode | Full Immersion |
| 11 | Dimension(mm)L×W×H | 5000×3000×3500 |
| 12 | Machine Net Weight(kg) | About 4500 |

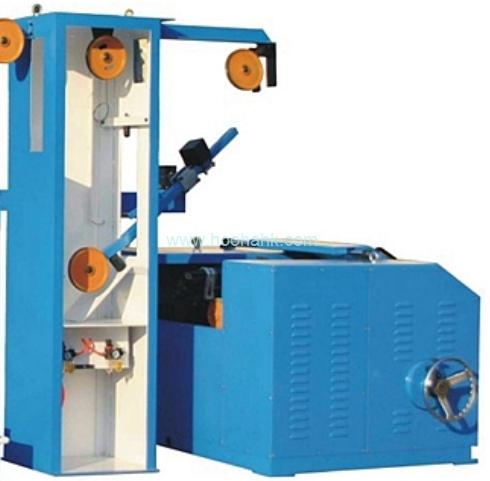

Take-up Machine
| 1 | Take-up control | Weight type tension bar |
| 2 | Take-up volume | 200kg, max |
| 3 | Size of Take up | Φ630mm |
| 4 | Take Up Motor(kw) | AC 11 |
| 5 | Transport Reel Motor(kw) | 0.75 |
| 6 | Dimension(mm) L×W×H | 1500×1200×2000 |
| 7 | Machine Net Weight(kg) | About 1500 |
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
1.Quality, our engineers work with service colleagues to learn more about customer feedback and improve our machines accordingly.
2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process
Q3:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.
Q4:How long the guarantee ?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi.
