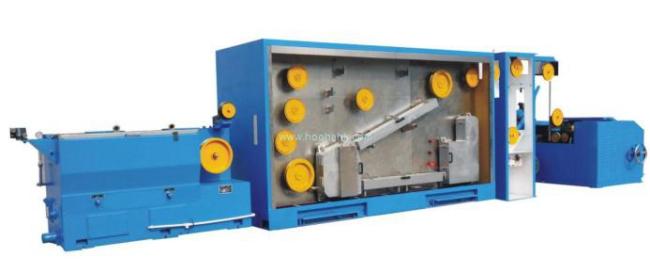

2.7mm Copper Wire Drawing Machine With Annealing Unit
High Capacity Large Wire Drawing Machine for Copper Wire With Annealing
The production line is used to draw 2.6-3.5mm copper or aluminum wire, finished wire to be 1.0-2.7mm. Along with the annealing unit, the finished wire can be used directly for the next process such as extrusion. For aluminum wire, the line can be customized to remove annealing part.
Youtube Video Reference:
http://www.youtube.com/watch?v=rg227TjsMno

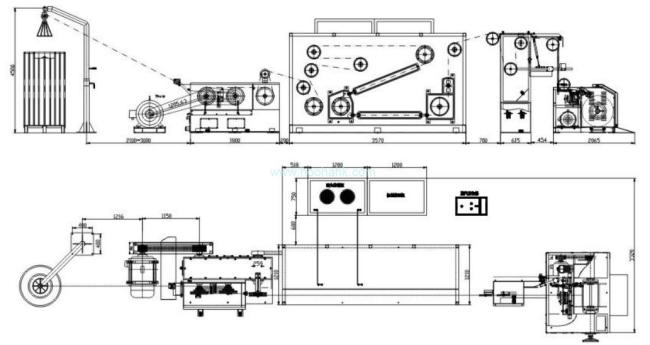

| 1 | Pay-off stand | 1set |
| 2 | Drawing machine | 1set |
| 3 | Annealing machine | 1 set |
| 4 | Tension unit | 1set |
| 5 | Take-up | 1set |
| 6 | Electric control cabinet | 1set |
| 7 | Accessories supplied with the machine |
1set |

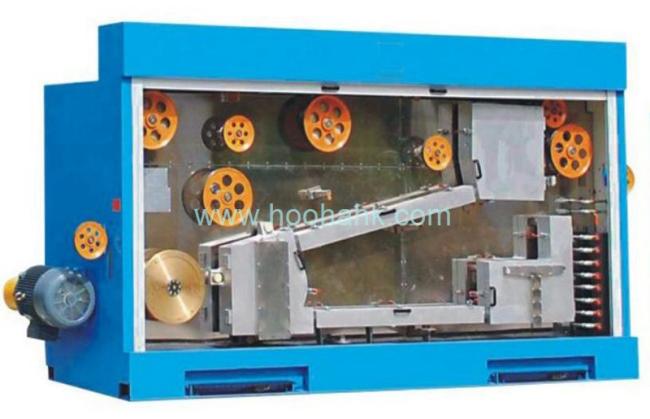

Drawing Machine

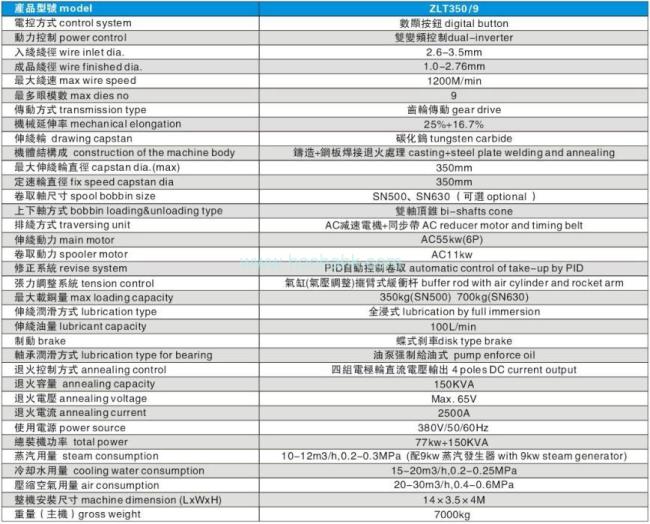

| 1 | Inlet Dia.(mm) | 3mm |
| 2 | Outlet Dia.(mm) | 2.5～1mm |
| 3 | Mechanics Speed(m/min) | Max 1200 |
| 4 | Capstan Dia.(mm) | 350mm |
| 5 | No. of Dies(Channel) | 9 |
| 6 | Dies Outlet Size(mm) | 25mm × 8 - 12mm (thickness) |
| 7 | Mechanics Elongation (%) | By the dies from the 1st to 8th, 25% by the 9th die, 16.7% |
| 8 | Main Motor Power(KW) | AC45 |
| 9 | Constant Speed Capstan Motor (KW) | AC11 |
| 10 | Drawing Coolant Mode | Full Immersion |
| 11 | Dimension(mm)L×W×H | 4500×3000×3500 |
| 12 | Machine Net Weight(kg) | About 4000 |
Annealing machine
|
Take-up Machine
| 1 | Take-up control | Weight type tension bar |
| 2 | Take-up volume | 500kg, max |
| 3 | Size of Take up | Φ630mm |
| 4 | Take Up Motor(kw) | AC 11 |
| 5 | Transport Reel Motor(kw) | 0.75 |
| 6 | Dimension(mm) L×W×H | 1800×2000×2500 |
| 7 | Machine Net Weight(kg) | About 2000 |
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special request on packaging is negotiable.
1.Quality. We will sbubmit the whole schedule of mahcine making to our customers, to keep them clear of the situcation. We accept fully quality check by customer or third party before shipment.
2.Customers' comfortable purchasing experience.We pay highly attention on the actual needs of customers, and try to bring customers high-efficiency products and intimate service, including pre-sales and after-sales, committed to let customers save time and money, and reduce worries.
3.Customers' success.We not only focus on the sales of products, but also lay emphasis on the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.
A:What we could offer to other customer is not only the machine itself,also we could offer: factory design,production process
Q3:What's the payment terms?
A:T/T,40% deposit and 60% balance before delivery,can be negotiable also.
Q4:How long the guarantee ?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi /HOOHA CO.,LTD
