8mm Copper Rod Breakdown Machine With Annealer
Lifetime Maintenance Copper Rod Breakdown Machine Production Line with Annealer
The production line is applicable for 8mm copper rod, drawn out to 3.6mm - 1.68mm copper wire. Along with annealer, the finished conductor wire with annealing process can be used for next process stranding or extrusion.
Youtube Video Reference: https://www.youtube.com/watch?v=rg227TjsMno

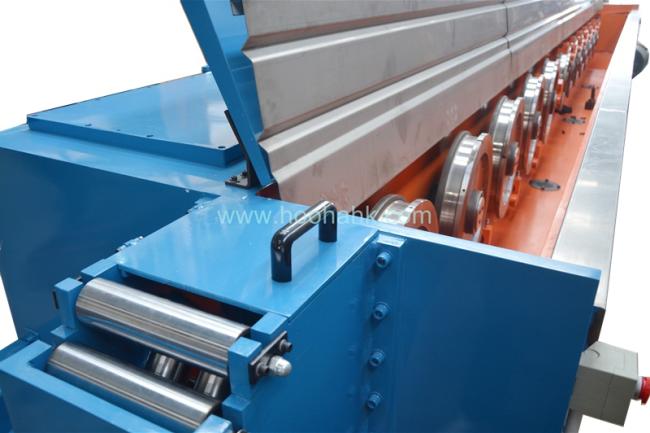

1. Drawing Machine
| 1 | Suitable materials | Anaerobic round copper rod and aluminum alloy rod |
| 2 | Inlet Dia.(mm) | 8mm |
| 3 | Outlet Dia.(mm) | 1.68~3.6mm |
| 4 | Mechanics Speed(m/min) | Max 1500 |
| 5 | Capstan Dia.(mm) | Front 5 pcs 500mm, Rear 7 pcs 400mm |
| 6 | Constant Speed Capstan Dia.(mm) | 450mm |
| 7 | No. of Dies(Channel) | 13 |
| 8 | Dies Outlet Size(mm) | 50mm |
| 9 | Mechanics Elongation (%) | 15-41 |
| 10 | Main Motor Power(KW) | AC200 |
| 11 | Constant Speed Capstan Motor (KW) | AC55 |
| 12 | Lubricant Pump Motor(KW) | 4 |
| 13 | Drawing Coolant Mode | Full Immersion |
| 14 | Dimension(mm)L×W×H | 9000×1800×1200 |
| 15 | Machine Net Weight(kg) | About 17000 |
2. Annealing Machine
| 1 | Wire Size range of Annealing(mm) | 1.2~3.6 |
| 2 | Annealing Mode | Contact mode DC annealing |
| 3 | Max. annealing DC current (A) | 5000 |
| 4 | Max. annealing DC voltage (V) | 60 |
| 5 | Dehydration Die Dia. (mm) | 55 |
| 6 | Capacity of annealer transformer (KVA) | 425 |
| 7 | Power of Steam Generation (KW) | 18 |
| 8 | The amount of steam (Kg/h) | 20 |
| 9 | Dimension(mm) L×W×H | 4250×1200×2500 |
| 10 | Machine Net Weight(kg) | About 4500 |

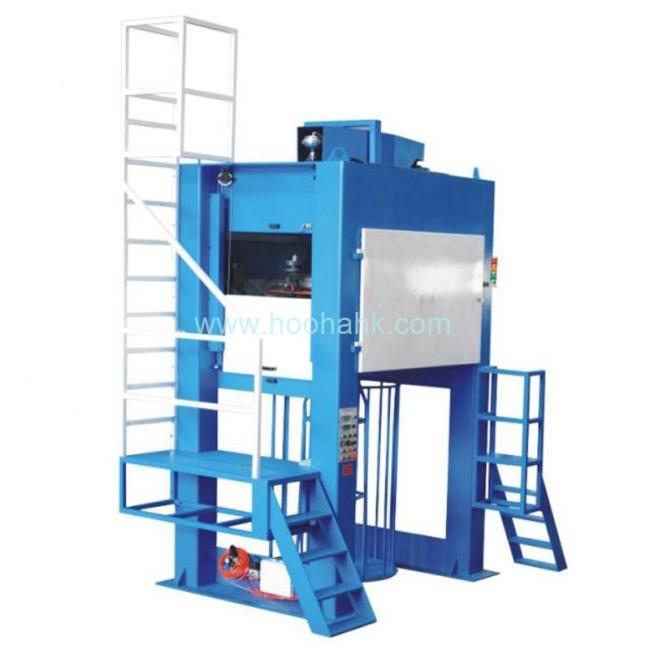

3. Take-up Machine
| 1 | Max. Coiling Speed(m/min) | 1300 |
| 2 | Dia. of Wire Take Up(mm) | 1.2~3.6 |
| 3 | Coiler Basket Dia.(mm) | 800 |
| 4 | Size of Take up | Φ630mm |
| 5 | Take Up Motor(kw) | AC 18.5 |
| 6 | Transport Reel Motor(kw) | 0.75 |
| 7 | Dimension(mm) L×W×H | 4280×3800×4550 |
| 8 | Machine Net Weight(kg) | About 5000 |
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
1.Quality, our engineers work with service colleagues to learn more about customer feedback and improve our machines accordingly.
2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process
Q3:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery, can be negotiable also.
Q4:How long the guarantee ?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel : tiezhong chi.
