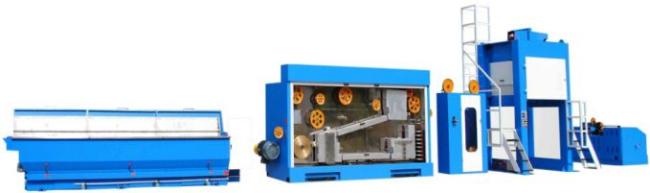

3.5mm Aluminium Wire Drawing Machine
High Speed Copper Aluminum Rod Break Down Wire Drawing Machine Making 8mm to 1.2-3.5mm

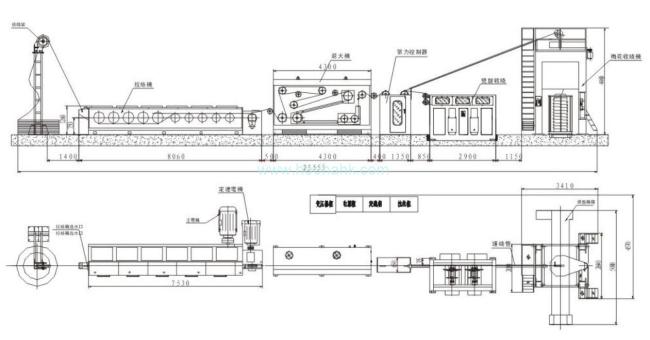

This production line is usded for 8mm copper or aluminum rod, drawn out to 3.6mm - 1.68mm wire, which is the primary drawing for conductor wire.
Youtube Video Reference: https://www.youtube.com/watch?v=rg227TjsMno

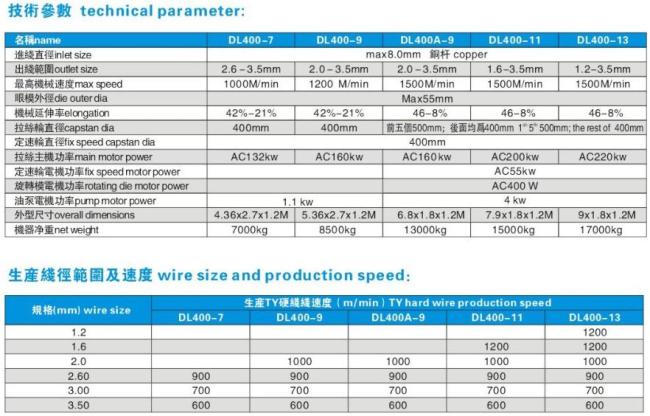

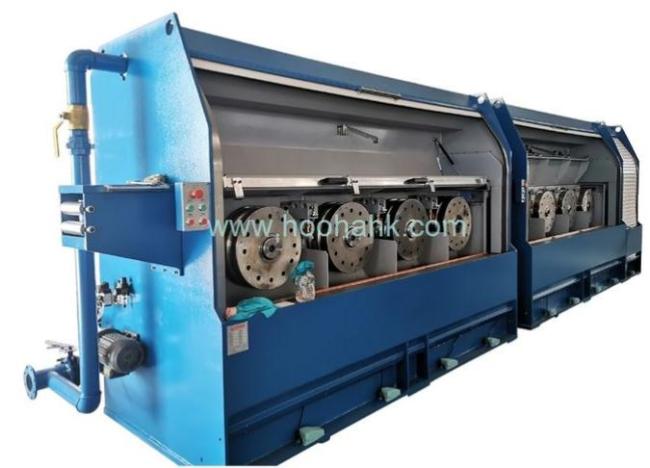

1. Host Drawing Machine
| 1 | Suitable materials | Anaerobic round copper rod and aluminum alloy rod |
| 2 | Inlet Dia.(mm) | 8mm |
| 3 | Outlet Dia.(mm) | 1.68~3.6mm |
| 4 | Mechanics Speed(m/min) | Max 1500 |
| 5 | Capstan Dia.(mm) | Front 5 pcs 500mm, Rear 7 pcs 400mm |
| 6 | Constant Speed Capstan Dia.(mm) | 450mm |
| 7 | No. of Dies(Channel) | 13 |
| 8 | Dies Outlet Size(mm) | 50mm |
| 9 | Mechanics Elongation (%) | 15-41 |
| 10 | Main Motor Power(KW) | AC200 |
| 11 | Constant Speed Capstan Motor (KW) | AC55 |
| 12 | Lubricant Pump Motor(KW) | 4 |
| 13 | Drawing Coolant Mode | Full Immersion |
| 14 | Dimension(mm)L×W×H | 9000×1800×1200 |
| 15 | Machine Net Weight(kg) | About 17000 |
2. Annealing Machine
| 1 | Wire Size range of Annealing(mm) | 1.2~3.6 |
| 2 | Annealing Mode | Contact mode DC annealing |
| 3 | Max. annealing DC current (A) | 5000 |
| 4 | Max. annealing DC voltage (V) | 60 |
| 5 | Dehydration Die Dia. (mm) | 55 |
| 6 | Capacity of annealer transformer (KVA) | 425 |
| 7 | Power of Steam Generation (KW) | 18 |
| 8 | The amount of steam (Kg/h) | 20 |
| 9 | Dimension(mm) L×W×H | 4250×1200×2500 |
| 10 | Machine Net Weight(kg) | About 4500 |

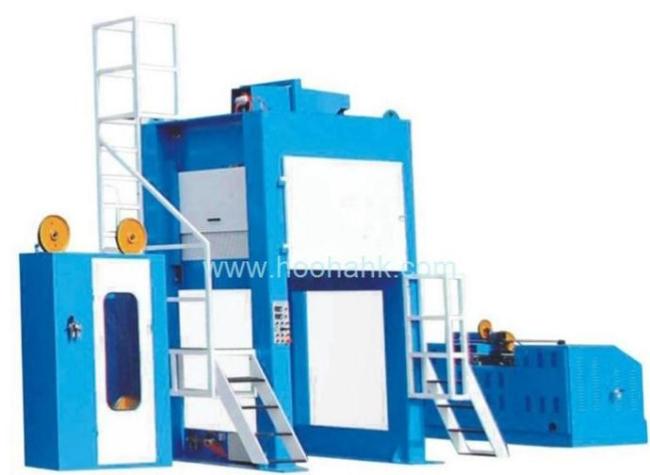

3. Take-up Machine
| 1 | Max. Coiling Speed(m/min) | 1300 |
| 2 | Dia. of Wire Take Up(mm) | 1.2~3.6 |
| 3 | Coiler Basket Dia.(mm) | 800 |
| 4 | Size of Take up | Φ630mm |
| 5 | Take Up Motor(kw) | AC 18.5 |
| 6 | Transport Reel Motor(kw) | 0.75 |
| 7 | Dimension(mm) L×W×H | 4280×3800×4550 |
| 8 | Machine Net Weight(kg) | About 5000 |
Most way is, streatchable PE film wrapped, wooden frame packed, loaded into container and shipped by sea. Special packaging way could be discussed.
1.Design. Our engineers keep study in industry and work with sales to learn more about customer feedback, then improve our machines accordingly.
2.Quality. We emphasis quality at the first place. And get high praise and trust from our customer.
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Feed back to the community and help more people.
A:What we can offer to our clients is not only the machine itself, also we could offer: factory design, production process
Q3:What's the payment terms?
A:T/T,50% deposit and 50% balance before delivery, can be negotiable also.
Q4:How long for the guarantee?
A: One year and charge for repair in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes, our youtube channel : tiezhong chi.
