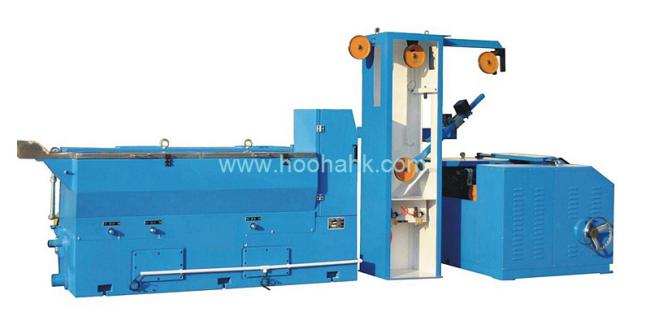

DC Annealing 380V 1800M/Min Intermediate Wire Drawing Machine
Aluminum and Copper Wire High Speed Intermediate Drawing Machine
The production line is applicable for 2.6-3.0mm copper wire, drawn out to 0.4-1.2mm wire.
Youtube Video Reference: https://www.youtube.com/watch?v=rg227TjsMno
1. Driven and controlled by AC three phases dual-inverter.
2. Horizontal contact-type DC annealing.
3. Automatic wire take-up on two spools without stop.
4. Highly precise bearing achieves running in low noise, high efficiency and low power-consumption.
5. Widely use imported advanced parts and components to ensure machines high reliability.
| 1 | Pay-off stand | 1set |
| 2 | Drawing machine | 1set |
| 3 | Tension unit | 1set |
| 4 | Take-up | 1set |
| 5 | Electric control cabinet | 1set |
| 6 | Accessories supplied with the machine | 1set |
Drawing Main Machine
| 1 | Inlet Dia.(mm) | 2.6mm |
| 2 | Outlet Dia.(mm) | 1.2~0.4mm |
| 3 | Mechanics Speed(m/min) | Max 1800 |
| 4 | Capstan Dia.(mm) | 250mm |
| 5 | No. of Dies(Channel) | 21 |
| 6 | Dies Outlet Size(mm) | 25mm × 8 - 12mm (thickness) |
| 7 | Mechanics Elongation (%) | By the dies from the 1st to 20th, 18.4% by the 21st die, 15% |
| 8 | Main Motor Power(KW) | AC45 |
| 9 | Constant Speed Capstan Motor (KW) | AC11 |
| 10 | Drawing Coolant Mode | Full Immersion |
| 11 | Dimension(mm)L×W×H | 5000×3000×3500 |
| 12 | Machine Net Weight(kg) | About 4500 |
Take-up Machine
For regular way, clear PE film wrapped, wooden frame packed for small or electrical parts, loaded into container and shipped by sea. Special packaging way as per discussed.
1.Design. With rich oversea work experience, our engineers keep study in industry and work with sales to know more about market, then improve our machines to be easy-operated, durable and high productivity.
2.Quality. We always take quality at the first place. This is why we can get well developed and cooperate with more and more customers since established.
3.Customers' success. Hooha not only focuses on selling the machines, but also pays high attention to our customers' development. We pursue growing together with customers by providing long-term and full-range support to help them achieve success.
4.Supply more environment-friendly products, like power saving and low noise wire and cable machines.
5.Return back to society and help more people.
A:What we can offer to our clients is not only the machine itself, but also offer further services including: factory layout, production process design, operation training, assist machines and raw materials. We provide the support for the entire industry chain for our clients as long as you need.
Q3:What's the payment terms?
A:T/T or L/C, 50% deposit and 50% balance before delivery, can be negotiable also.
Q4:How long for the guarantee?
A: 12 months and charge cost fee for maintenance and upgrade in the whole life.
Q5: Do you have a video to show the machine running ?
A. Yes, you can visit our youtube channel: tiezhong chi, and get more information.
