OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
Camera CCTV Antenna Cable Power Cable Rg Series 75 Ohm RG6 +2DC
1. Description
Model NO.:RG6+2DC
Shield:Al Foil,Copper Foil
Trademark:OEM
Type:Coaxial Cable
Braiding Material:Al, CCA,Cu, Tcu etc.
Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.
Application:Local Communication Cable, Coaxial Cable,LAN Cable
Conductor Material:BC/CCS/CCA/TC/CU/CCAG
Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
Cover Material:PE/PVC
Model:RG6 with Power Cable
Wire Core Material:Bare Copper Wire
Certification:CE, ISO,RoHS, CPR
Inner Conductor:CCS,Cu,CCA,Tc
Insulation:PE,Foaming PE
Jacket:PVC, PE
Color:White, Black, Yellow,Green etc
Material Shape:Round Wire
Conductor Type:Solid

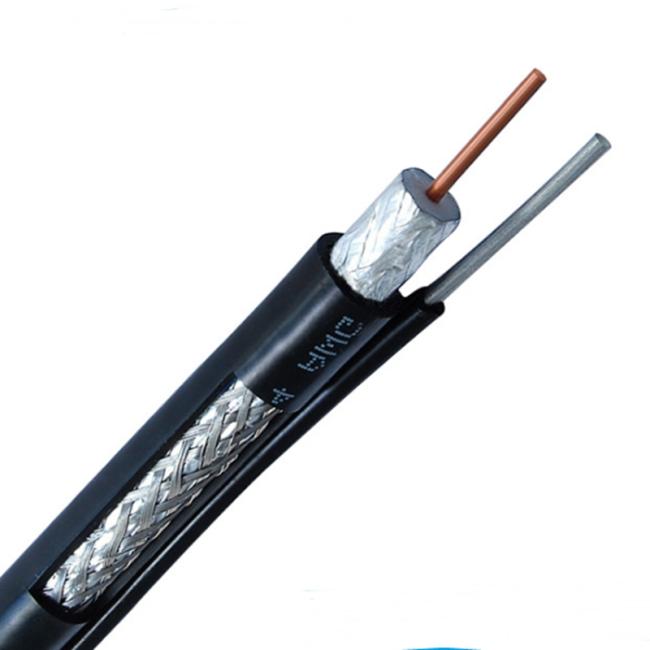

2. Construction
(1)Center Conductor:1.02±0.01mm BC
(2)Dielectric: 4.57±0.10mm FPE
(3)Braid: Al Foil + 64*0.12mm Al/Mg
(4)Jacket: 6.80±0.20mm PVC
(5)Power cable: 15*0.23CCA 1.70PE
3. Parameters
| Options | Parameters |
| Inner Conductor: | BC/CCS/CCA/TC/SC Available |
| Dielectric: | Foam PE/Solid PE |
| First Shield: | Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored ) |
| Second Shield: | Al,CCA,BC,TC CCS Available |
| Wire Diameter:0.11,0.12,0.15,0.16mm Available | |
| Braiding Net:32#,48#,64#,80#,96#,112#,128#,144# | |
| Jacket: | PVC/PE (black,white,color) |
| charactor | |
| Impedance: | 75+3 Ohm |
| Capacitance: | 53+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
| Attenuation | |
| Frequency (MHz) | Maximum (dB/100 m) |
| 5 | 1.9 |
| 55 | 5.25 |
| 187 | 9.35 |
| 350 | 12.63 |
| 550 | 16.08 |
| 750 | 18.54 |
| 865 | 20.01 |
| 1000 | 21.49 |
| 1450 | 26.37 |
| 1800 | 30.34 |
| 2000 | 31.82 |
4.Factory & Workshop &Warehouse
| Company name | HOOHA Co.,Ltd |
| Established | 2003 |
| Main products | upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on. |
| Value added service | Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction. |
| Factory location | Humen Town,Dongguan City,Guangdong province. |
| Manufacturing Center | 4000 sqm |
| Showroom | More than 2000 sqm. |
6. Package and Tips
| (1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m) |
| (2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box |
| (3)Outer Packing: Carton box, pully box, pallet available |
| Any packing available according to your request. |
