Surveillance Camera Monitoring RG59 Cable With F Compression Connector
Surveillance Camera Monitoring Rg59 Security Cable with F Compression Connector
1. Application
Application: Local Communication Cable, Coaxial Cable, LAN Cable
2. Description
Conductor Material:BC/CCS/CCA/TC/CU/CCAG
Cover Material:PE/PVC
Material Shape:Round Wire
Conductor Type:Solid
Wire Core Material:Bare Copper Wire
Certification:CE, ISO, RoHS, CPR
Model:Rg59
Inner Conductor:CCS, Cu ,CCA,Tc,etc
Insulation:PE,Foaming PE
Shiled:Al Foil,Copper Foil
Braiding Material:Al, CCA,Cu, Tcu etc.
Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.
Jacket:PVC, PE
Color:White, Black, Yellow,Green etc.
Trademark:OEM
Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
Specification:Copper or Copper Clad Steel
3.Attenuation
| Frequency (MHz) | Maximum (dB/100 m) |
| 5 | 2.82 |
| 55 | 6.73 |
| 187 | 11.81 |
| 350 | 15.75 |
| 550 | 19.52 |
| 750 | 22.87 |
| 865 | 24.67 |
| 1000 | 26.64 |
| 1450 | 32.05 |
| 1800 | 35.59 |
| 2000 | 39.04 |

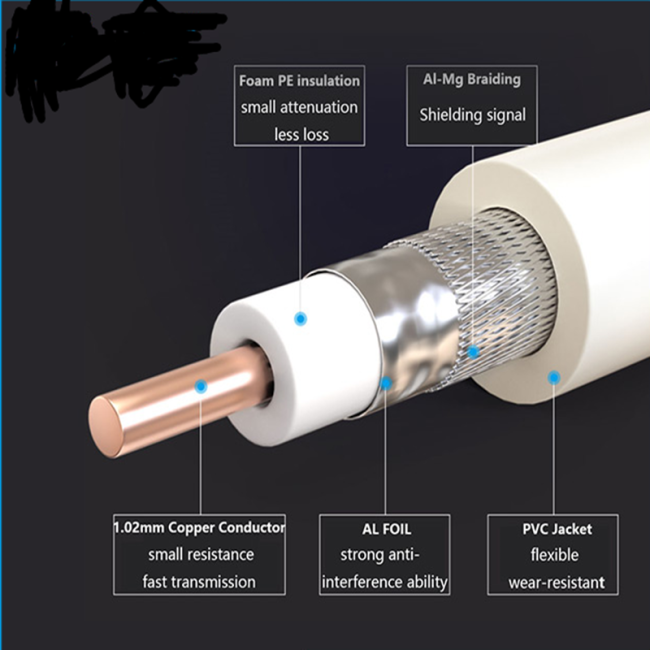

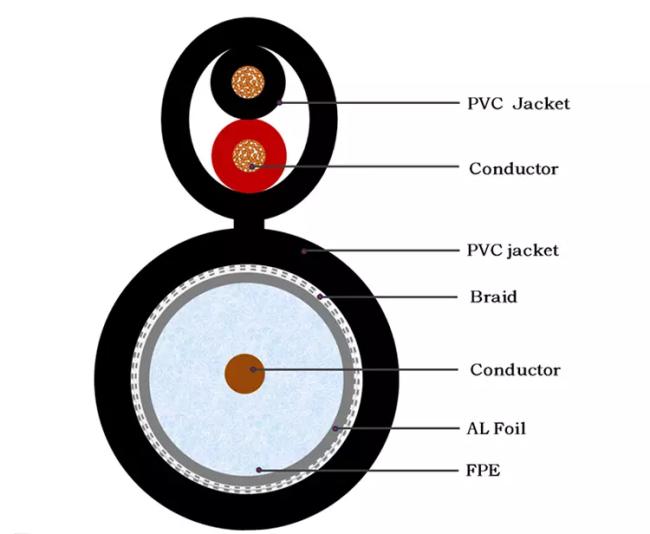

4.Construction
| (1)Center Conductor: 0.81±0.02mm BC |
| (2)Dielectric: 3.66±0.10mm FPE |
| (3)Braid: Al Foil + 80*0.16mm Al/Mg |
| (4)Jacket: 6.10±0.20mm PVC |

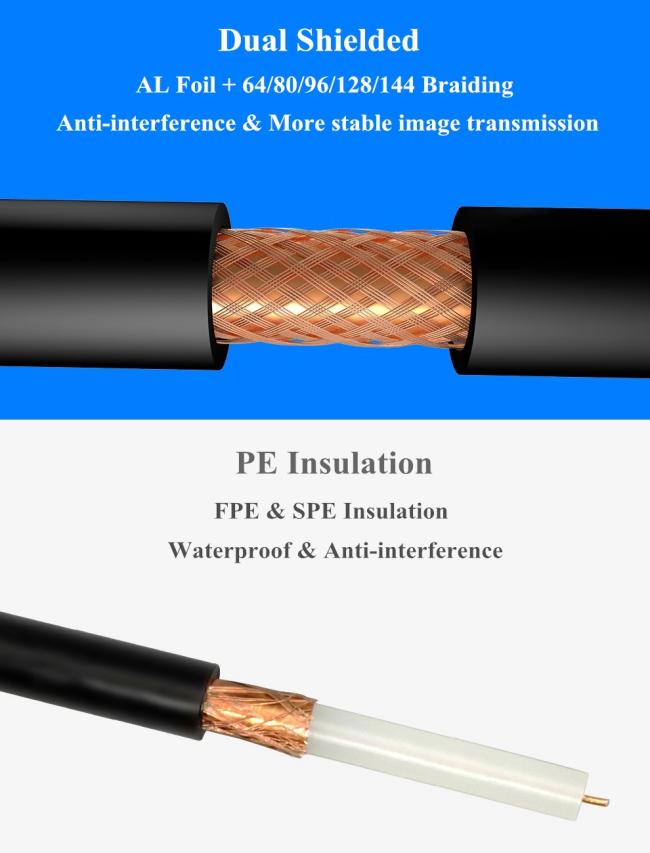

5.Options
| Inner Conductor: | BC/CCS/CCA/TC/SC Available |
| Dielectric: | Foam PE/Solid PE |
| First Shield: | Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored ) |
| Second Shield: | Al,CCA,BC,TC CCS Available |
| Wire Diameter:0.11,0.12,0.15,0.16mm Available | |
| Braiding Net:32#,48#,64#,80#,96#,112#,128#,144# | |
| Jacket: | PVC/PE (black,white,color) |
6. Characteristics
| Impedance: | 75+3 Ohm |
| Capacitance: | 53+3pF/m |
| Velocity of Propagation: | 85% |
| Return Loss: | 20dB min (5-2300MHz) |
7.Our Packing
| (1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m) |
| (2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box |
| (3)Outer Packing: Carton box, pully box, pallet available |
8. Note
Note:Any packing available according to your request.
Note:BC:Bare Copper CCS:Copper Clad Steel CCA:Copper Clad Aluminum TC :Tinning Copper SC:Silver-Plated Copper
9. FAQ
(1) Q: Can you print our logo or company name in cable?
A: Yes,we can print your logo or company name on products.
(2)Q:Can you accept customize or design for us?
A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(3)Q:Is it possible to get a free sample ?
A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(4)Q:What is your MOQ ?
A:Usually,our coaxial cable MOQ is 100 thousand meters.
(5)Q:If I want to purchase,how to pay?
A:Usually, we do T/T in 40% deposit before production,60% balance against copy of B/L.Also payment terms are negotiable depending on customer's request.
(
