GYFXTY G652D 6mm Single Mode Fiber Optic Cable 2 4 6 8 12 Core
GYFXTY Fiber Optic Cable 2 4 6 8 12 Core Single Mode G652D Outdoor 6mm Fiber Optical Cable Manufacturers
1.Description

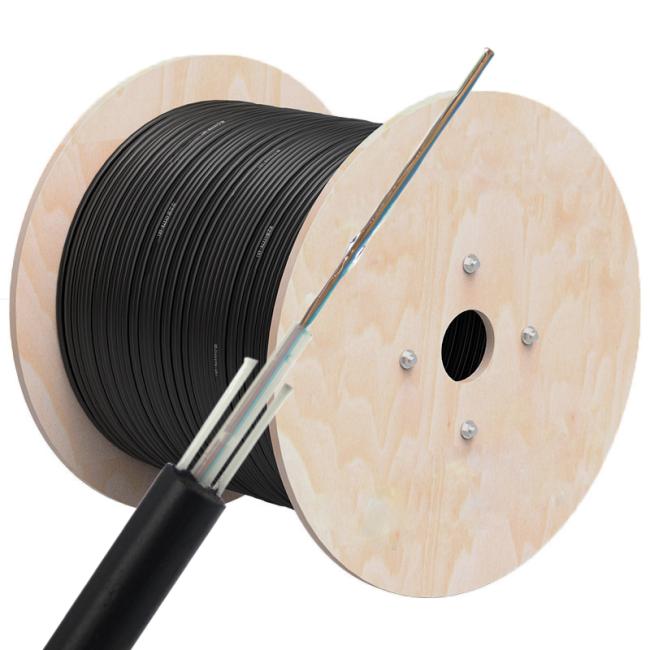

1.GYFXTY fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface.
2.The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member.
3.the cable is completed with a PE sheath.GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application
Model Number: GYFXTY
Number of Conductors:≥10
Product Type: GYFXTY
Fiber Mode: Single Mode
Fiber Count: 1 to 12 Core
Fiber Type:G652D
Cable Color:Black
Cable Diameter: 6.0mm 7.0mm/ 8.0mm
Cable Length: 2km 3km 4km
Jacket Material: LDPE
Strengthen Member: FRP
Life Time:15 Years
2. Product Parameters
| Fiber Count | 1-12 Fibers |
| Construction | Central Loose Tube |
| Fiber Type | Singlemode G.652D / G.657A1 |
| Outer Jacket Material | PE(Black) |
| Weight | 60kg/km |
| Application | Aerial and Duct |
| Jacket Diameter | 5.5 mm 6.0 mm 6.5 mm 7.0 mm |
| Cable Length | 3Km/Drum |
| Test Wavelength | 1310/1550nm |
| Operation Temperature | -20℃ to +60℃ |
3.Packing details
1, Plywood Drum Packing Size: 800*800*680/Drum
2, 180~210kgs/Drum
4.Lead Time
| LCL Delivery | <10000m | <20000m | <50000m | >100000m |
| Days | 25 Days | 22 Days | 18 Days | Negotiable |
