HH-YZ4+4+8 Planetary Stranding Machine For USB3.1 QSFP High Rank Cable

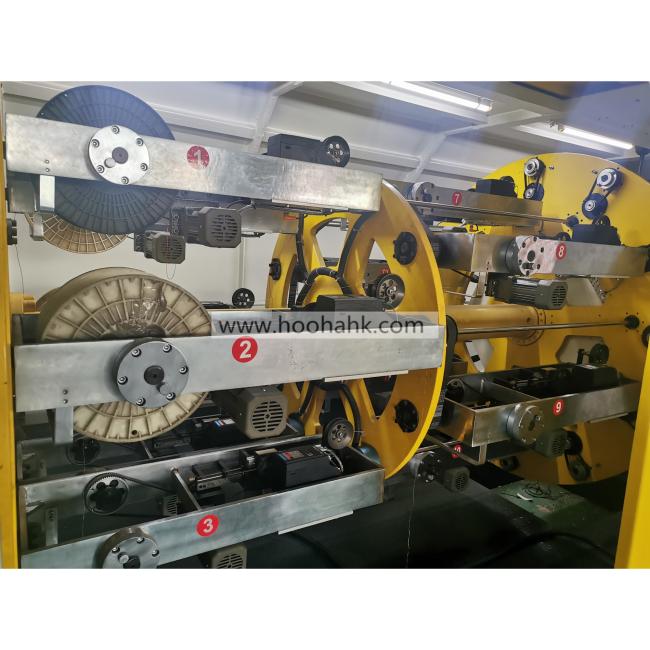

HH-YZ6+6+6 Planetary Stranding Machine for New Energy Vehicles Power Charging Cable
This production line is mainly used for stranding of high and special standard wire and cables, like USB31, multi-core medical cable, new energy vehicles power charging cable, QSFP etc. Stranding and double center taping can be finished at one time.
| 1 | Wrapping tension is high speed centering wrapping, auto tension tracking. Wrapping tension keep constant from sart to end, no need adjustment |
| 2 | Pay-off tension is controlled by servo, auto tracking, no need adjustment |
| 3 | Traversing is controlled by servo, to make sure no damage during traversing. Distance can by set freely according to wire specification. |
| Items | Quantity |
| pay-off | 1 set |
| Planetary strander | 1 set |
| Taping machine | 1 set |
| Capstan | 1 set |
| Take-up machine | 1 set |
| Electrical control box | 1 set |
| Items | Features |
| Wire specification | 0.5-2mm |
| Twisted OD | 2-10mm |
| Pitch range | 20-300mm |
| Rotate speed | Max 200 rpm |
| Power | 10 HP |
| Take-up type | 4+4 heads equal proportion layout |
| Back-twist rate | 0-100% stepless adustment |
| Back-twist heads | 4+4 |
| Wrapping tension | Tension is constant, no need adjustment |
| Pay-off tension | Tension is constant, no need adjustment |
| Traversing | Servo traversing |
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
