2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
Complete Set Teflon Cable Making Machine with Installation and Commissioning Service
Usage:
Polytetrafluoroethylene can be formed by pushing or extruding; it can also be made into a film and then cut into a shaft-mounted PTFE tape when used in high-temperature wires. It is used to produce high-frequency cables and directly made into water dispersion. It can be used for coating, impregnation or fiber making.
Polytetrafluoroethylene is widely used in industries such as nuclear energy, national defense, aerospace, electronics, electrical, chemical, machinery,instruments, meters, construction, textiles, metal surface treatment, pharmaceuticals, medical treatment, food, metallurgy and smelting etc. Corrosive materials, insulating materials, anti-stick coatings, etc. make it an irreplaceable product.
Production Process and Related Machines
1. Conductor Stranding---- HH-B-500 High Speed Bunching Machine
2. Conductor FEP Insulation→
HH-E-35 Teflon Cable Extrusion Machine
Components and Parameters
1. HH-B-500 High Speed Bunching Machine
Application:
It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.
Components:
| No. | Items | Quantity |
| 1 | 500 Bunching machine | 1 set |
| 2 | Pay off stand multi-core copper wire | 1 set |
Parameters:
| No. | Items | Value |
| 1 | Single wire diameter | Ø0.08mm-Ø0.30mm |
| 2 | Stranding area | 0.3mm2-2.5 mm2 |
| 3 | Stranded wire length calculation | How many meters per minute = twisting distance *2/1000* twisting bow speed per minute |
| 4 | Twisting pitch | 5.66 - 39.37mm |
| 5 | Rotation speed of arched band | Max: 2200RPM. |
| 6 | Spindle lubrication | Use manual grease gun to inject oil |

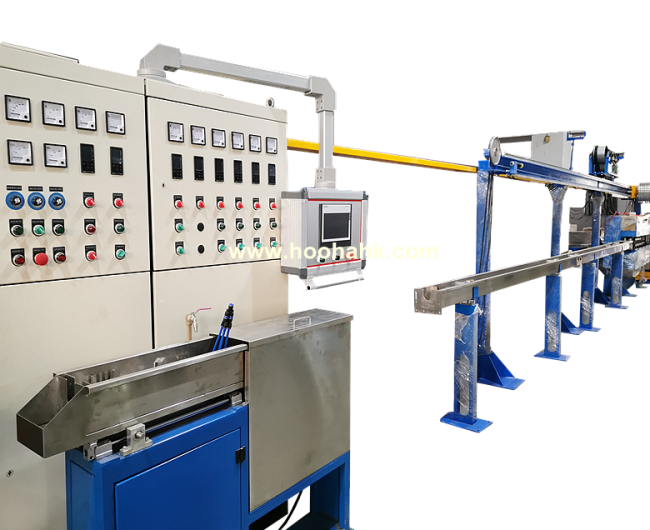

2. HH-E-35 Teflon Cable Extrusion Machine
Application:
This equipment is suitable for outer surface extrusion of Teflon wires and cables with insulation materials such as FEP, FPA, ETFE, PVDF.
Components:
| No. | Items | Features |
| 1 | 400-630 motorized pay-off stand | 1 set |
| 2 | 5-wheel Straightening device | 1 set |
| 3 | Copper wire automatic sensor preheater | 1 set |
| 4 | 35 Teflon extruder | 1 set |
| 5 | U7 non-adjustable head | 1 set |
| 6 | Automatic drying and feeding machine | 1 set |
| 7 | PLC Electric control box | 1 set |
| 8 | 1.5m Movable water tank with cover | 1 set |
| 9 | Diameter tester | 1 set |
| 10 | 8m Fixed water tank | 1 set |
| 11 | 10 m Slide rail type + anode guide wheel storage rack | 1 set |
| 12 | Dual-wheel capstan | 1 set |
| 13 | Meter counter | 1 set |
| 14 | High frequency spark tester | 1 set |
| 15 | 400-630 Double-head take-up machine | 1 set |
| 16 | Spare parts |
Parameters:
| No. | Items | Features |
| 1 | Inlet Wire Diameter | 0.3～2 mm |
| 2 | Finished Wire Diameter | 0.5～3 mm |
| 3 | Cross Sectional Area | 0.5～2.5 square mm |
| 4 | Extrusion Speed | Max 150 m/min |
| 5 | Extrusion Capacity | 50 kg/h |
| 6 | Installed Capacity | 60 kva |
| 7 | Voltage | 380KV, can be customized |
| 8 | Weight | 3500 kg |
| 9 | Measurement (L*W*H) | 23*3*3 m |
| 10 | Workers recommendation | 3 workers |
