USB2.0 Cable Making Machine 4 Wires With PVC / TPE Sheath
USB 2.0/3.0 cable making machine ,mobile charger cable machine
Charge Phone cable (4 cores) Project
1. Copper wire/Tinned copper strand
2. Insulation
3. 4 insulation cable twist(Al-Mylar tape)
4. Taping (option)
5. Sheath

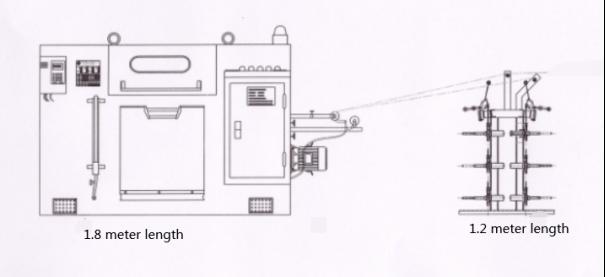

1.300mm High speed bunching machine x 5 units
1 unit machine dimension
Volume : L x W x H = 3000mm x 750mm x 850 mm
Machine Weight : About 850 kg
Power : 2.2 KW (1.5 kilowatt hour)
2.50 PVC wire extrusion machine x 1 unit
Volume : L x W x H = 25m x 2.5m x 2.5m
Machine Weight : about 2800 kg
Power : 33 KW ( about 10 kilowatt hour)

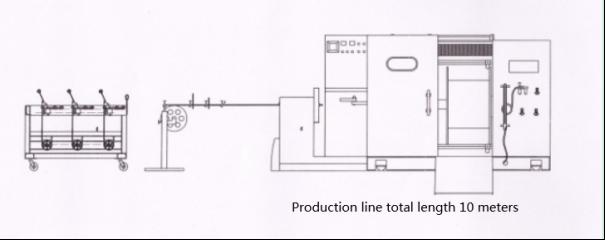

3.630 Cantilever cable twist machine x 1 unit
Volume : L x W x H = 10m x 2.5m x 1.8m (include pay off stand )
Machine Weight : 3500 Kg
Power : 12 KW (4 kilowatt hour)
4.70 Cable sheath machine x 1 unit
Volume : L x W x H = 26 mm x 3 mm x 3.5mm
Machine Weight : about 4000 kg
Power: 30KW ( 20 kilowatt hour)

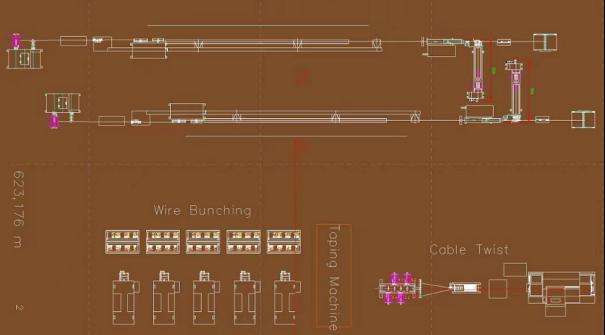

| Process | Product name | Length |
Operators/ Unit |
How many containers |
| Condutor twist | 300 Bunching machine | 3 meter | 2 |
2 x 40 containers |
| Insulation | 50 extrusion line | 25 meters | 2 | |
| Cable twist | 630 Cantilever twist machine | 10 meters | 2 | |
| PVC Sheath | 70 extrusion line | 26 meters | 2 | |
| Taping | 630 single layer taping machine | 3 mters | 2 |

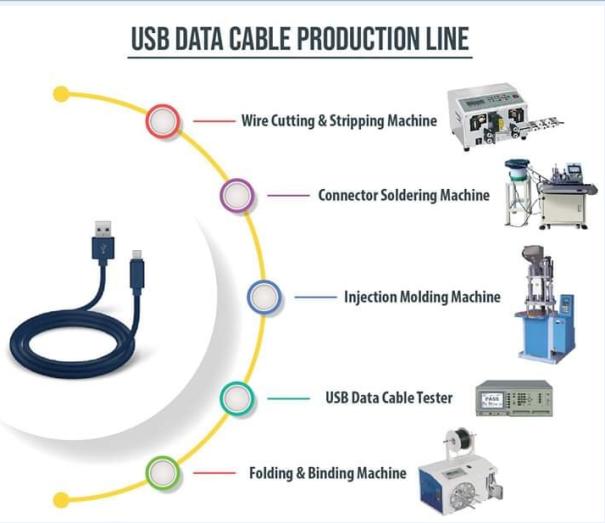

B . Accessary process equipments
1. wire cutting and stripping machine
2. Soldering machine
3. Injection molding machine
4. Cable data tester
5. Binding machine
1.Machine full set up(with accessaroy process equipment)as refer :
https://www.youtube.com/watch?v=NcsrKzXeQ-Y&t=234s
2.turkey client USB cable factory feedback
https://www.youtube.com/watch?v=igZtaKqV05A
Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.
2.How can we guarantee quality?
1.Online inspect facotry,production,shipment,and aftersales services.
machine for wire and cable
4.How long is your delivery time?
1.Generally, 3-7 days for goods in stock
5. Will the price be cheaper if the order is placed in bulk?
Yes,Of course,it will make 10%-12% discount
6.What services can we provide?
1.Plant solution and machine design.
4.Packaging customization 5.Customized,saving 10%-20% year-on-year cost
7.HOOHA cable equipment technical advantages
1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover, shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,The working efficiency of the equipment is improved, the noise is reduced, and the service life of the equipment is extended to more than 10 years.
the deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.
