45# Steel Corrugator Pressure Roll
Price:
500-10000
MOQ:
1 pcs
Delivery Time:
30-45 days
Brand:
YH
Product Description
Hard Chrome Corrugating Pressure Roll Chinese JS DWB Type Corrugator Machine
| Product name | Pressure roll |
| Application | Single facer, corrugator machine |
| Raw material | 45# Steel |
| Heating treatment | Intermediate frequency quenching |
| Hardness | ≥HRC 55 |
| Harden Layer | ≥7mm |
| Coating | Hard chrome 0.05-0.08mm |
| Diameter | 50-500mm |
| The roller surface length | 100-4000mm |
| Cylinder run-out accuracy | ≤0.02mm |
| Cylindricity accuracy | ≤0.015mm |
| Dynamic balancing accuracy grade G2.5 | G2.5 |

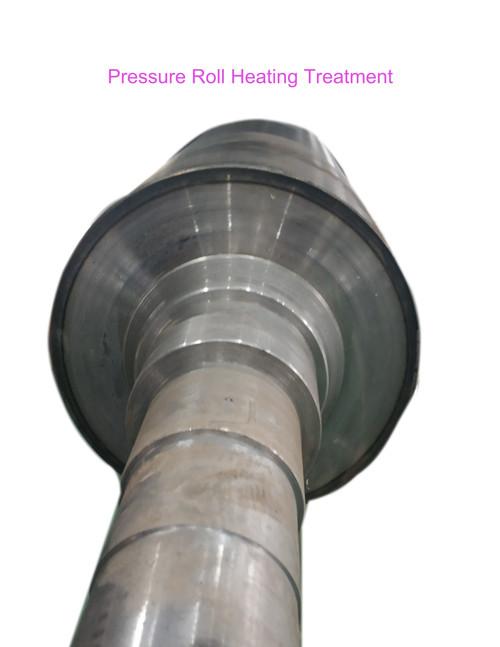

High Hardness from Vertical Quenching Process
Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-10mm. With harder base material as foundation, the lifetime of our pressure rolls are greatly extended.
High precison grinding machine.

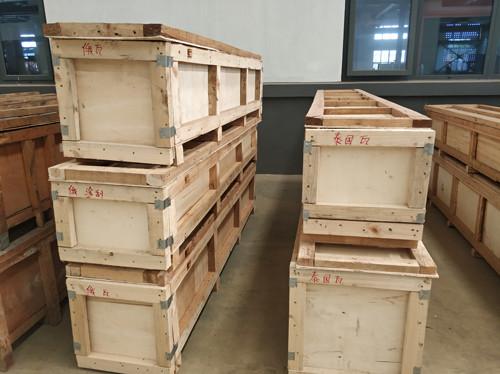

Package
Contact me:
Bonnie Li
Mobile&whatsapp&Wechat: +86-18661680180
E-mail: bonnenul@yahoo.com
