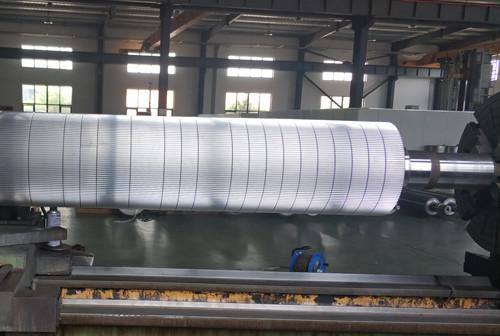

Refurbished Tungsten Carbide B Flute Corrugated Roller
Refurbished Long Warranty Tungsten Carbide B Flute Corrugated Roller
1. Precision index of B flute corrugated roller
| Item | Index |
| Gear teeth height limits of deviation | ≤ 0.01mm |
| Addendum circle run out tolerance | ≤ 0.02mm |
| Gear teeth width limits of deviations | ≤ 0.015mm |
| Tooth profile limits of deviations | ≤ 0.01mm |
| Gear lateral face counter shaft parallelism | ≤ 0.01mm |
| Tip cylinder element linear | ≤ 0.01mm |
| Gear teeth division limits of deviations | ±10" |
| Smooth finish | Ra<0.6µm |
2. Repeatedly Polished, Smooth As a Mirror
Meijia adopts special polishing crafts, such as the corrugated rollers use America Praxair 1342VM series super hard tungsten carbide roller, special customized polishing wheel. With our company’s fully automatic CNC corrugated roller producing process’s special polishing machine and our independent grinding polishing technology R&D, the tungsten carbide roller’ s surface finish degree can reach Ra<0.6μm, which will improve the accuracy of the flute profile, and make sure the quality of the corrugated roller.
