Ⅰ. Design Description
We provide both the steel frame materials and all accessories. Container house is one of our most important systematic products. We focus on the work to provide customers turnkey service of container house.

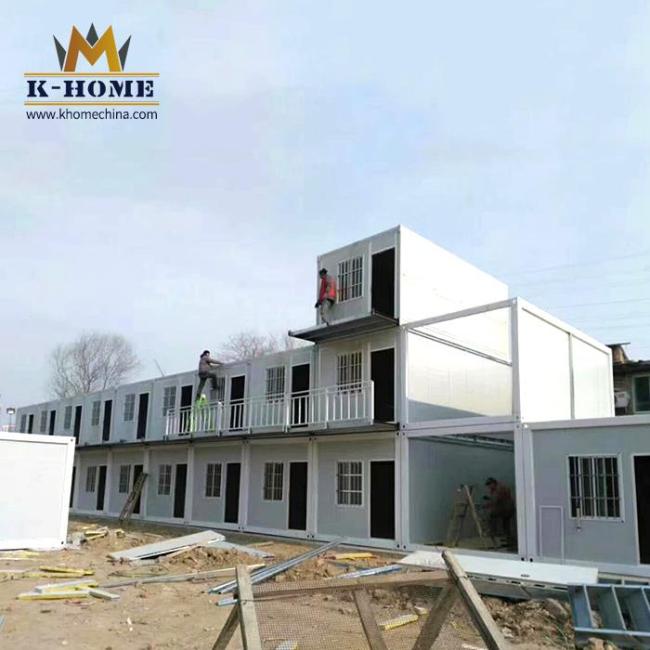

This is a container worker camp for 320 persons.

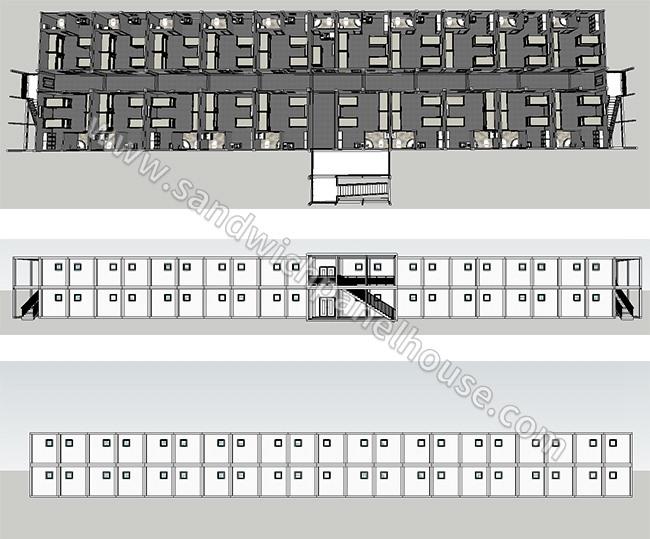

The container building is 2 floors, with 42 standard containers and 11 aislecontainers on each floor. A total of 84 standard containers and 22 aisle containers.
Each room is composed of 2 containers, can accommodate 1-8 people, with a separate toilet, a small open kitchen can also be set in the room. There are 3 external stairs.
Detail Specifications
| Product Name | Fast Install Container Temporary Worker Camp |
| Construction Area | 2067m2 |
| Land Area | 1033.5m2 |
| Standard Container House Size | 3m(W)*5.95m(L)*2.8m(H) |
| Asile Container House | 2m(W)*5.95m(L)*2.8m(H) or 3m(W)*3m(L)*2.8m(H) |
| Stair Material | Steel |
| Main Frame of Container House | Galvanized steel structure |
| Wall Material | 50mm thickness rock wool sandwich panel |
| Roof System | Steel ceiling+roof purlins+50mm Glass wool insulation+steel plate |
| Floor System | Bottom purlins+18mm fireproof MGO board+PVC floor leather |
| Door | 0.93m(W)*2m(H) |
| Window | 0.93m(W)*1.2m(H) |
| Electricity System | 1 ceiling lamp+1 Socket+2 Switches+electric wire+air circuit breaker |

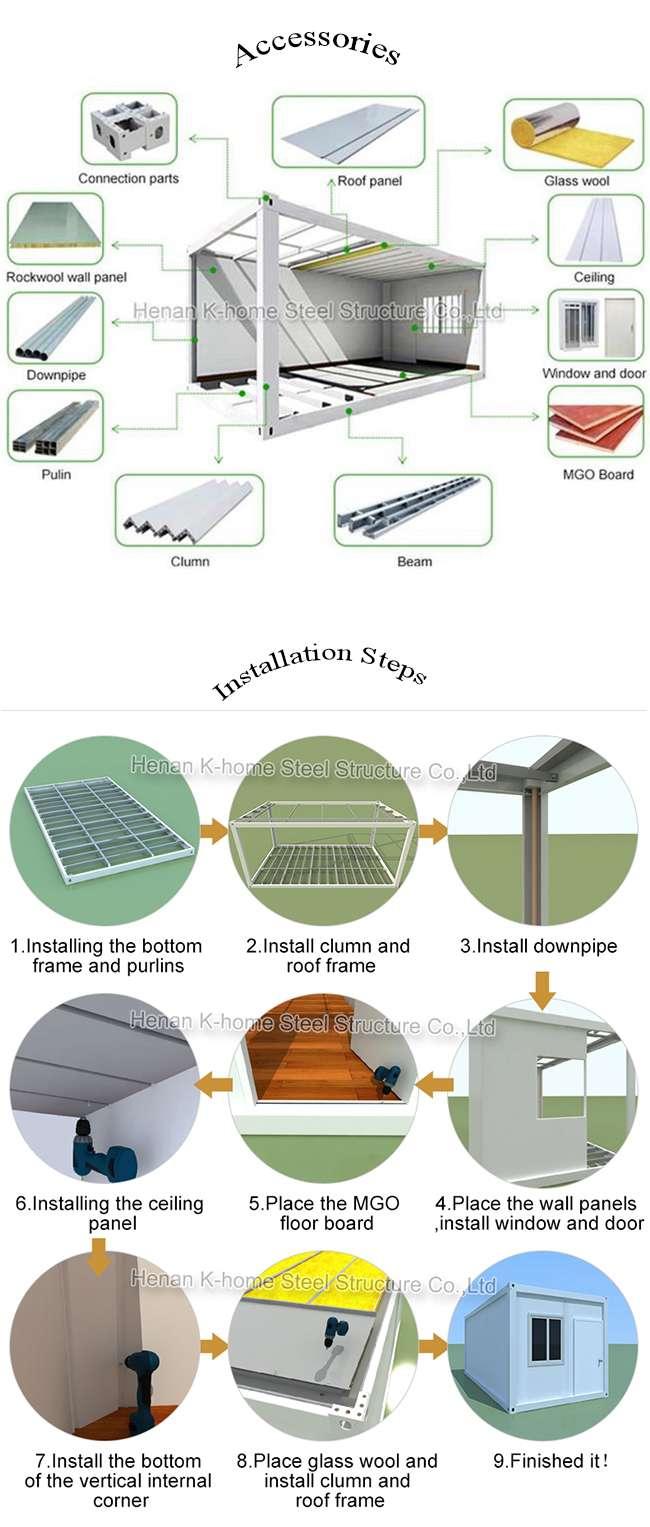

Ⅱ. Accessories and Installation
Ⅲ. Our Advantages
Why Choose Us?
We are the professional manufacture for the container house with decades of years of experience. every component is manufactured by ourselves.
Besides, our factory is located in Xiaodian industry park, Xinxiang city, Henan province, which is the source of prefabricated house. More than 90% of our raw material suppliers are from our city.
So we can garantee the lower price with same quality for you.
Besides the products, we also pay much attention to the after-sale service. Because we know it has the same value with product, especially for the housing product.
So the price we offer also include:
1. Complete drawings like design drawing, structure drawing, and installation drawing;
2. Free installation guide, such as detailed installation steps, customized installation videos, and 24-hour installation consultation.
3. Complete set of installation tools, 12 kinds in total. Please see the tool list attached.
