Movable Fireproof Portable Construction Office Convenient Transportation
Modular Portable Construction Office Fast Assembly Prefab Containers
Ⅰ. Product Introduction
As common portable construction office fast assembly prefab containers, it is far more durable and reliable than the traditional house. Here are the fetures:
1. Container house is very convenient to transportfrom one place to another. Especially for some construction sites, because their construction sites are often changed, the houses can be simply transported by forklift or crane.
2. Container house has a relatively strong firmness, the container is mainly made of steel structure, so they have better ability to withstand earthquakes and deformation.
3. It has a very good sealing ability, and there is no leakage problem when it rains.

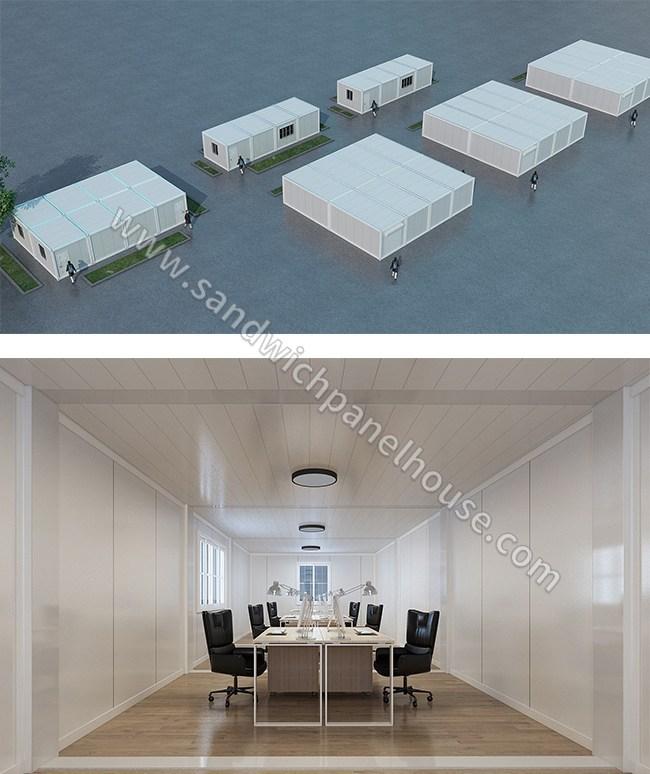

Ⅱ. Design Show
| Item | Specification | ||
| Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling) | |||
| 1 | Roof Plate |
Roof tile is 0.5 mm thickness steel sheet; Pre-coated and color coated; |
|
| 2 | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube; | |
| 3 | Roof Insulation | 50 mm glass wool insulation material; | |
| 4 | Ceiling |
Ceiling is 0.4 mm thickness shaped steel plate; Pre-coated and color coated; |
|
| Part 2: Steel Frame (Corner post + column + beam + bolt) | |||
| 1 | Corner Connection Part |
Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished; Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); |
|
| 2 | Column |
Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
Size: 160* 160* 2480mm; |
|
| 3 | Top and Floor Long Beam |
Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; Size 1: 3680* 60* 160 mm; Size 2: 5680* 60* 160 mm; |
|
| 4 | Top & Floor Short Beam |
Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; Size 1: 2680* 60* 160 mm; |
|
| 5 | Bolt |
High strength galvanized steel bolt; To fix the Corner Connection Part and beam, Corner Connection Part and column; |
|
| Part 3: Floor System (Floor structure + floor panel + floor leather)+Wall Panel | |||
| 1 | Floor Purlin | Material: 10pcs 40x80mm Galvanized Square tube +4pcs 40x80mm Galvanized Square tube +2pcs 30x50mm Galvanized Square tube; | |
| 2 | Floor Panel | 18 mm MGO board | |
| 3 | Wall Panel |
50 mm rock wool sandwich Panel; Outside color is light silver gray (0.38mm thickness steel ); |
|
| Part 4: Drainage system (Top drainage channel + drain pipe) | |||
| 1 | Water drain pipe and channel | Water drain pipe: Diameter: 50mm Length: 2700mm; Water drain channel: 90(W)x50(H)mm; |
|
| Part 5 : Door & window system | |||
| 1 | Standard Door | Size 1: 930mm*2000mm Material: sandwich panel/steel door; |
|
| 2 | Window | Size 1: 930mm*1200mm Plastic steel single glass sliding window (including screens) With 0.35mm Double glass and strength pvc window frame/Glass Window; Window rail is smooth. |
|
| Part 6: Electricity System | |||
| 1 | Lamp | Type: LED energy saving lamp; Power: 24W Include: Two sockets and one switch; Note: The socket will be equipped according to the local standard. Includes: electric wire and conduit; Use: The electric wire will be in the conduit and go through the wall panel for concealed installation. |
|
| 2 | Socket & Switch | ||
| 3 | Electric Wire | ||
| 4 | Air Circuit Breaker | ||
| Part 7: Internal Decoration | |||
| 1 | Internal Corner | Material: PVC; Includes: Vertical internal corner and horizontal internal corner. |
|
| 2 | Steel Plate for Internal Connection | Material: Stainless Steel; Used on the joints between two bottom frames when different containers connected with each other. |
|
| 3 | Floor Leather | Material: PVC Thickness: 1.6mm Features: moisture proof; wear resisting; anti-corrosive and thermal insulation. |
|
| Part 8: Installation Accessories | |||
| 1 | Sealant | Used for the joints of doors and windows for better waterproof. | |
| 2 | Structure Adhesive | Used for the reinforcement and seal of the steel frames. | |
| 3 | Screws | Include: rivets, bolts, drill tail screw; | |

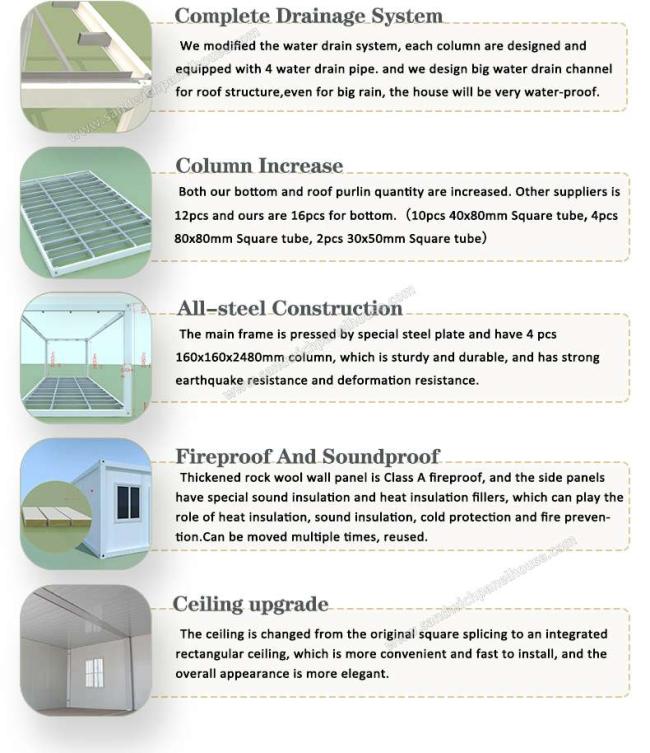

Ⅲ. Our Advantages

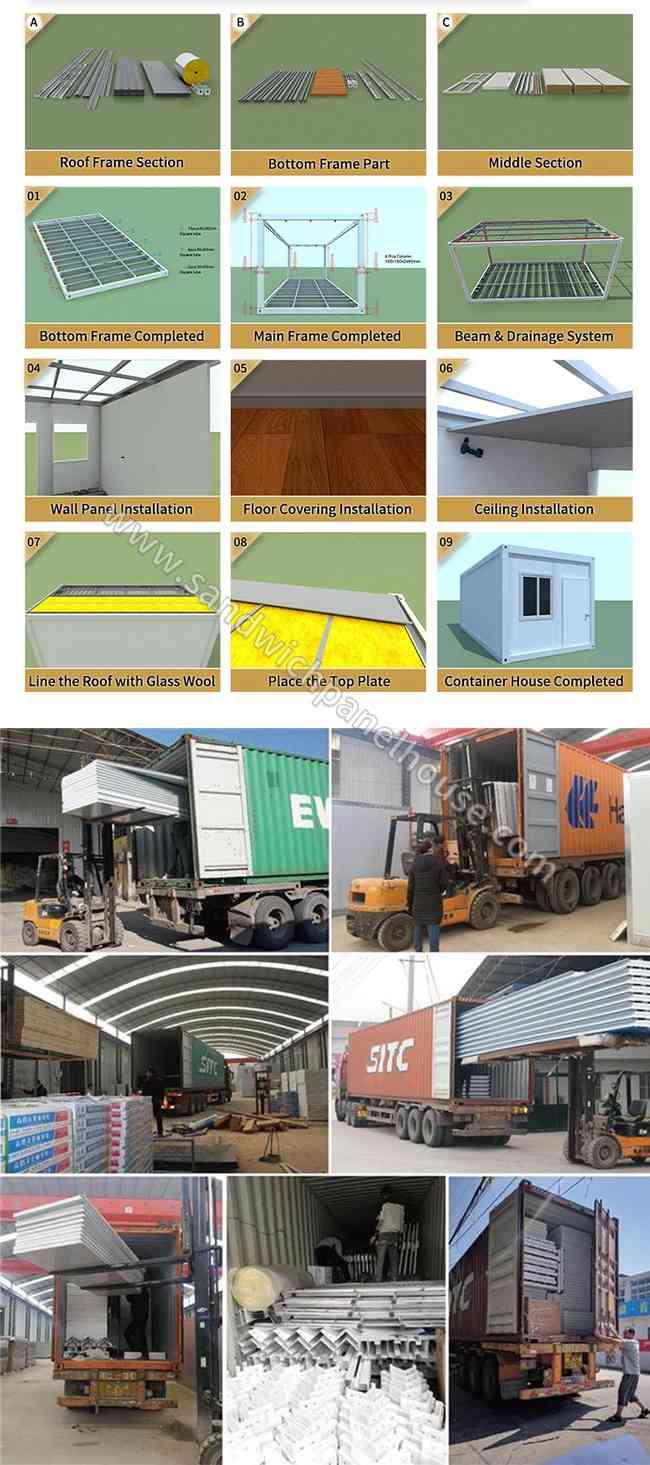

Ⅳ. Installation Steps and Delivery
