Modular Design Portable Container House Office Affordable Movable Storage Use
Portable Container Office With Moveable Storage House Modular Design And Affordable For Sale
I. Product Introduction
The portable container house can be easily transformed into various living spaces. They can be connected or stacked to form different building modules. They not only make effective use of space but also save human and material resources.
Because the container houses are made of sandwich panels and light steel structure, it has many features:
1). Energy conservation and environmental protection
2). Economical, practical &durable
3). Shorten the project time
4). Easy &quick installation
5). Lightweight
II. Product description
This sandwich panel container office house is designed very beautifully with luxury appearance.
It is more suitable for sites such as oil sites, drilling companies, and factories' offices.
It is a two-story container office with a storage room on the ground floor. The office room is on the first floor with a public working area to fit 6 people, and a toilet room. There is also much space for cabinets Outside there left a 18 square meters flatform for people to enjoy themselves.

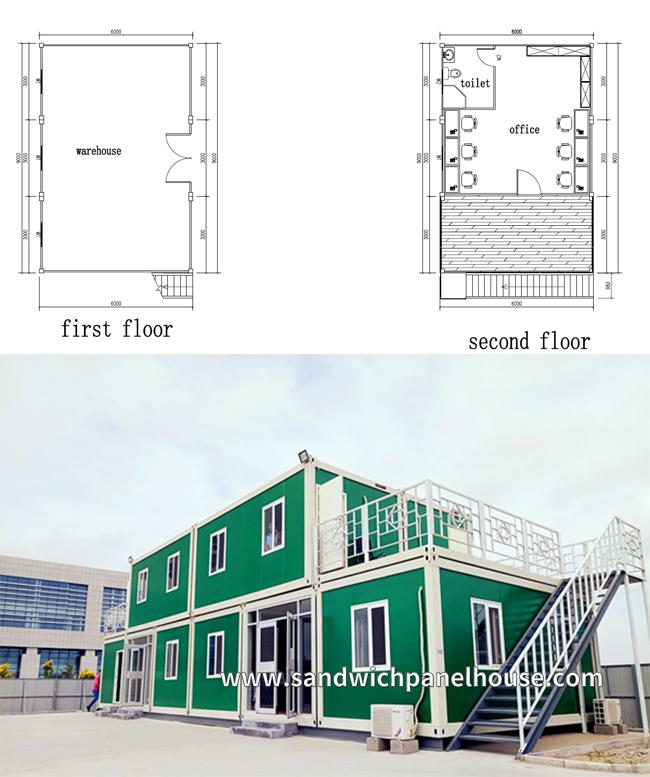

Layout information
| 1 | Building area | 108 sqm |
| 2 | Land area | 54 sqm |
| 3 | Capacity | 6 people |

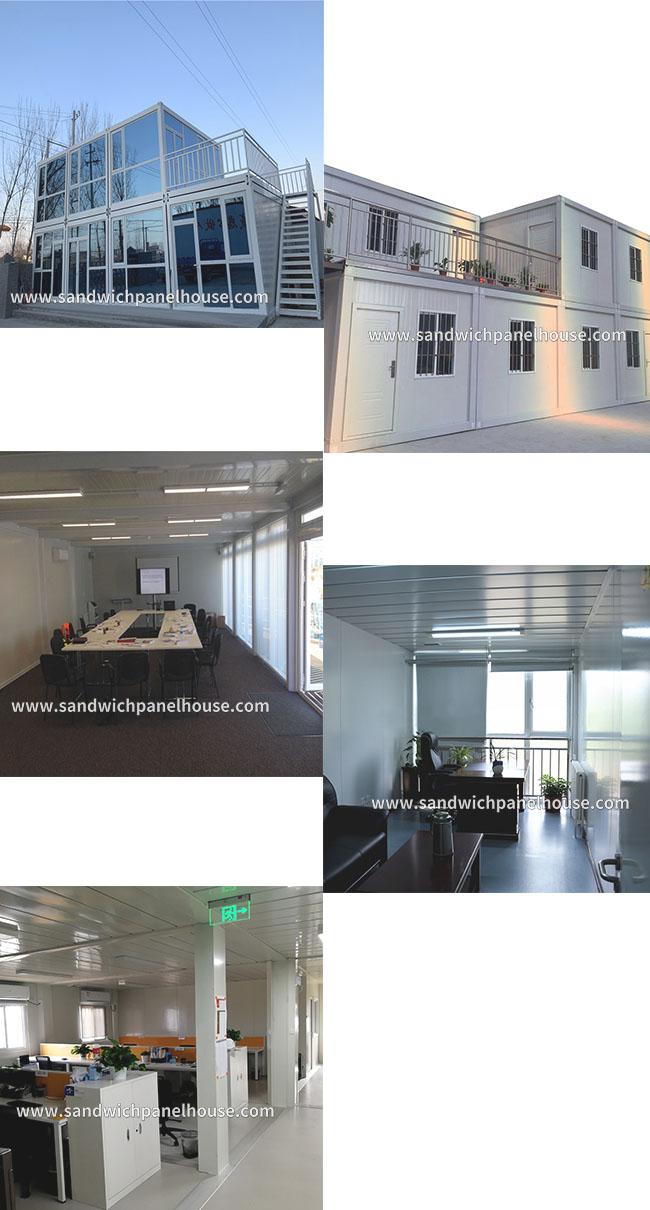

III. Product show
III. Main Specification
| Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling) | ||
| I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; |
| Strong and corrosion resistance. | ||
| ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube; |
| Firm, strong corrosion resistance and has a long service life. | ||
| Part 2: Steel Frame (Corner post + column + beam + bolt) | ||
| I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished; |
| Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | ||
| Feather: Safe, strong, and corrosion resistance. | ||
| The color is glossy and can last for a long time. | ||
| ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; |
| Size: 160* 160* 2480mm; | ||
| Feather: Safe, strong, and corrosion resistance. | ||
| The color is glossy and can last for a long time. | ||
| iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; |
| Size 1: 3680* 60* 160 mm; | ||
| Size 2: 5680* 60* 160 mm; | ||
| Feather: Safe, strong, and corrosion resistance. The color is glossy and can last for a long time. | ||
| iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; |
| Size 1: 2680* 60* 160 mm; | ||
| Feather: Safe, strong, and corrosion resistance. | ||
| The color is glossy and can last for a long time. | ||

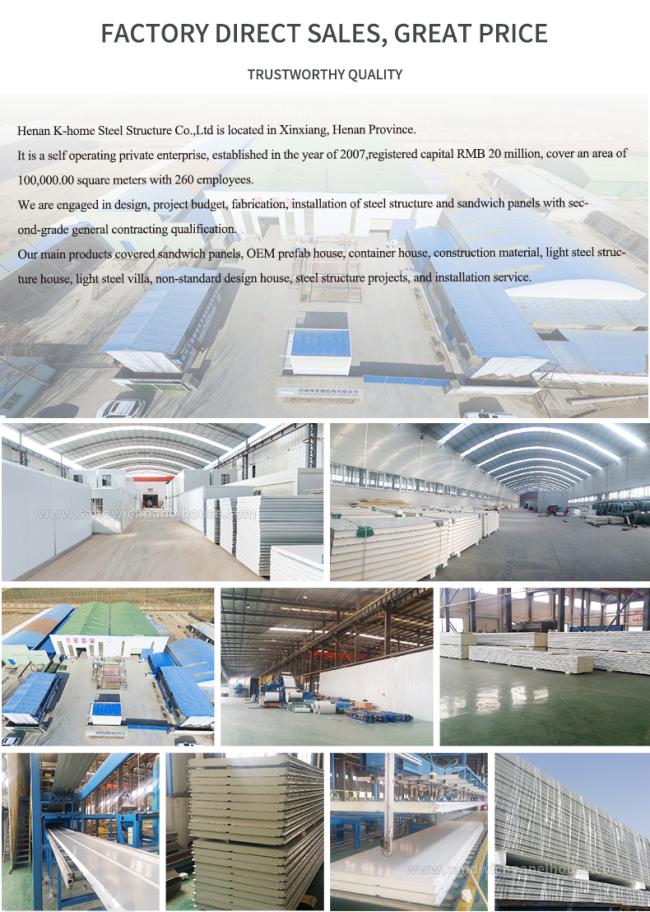

IV. Factory show
