Modular Work Camp Flat Pack Accommodation Containers
Modular Work Camp Flat Pack Accommodation Containers
I. Product Introduction
Henan K-Home Steel Structure Co., Ltd is focused on building a practical and comfortable prefabricated house, especially when you start the reconstruction process, recovery after any disaster.
In any disaster, keeping people away from harm is always a priority, but not at the cost of an efficient and effective life. We create shelters that meet space and customer needs. We can design a sleeping area that can accommodate up to three vertical double beds per bed, or just one can provide customers with a variety of options to meet their needs.
These houses are built up with steel structure and sandwich panels, which can initially be used as emergency shelters and then converted into houses, schools, hospitals, and/or offices in the future.
These containers can also be stacked on top of each other to reduce the space they occupy and are suitable for high dancing living areas.
We can produce 420 units every 30 days.

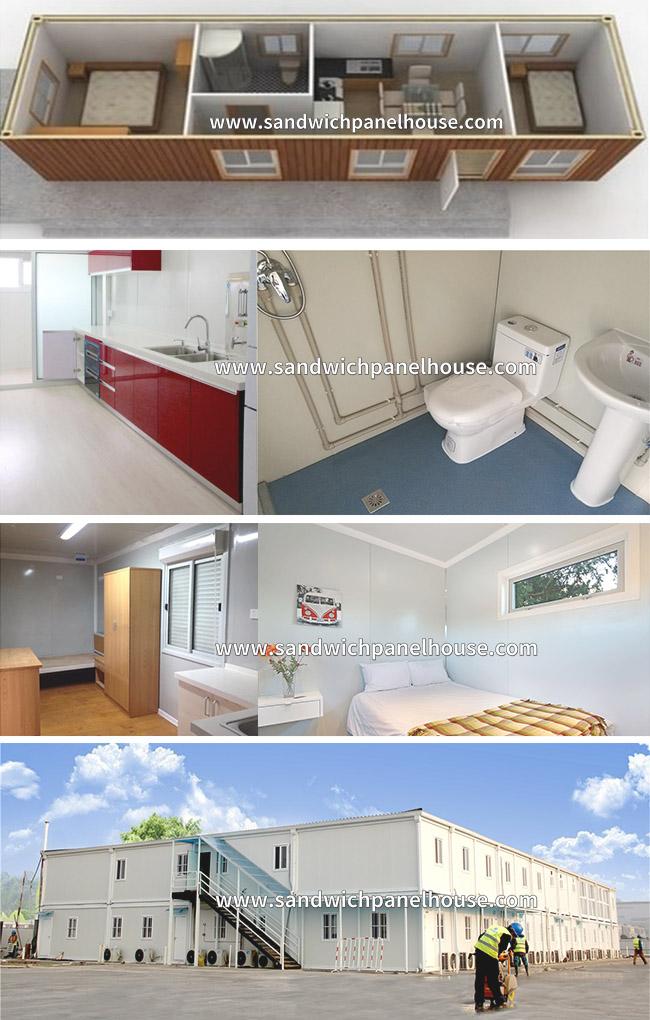

Layout description
| 1 | Each unit area. | 36 sqm |
| 2 | Total capacity | 2-4 people |
| 3 | Kitchen and dining room | 1 |
| 4 | Washing room | 1 |
| 5 | Bedroom | 2 |
| 6 | Living room | 1 |
III. Main material
| Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling) | ||
| I | Roof Plate | Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated; |
| Strong and corrosion resistance. | ||
| ii | Roof Purlin | 1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube; |
| Firm, strong corrosion resistance and has a long service life. | ||
| Part 2: Steel Frame (Corner post + column + beam + bolt) | ||
| I | Corner Connection Part | Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished; |
| Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top); | ||
| Feather: Safe, strong, and corrosion resistance. | ||
| The color is glossy and can last for a long time. | ||
| ii | Column | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; |
| Size: 160* 160* 2480mm; | ||
| Feather: Safe, strong, and corrosion resistance. | ||
| The color is glossy and can last for a long time. | ||
| iii | Top and Floor Long Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; |
| Size 1: 3680* 60* 160 mm; | ||
| Size 2: 5680* 60* 160 mm; | ||
| Feather: Safe, strong, and corrosion resistance. The color is glossy and can last for a long time. | ||
| iv | Top & Floor Short Beam | Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished; |
| Size 1: 2680* 60* 160 mm; | ||
| Feather: Safe, strong, and corrosion resistance. | ||
| The color is glossy and can last for a long time. | ||
IV. About us
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
